Part #: CJ1W-CLK23 Manufactured by: Omron

CJ1W-CLK23 | Omron PLC Module Automation

Regular price
$239.00
Sale price
$239.00
Regular price
Never Used Surplus
2 in Stock
Product Overview
The Omron CJ1W-CLK23 module is specifically engineered as a controller link unit tailored for seamless integration within ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: CJ1W-CLK23
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Omron
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
CJ1W-CLK23 | Omron PLC Module Automation
    CJ1W-CLK23 | Omron PLC Module Automation
CJ1W-CLK23 | Omron PLC Module Automation
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: CJ1W-CLK23

Description / Specifications

Description

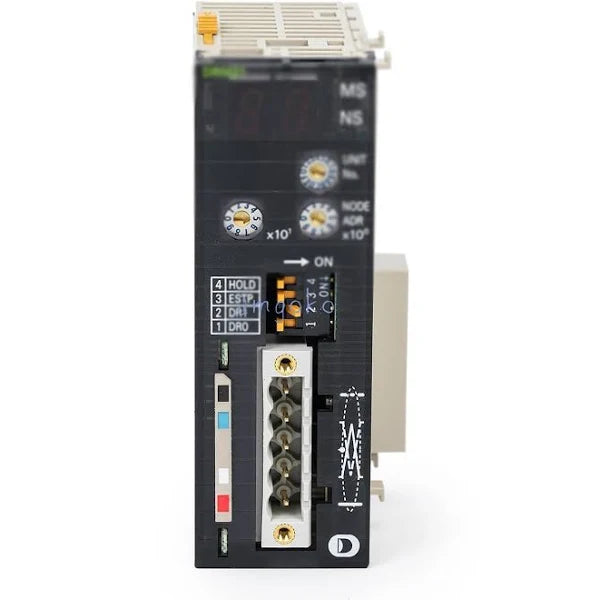

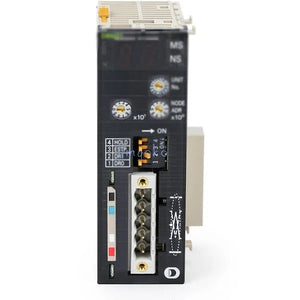

The CJ1W-CLK23 module, manufactured by Omron, is a controller link unit tailored for integration with CJ series PLCs. It interfaces via the CJ I/O Bus for expansion and is fully compatible with CPU Bus units. Equipped with a communication port utilizing the Controller Link protocol, it sustains a maximum data rate of 2000 kBit/s across distances of up to 500 meters. With dimensions measuring 90 mm (height) x 31 mm (width) x 82 mm (depth) and weighing just 110 g, it offers a compact and lightweight communication solution, ideal for space-constrained environments.


Technical Specifications

Part #

CJ1W-CLK23

Manufacturer

OMRON

Category

PLCs/Machine Control

Subcategory

PLC Module/Rack Type

Communications method

N:N token-bus method

Code

Manchester code

Modulation

Baseband code

Synchronization

Flag synchronization (conforms to HDLC frames)

Transmission path format

Multidrop method (bus type)

Maximum distance between nodes

Not specified. (Maximum transmission distance must be satisfied for the entire system.)

Medium

Specified shielded twist-pair cable

Medium

Two signal wires, one shield

Node connection method

PLC: Connection to terminal block

Node connection method

Computer: Connection using special (supplied) connector

Maximum number of nodes

32 or 62 nodes *2 *3

Applicable Programming Devices

CX-Integrator in CX-One, CX-Net in CX-Programmer *3, and Programming Console

Communications functions

Data links and message service





Information About CJ1W-CLK23

The Omron CJ1W-CLK23 module is engineered as a controller link unit tailored for integration within CJ series Programmable Logic Controllers (PLCs). It harnesses the CJ I/O Bus for expansion purposes and exhibits compatibility with CPU Bus units. The module is characterized by a communication port that operates using the Controller Link protocol, boasting a maximum data transmission rate of 2000 kBit/s across distances reaching up to 500 meters.

Featuring compact dimensions measuring 90 mm in height, 31 mm in width, and 82 mm in depth, alongside a modest weight of 110 g, the CJ1W-CLK23 module represents a lightweight and space-efficient communication solution.



Manufacturer information

OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
