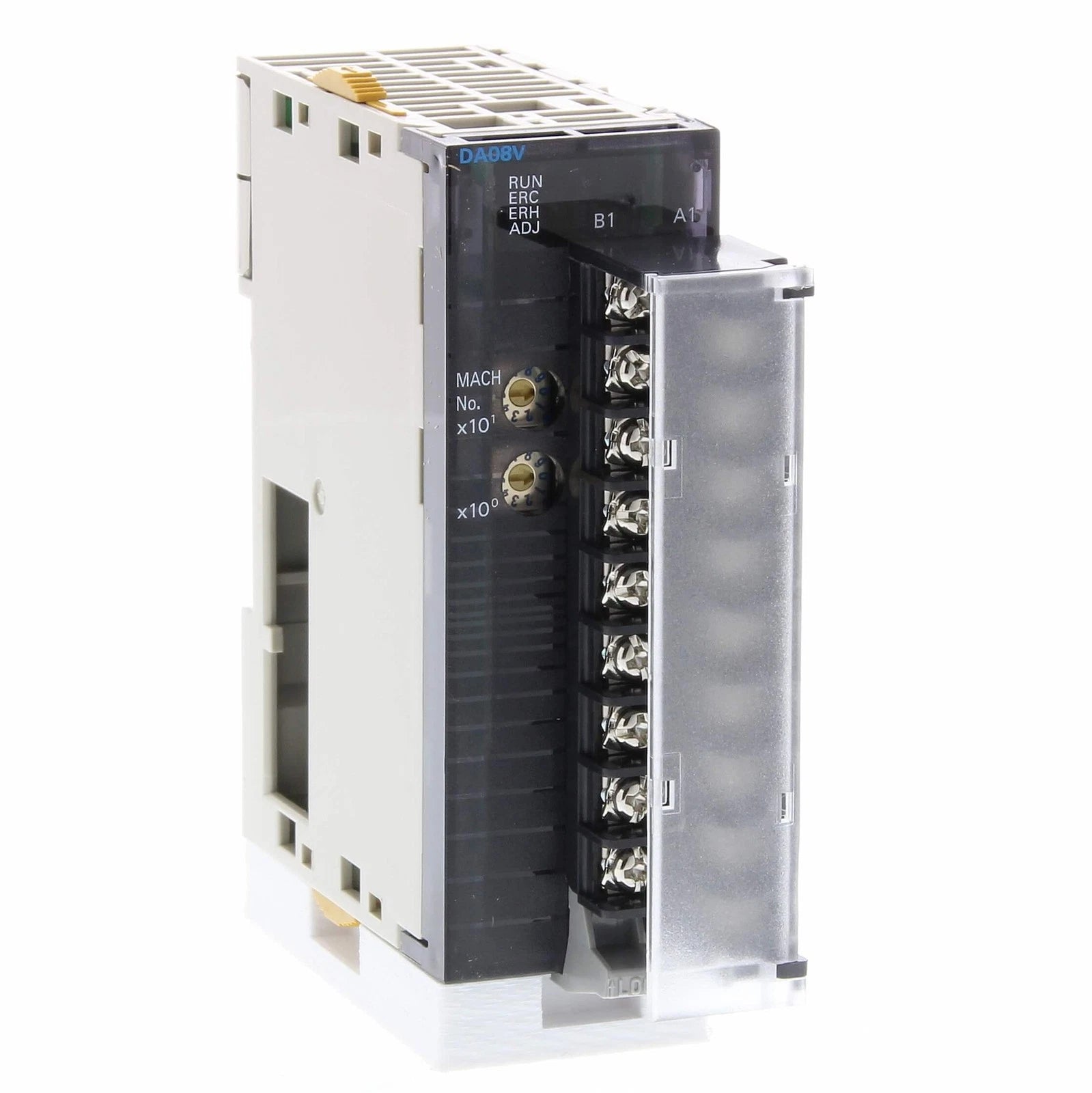

CJ1W-DA08V | Omron CJ1W Series Analog Output Module, 8-Channel Voltage
- Regular price
- $232.00
- Sale price
- $232.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CJ1W-DA08V
Description
The Omron CJ1W-DA08V is an analog output module designed for precise voltage signal output within CJ1 Series PLC systems. It provides eight independently configurable analog voltage outputs with high-resolution digital-to-analog conversion. This module is intended for industrial control applications requiring accurate analog signal generation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC I/O Modules |
| Part Number | CJ1W-DA08V |
| Subcategory | Analog Output Modules |
| PLC Series Compatibility | CJ1 |
| Output Type | Analog Voltage |
| Number of Outputs | 8 |
| Output Signal Ranges | 1–5 V, 0–5 V, 0–10 V, −10 to +10 V |
| Resolution | 12 Bit (1:4000) |
| Conversion Time | 1 ms per point |
| Output Current Rating | 2.4 mA |
| I/O Connection Type | Screw Terminal |
| Mounting Style | DIN Rail |
| Power Consumption | 140 mA max at 5 VDC |
| Weight | 0.31 lb |
Information About CJ1W-DA08V
The CJ1W-DA08V is part of Omron’s CJ1W series I/O modules, engineered to expand analog output capability in CJ1 PLC architectures. It supports multiple voltage ranges, including bipolar and unipolar signals, allowing flexible integration with field devices such as actuators, drives, and control instruments. The module utilizes a high-speed D/A conversion process with 12-bit resolution to ensure accurate and stable output signals. Designed for DIN rail mounting with screw terminal connections, it is suitable for installation in industrial control panels.
Key Features:
- Omron CJ1W Series Module: Designed for seamless integration with CJ1 PLC systems
- Eight Analog Voltage Outputs: Supports multiple simultaneous control signals
- Multiple Output Ranges: Selectable 1–5 V, 0–5 V, 0–10 V, and −10 to +10 V ranges
- 12-Bit Resolution: Enables fine signal accuracy with 1:4000 resolution
- High-Speed D/A Conversion: Delivers fast analog response for dynamic control
- Screw Terminal Wiring: Provides secure and reliable field connections
- DIN Rail Mountable Design: Allows efficient installation in control cabinets
The CJ1W-DA08V delivers the reliability and precision required for industrial analog output and process control applications.
