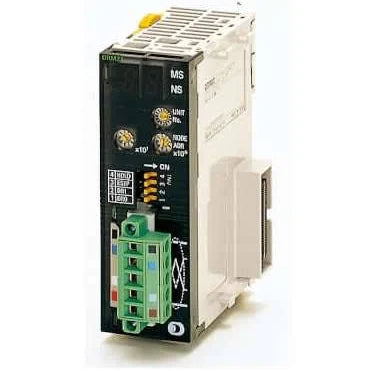

CJ1W-DRM21 | Omron | CJ-series DeviceNet Unit/Features
- Regular price
- $285.00
- Sale price
- $285.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CJ1W-DRM21
Description
The CJ1W-DRM21 is a component of the CJ-series DeviceNet Unit, featuring the ability to control up to 32,000 points (2,000 words) per master with a high level of data simultaneity. This unit offers the unique capability of functioning as both a master and a slave concurrently.
Equipped with settings and monitoring functions, the CJ1W-DRM21 aims to enhance design and startup efficiency. When used in combination with a Configurator, users can achieve maximum performance from this device.
Furthermore, the CJ1W-DRM21 supports the upload and download of master and slave settings via memory cards. This feature facilitates effective debugging and simplifies the setup process, contributing to overall system efficiency.
Technical Specifications
|
Part # |
CJ1W-DRM21 |
|
Manufacturer |
OMRON |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack |
|
Communications protocol |
DeviceNet |
|
Connection methods |
Multi-drop and T-branch connections |
|
Baud rate |
500 Kbps, 250 Kbps, or 125 Kbps |
|
Communications media |
Special 5-wire cables, Special 4-wire flat cables |
|
Baud rate (500 kbps) |
Network length: 100 m max., Branch line length: 6 m max., Total branch line length: 39 m max. |
|
Baud rate (250 kbps) |
Network length: 250 m max., Branch line length: 6 m max., Total branch line length: 78 m max. |
|
Baud rate (125 kbps) |
Network length: 500 m max., Branch line length: 6 m max., Total branch line length: 156 m max. |
|
Baud rate (500 kbps) |
Network length: 75 m max., Branch line length: 6 m max., Total branch line length: 35 m max. |
|
Baud rate (250 kbps) |
Network length: 150 m max., Branch line length: 6 m max., Total branch line length: 48 m max. |
|
Baud rate (125 kbps) |
Network length: 265 m max., Branch line length: 6 m max., Total branch line length: 135 m max. |
|
Communications power supply |
24 V DC supplied externally |
|
Max. number of nodes |
64 nodes (including Masters, Slaves, and Configurator) |
Information About CJ1W-DRM21
The CJ1W-DRM21 CJ-series DeviceNet unit is designed to facilitate seamless integration and efficient communication within industrial automation systems. With its advanced features and capabilities, it serves as a cornerstone for streamlined operations and enhanced control.
This unit enables the control of up to 32,000 points (2,000 words) per master, ensuring a high level of data simultaneity and responsiveness. It boasts the unique ability to function as both a master and a slave simultaneously, offering unparalleled flexibility in system configuration and operation.
Equipped with comprehensive settings and monitoring functions, the CJ1W-DRM21 unit is engineered to optimize design and startup processes, enhancing overall efficiency and performance. By leveraging these features in combination with a Configurator, users can achieve maximum productivity and operational reliability.
Furthermore, the unit facilitates seamless uploading and downloading of master and slave settings using memory cards. This feature streamlines the debugging and setup procedures, enabling quick and effective configuration of the automation system.
The CJ1W-DRM21 unit is engineered to support the DeviceNet communication protocol, ensuring robust and reliable data transmission across industrial networks. With support for multi-drop and T-branch connections, it offers flexibility in network configuration while maintaining optimal communication speeds.
For power supply, the unit requires a 24V DC external source, ensuring consistent and reliable operation in industrial environments. With a maximum capacity of 64 nodes, including Masters, Slaves, and Configurators, the unit provides scalability and versatility to meet the evolving needs of automation systems.
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
