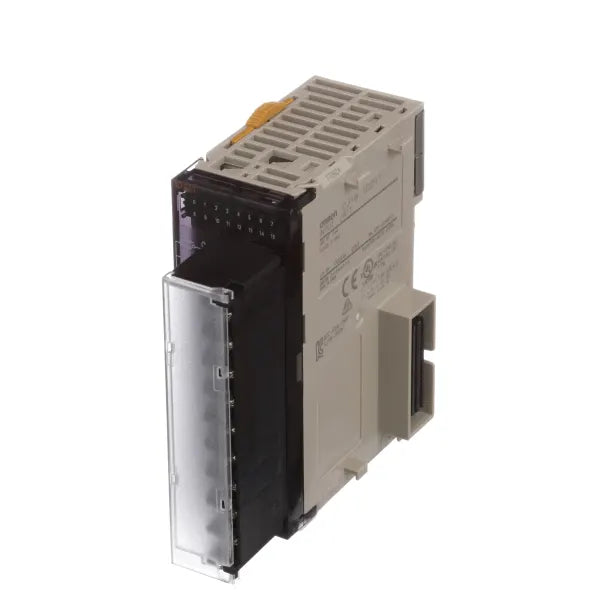

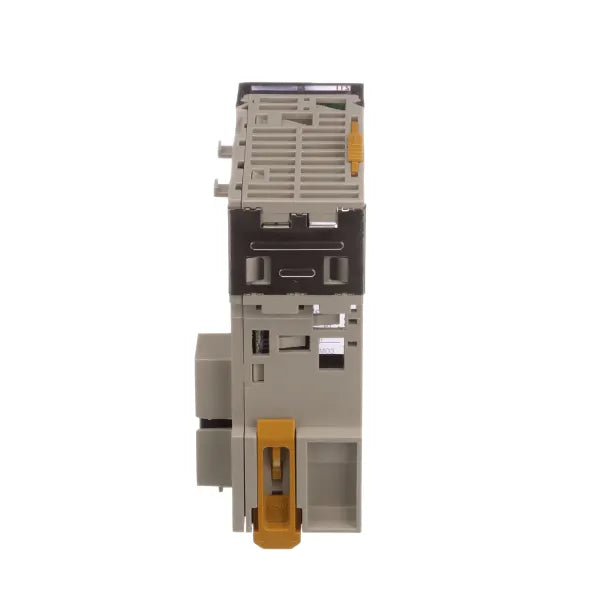

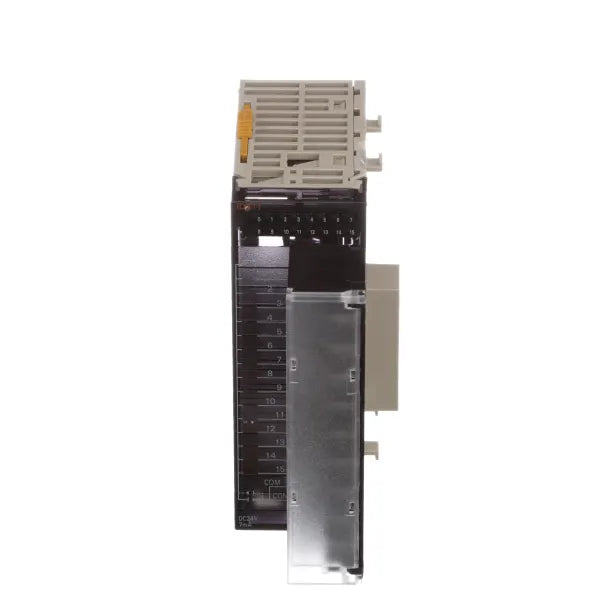

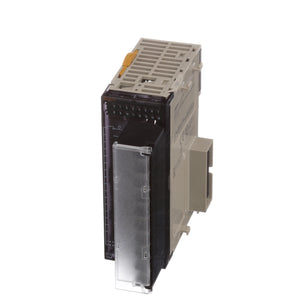

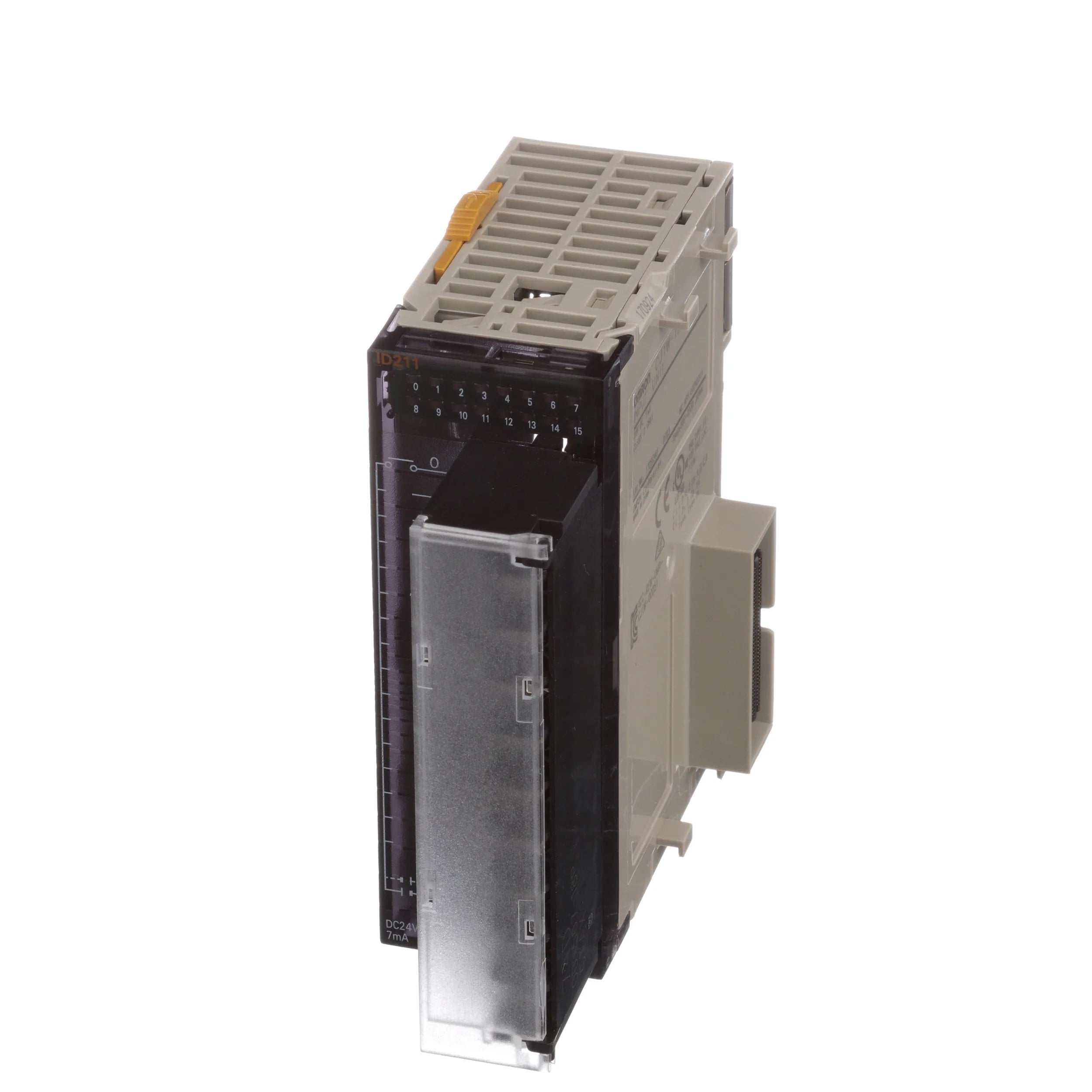

CJ1W-ID211 | Omron | Screw terminal
- Regular price
- $94.00
- Sale price
- $94.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CJ1W-ID211
Description
The Omron CJ1W-ID211 is a digital input unit designed to interface with industrial control systems. It features 16 inputs operating at 24 volts DC, utilizing screw terminals for secure electrical connections. This unit enables the integration of digital input signals into the control system, facilitating monitoring and control of various industrial processes. Its compact design and reliable construction make it suitable for use in diverse industrial environments.
Technical Specifications
|
Condition |
New / Never Used Surplus |
|
Part # |
CJ1W-ID211 |
|
Manufacturer |
OMRON |
|
Category |
PLCs/Machine Control |
|
Subcategory |
VDC Logic I/O Module |
|
I/O System |
CJ I/O Bus |
|
Expansion Unit Type |
Basic I/O Unit |
|
Type of Module |
Digital I/O |
|
Number of Digital Inputs |
16 |
|
Digital Input Type |
PNP/NPN |
|
Permitted Voltage at Input |
20.4-26.4 V |
|
OFF/ON Delay |
0-32 ms |
|
Number of Digital Outputs |
0 |
|
Digital Output Type |
None |
|
Output Current |
0 A |
|
I/O Connection Type |
Screw |
|
Number of I/O Connectors |
1 |
|
Number of IOV (V+) Terminals |
0 |
|
Number of IOG (V-) Terminals |
0 |
|
Number of COM Terminals |
2 |
|
Product Height (unpacked) |
90 mm |
|
Product Width (unpacked) |
31 mm |
|
Product Depth (unpacked) |
89 mm |
|
Product Weight (unpacked) |
60 g |
Information About CJ1W-ID211
The Omron CJ1W-ID211 is a digital input unit engineered for industrial control systems. It features 16 input channels designed to accommodate signals at 24 volts DC. The unit utilizes screw terminals for secure electrical connections.
As a component of the CJ I/O Bus system, the CJ1W-ID211 operates as a basic I/O unit within programmable logic controllers (PLCs) and machine control setups. Its primary function is to interface with external devices by receiving digital input signals and transmitting them to the control system for processing.
The digital inputs of the CJ1W-ID211 support a voltage range between 20.4 volts and 26.4 volts, ensuring compatibility with a variety of industrial equipment and sensors. The unit is configured to handle PNP/NPN signal types commonly found in industrial environments.
The CJ1W-ID211 offers flexibility in signal processing with programmable OFF/ON delay settings ranging from 0 to 32 milliseconds. This feature allows for precise control and timing of input signals, optimizing system performance and responsiveness.
Notably, the unit does not incorporate digital output channels, making it suitable for applications focused solely on input signal acquisition and processing. It does not provide output current capabilities, and its outputs are not short-circuit protected.

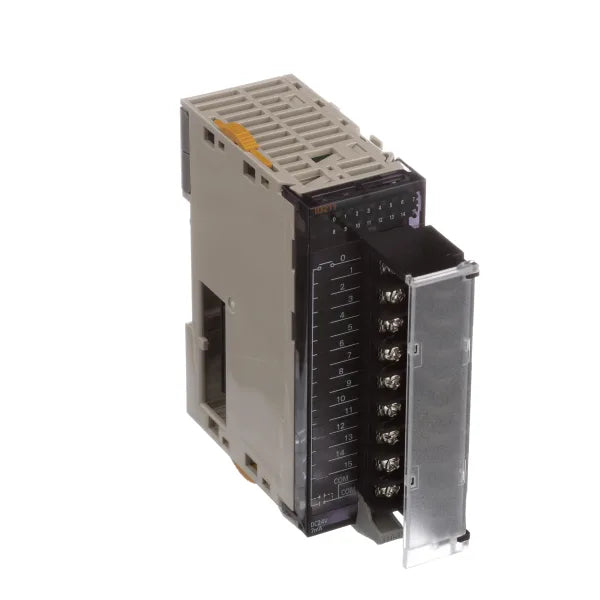

The unit's I/O connection type is screw terminal, providing a reliable and secure method for connecting field devices and sensors. It features one I/O connector, facilitating straightforward integration into control systems. However, it does not include detachable I/O connectors.
The CJ1W-ID211 is not explicitly designated for safety functions and lacks IOV (V+) and IOG (V-) terminals. Instead, it offers two COM terminals for common connections within the system.
Physically, the unit possesses dimensions of 90 mm in height, 31 mm in width, and 89 mm in depth. Its unpacked weight is approximately 60 grams, making it lightweight and suitable for integration into compact control panels and industrial enclosures.
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
