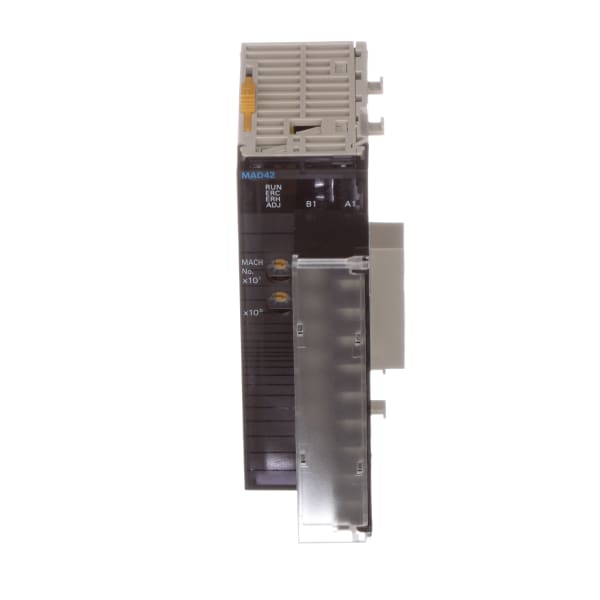

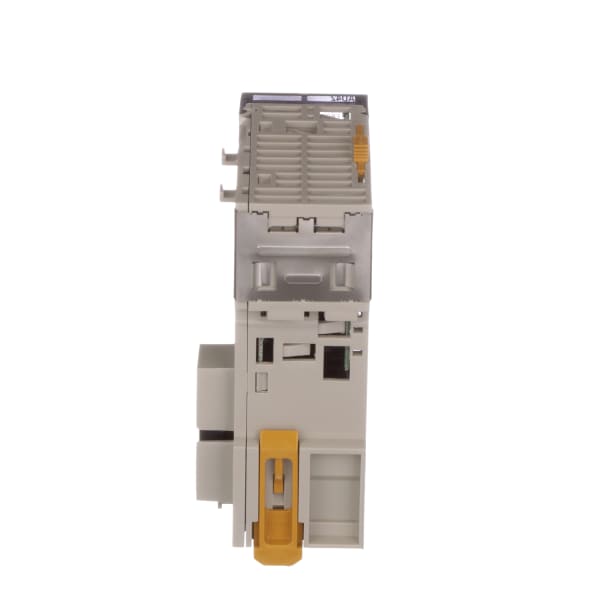

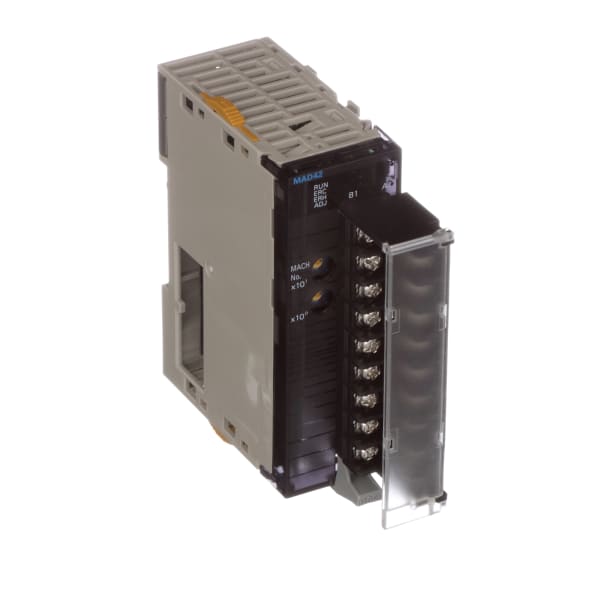

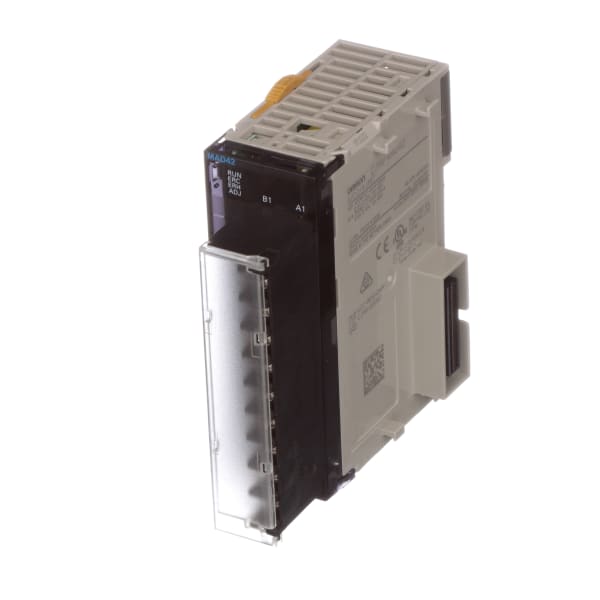

CJ1W-MAD42 | Omron Analog I/O Unit 4 Inputs
- Regular price
- $297.00
- Sale price
- $297.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CJ1W-MAD42
Description
The CJ1W-MAD42 is an Omron Analog I/O Unit designed for the CJ series, offering 4 analog inputs and 2 analog outputs. It provides photocoupler isolation for secure signal transmission and is ideal for voltage and current measurement in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs and Accessories |
| Part Number |
CJ1W-MAD42 |
| Subcategory | PLC Expansion Modules |
| Module Type | Analog I/O Unit |
| Unit Type | CJ Series Special I/O Unit |
| Isolation | Photocoupler Isolation Between I/O and Internal Signals |
| External Connection Terminal | 18-Point Detachable Terminal Block (M3 screws) |
| Current Consumption | 580 mA max. at 5 V DC |
| Input Signals | -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Maximum Rated Input (for 1 Point) | Voltage Input: ±15 V, Current Input: ±30 mA |
| Number of Analog Inputs | 4 |
| Dimensions (W × H × D) | 31 × 90 × 65 mm |
Information About CJ1W-MAD42
The CJ1W-MAD42 is a specialized analog I/O unit from Omron’s CJ series, supporting 4 analog inputs and 2 outputs, making it highly efficient for processing voltage and current signals. With photocoupler isolation between the I/O and internal signals, it ensures reliable operation and signal integrity. The module features an 18-point detachable terminal block with M3 screws for easy external connections. It operates with a current consumption of 580 mA max. at 5 V DC, and its compact design (31 × 90 × 65 mm) makes it suitable for mounting on a DIN rail in various industrial environments.
Key Features:
- Inputs/Outputs: 4 analog inputs and 2 analog outputs for versatile signal processing
- Isolation: Photocoupler isolation between I/O and internal signals for enhanced reliability
- External Connections: 18-point detachable terminal block with M3 screws for easy wiring
- Current Consumption: 580 mA max. at 5 V DC for efficient power usage
- Mounting: Designed for DIN rail mounting for space-saving installation
The CJ1W-MAD42 unit offers reliable and efficient analog signal processing, ensuring smooth integration into industrial control systems. Its compact design and versatile features make it a valuable asset for various automation applications.
