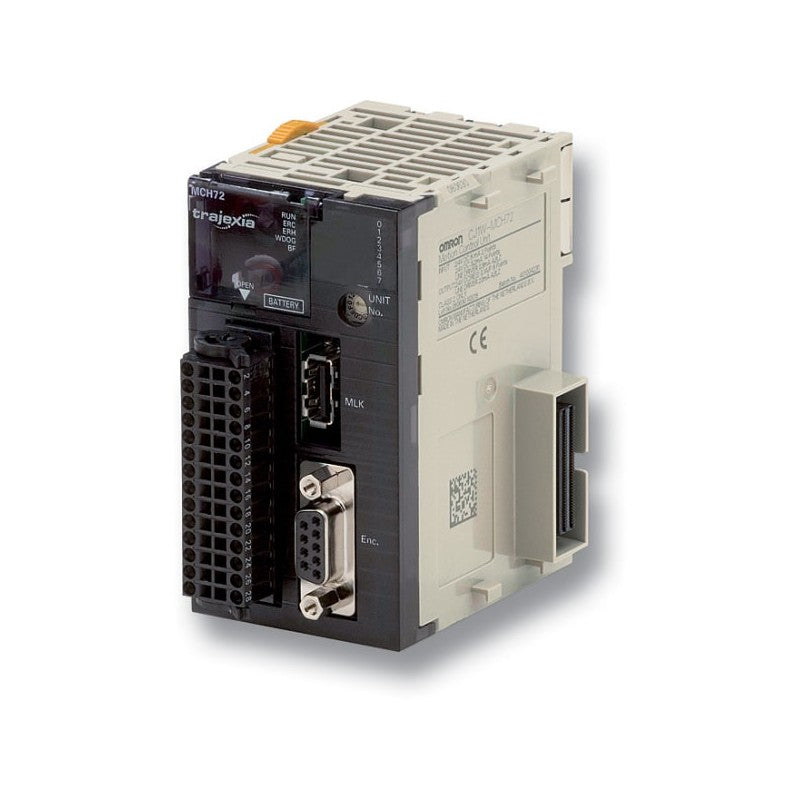

CJ1W-MCH72 | Omron Motion Control Module
Part #:
CJ1W-MCH72
Manufactured by:
Omron
- Regular price
- $5,097.00
- Sale price
- $5,097.00
- Regular price
-
6 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Omron CJ1W-MCH72 is a MECHATROLINK-II motion control unit for CJ-series PLCs, designed for high-speed multi-axis motio...
Read more
We accept:
Couldn't load pickup availability
Do you need help?
Call our Sales Manager
Write to us now
IQElectro 2-Year Warranty
Warranty for Product #: CJ1W-MCH72
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N: CJ1W-MCH72
Description / Specifications
Description
The Omron CJ1W-MCH72 is a high-performance motion control module for CJ-series PLCs, designed for multi-axis servo system control. It supports advanced motion functions, including linear and circular interpolation, electronic cam, and synchronized control, making it ideal for precise and complex motion applications in industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category |
PLCs and Accessories
|
| Part Number | CJ1W-MCH72 |
| Subcategory |
PLC Expansion Modules
|
| Weight |
0.16 kgs
|
| Number of Inputs and Type |
16 - Digital
|
| Number of Outputs and Type |
8 - Solid State
|
| Mounting Type |
Backplane
|
| Termination Style |
D-Sub, Rectangular Connector
|
| Features |
32-Axis Control
|
| Operating Temperature |
0°C ~ 55°C
|
| Ingress Protection |
IP20
|
Information About CJ1W-MCH72
The Omron CJ1W-MCH72 is a MECHATROLINK-II motion control unit designed for the CJ-series Programmable Logic Controllers (PLCs), enabling advanced multi-axis motion control over a high-speed motion network.
Key Specifications:
- Model Number: CJ1W-MCH72
- Supported Axes: Up to 30 MECHATROLINK-II axes
- Cycle Time: Selectable 0.5 ms, 1 ms, 2 ms, or 4 ms
- Programming Language: BASIC-like motion language
- Built-in I/O: 16 digital inputs (2 with registration functionality), 8 digital outputs (1 with hardware position switch functionality)
- Encoder Interface: Supports line driver AB output, stepper pulse input/output, SSI (200 kHz), and EnDat (1 MHz) protocols
- MECHATROLINK-II Port: Controls devices like Accurax G5 and G-Series servo drives, MX2 inverters
- Transmission Speed: 10 Mbps
- Transmission Distance: Up to 50 meters without a repeater
- Weight: Approximately 180 g
Key Features:
- Advanced Motion Control: Supports position, speed, and torque control, along with complex functions such as cam control, interpolation, and axis synchronization.
- High-Speed Networking: Utilizes the MECHATROLINK-II motion bus for real-time communication with up to 30 servo drives or inverters over a single network.
- Flexible Programming: Employs a BASIC-like motion language, allowing for intuitive programming and control of motion tasks.
- Integrated I/O: Features built-in digital inputs and outputs, including high-speed registration inputs and hardware position switch outputs for precise control.
- Encoder Compatibility: Offers versatile encoder interfaces, accommodating various feedback devices for accurate position monitoring.
Applications:
- Industrial Automation: Ideal for coordinating multiple axes in manufacturing equipment, such as assembly lines and robotic systems.
- Packaging Machinery: Ensures synchronized motion control for packaging processes, enhancing efficiency and precision.
- Material Handling: Manages complex movements in conveyor systems and automated storage solutions.
- CNC Machining: Provides precise control over multi-axis machining operations, improving product quality and consistency.
Description / Specifications
Description
The Omron CJ1W-MCH72 is a high-performance motion control module for CJ-series PLCs, designed for multi-axis servo system control. It supports advanced motion functions, including linear and circular interpolation, electronic cam, and synchronized control, making it ideal for precise and complex motion applications in industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category |
PLCs and Accessories
|
| Part Number | CJ1W-MCH72 |
| Subcategory |
PLC Expansion Modules
|
| Weight |
0.16 kgs
|
| Number of Inputs and Type |
16 - Digital
|
| Number of Outputs and Type |
8 - Solid State
|
| Mounting Type |
Backplane
|
| Termination Style |
D-Sub, Rectangular Connector
|
| Features |
32-Axis Control
|
| Operating Temperature |
0°C ~ 55°C
|
| Ingress Protection |
IP20
|
Information About CJ1W-MCH72
The Omron CJ1W-MCH72 is a MECHATROLINK-II motion control unit designed for the CJ-series Programmable Logic Controllers (PLCs), enabling advanced multi-axis motion control over a high-speed motion network.
Key Specifications:
- Model Number: CJ1W-MCH72
- Supported Axes: Up to 30 MECHATROLINK-II axes
- Cycle Time: Selectable 0.5 ms, 1 ms, 2 ms, or 4 ms
- Programming Language: BASIC-like motion language
- Built-in I/O: 16 digital inputs (2 with registration functionality), 8 digital outputs (1 with hardware position switch functionality)
- Encoder Interface: Supports line driver AB output, stepper pulse input/output, SSI (200 kHz), and EnDat (1 MHz) protocols
- MECHATROLINK-II Port: Controls devices like Accurax G5 and G-Series servo drives, MX2 inverters
- Transmission Speed: 10 Mbps
- Transmission Distance: Up to 50 meters without a repeater
- Weight: Approximately 180 g
Key Features:
- Advanced Motion Control: Supports position, speed, and torque control, along with complex functions such as cam control, interpolation, and axis synchronization.
- High-Speed Networking: Utilizes the MECHATROLINK-II motion bus for real-time communication with up to 30 servo drives or inverters over a single network.
- Flexible Programming: Employs a BASIC-like motion language, allowing for intuitive programming and control of motion tasks.
- Integrated I/O: Features built-in digital inputs and outputs, including high-speed registration inputs and hardware position switch outputs for precise control.
- Encoder Compatibility: Offers versatile encoder interfaces, accommodating various feedback devices for accurate position monitoring.
Applications:
- Industrial Automation: Ideal for coordinating multiple axes in manufacturing equipment, such as assembly lines and robotic systems.
- Packaging Machinery: Ensures synchronized motion control for packaging processes, enhancing efficiency and precision.
- Material Handling: Manages complex movements in conveyor systems and automated storage solutions.
- CNC Machining: Provides precise control over multi-axis machining operations, improving product quality and consistency.
