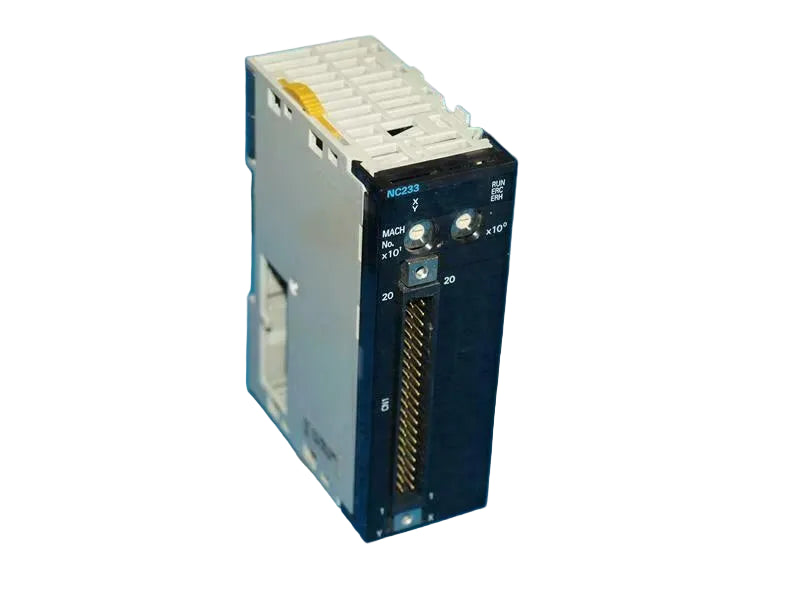

CJ1W-NC233 | Omron 2-Axis Motion Control PLC Module 500 kHz Line Driver
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CJ1W-NC233
Description
The Omron CJ1W-NC233 is a two-axis motion control module designed for precise positioning within CJ Series PLC systems. It provides high-speed pulse line driver outputs up to 500 kHz and supports linear interpolation and interrupt feeding functions. The unit mounts on a DIN rail and operates with a 24 VDC supply for integration into industrial automation panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron Automation and Safety |
| Category | PLCs/Machine Control |
| Part Number | CJ1W-NC233 |
| Subcategory | PLC Module/Rack |
| Series | CJ1W |
| Product Type | Motion Control Module |
| Number of Axes | 2 |
| Output Type | Pulse Line Driver |
| Maximum Output Frequency | 500 kHz |
| Encoder Input Type | Line Driver |
| Position Range (Max) | ±1,073,741,823 |
| Supply Voltage | 24 VDC / 5 VDC |
| Mounting Type | DIN Rail |
| Connector Type | Rectangular (Fujitsu) |
| Operating Temperature | 0°C to 55°C |
| Module Dimensions | 90 × 31 × 65 mm |
| Module Width | 31 mm |
| Approvals | CE, cULus |
| Weight | 0.221 lb |
Information About CJ1W-NC233
The CJ1W-NC233 is a positioning control unit from Omron’s CJ1W series, developed for multi-axis motion control in machine automation systems. It supports two axes of control and enables advanced motion functions including position control, speed control, linear interpolation, and interrupt feeding. The module utilizes a pulse line driver output interface and accepts line driver encoder input for accurate feedback processing. Designed for CJ Series PLC platforms, it mounts on a DIN rail and connects via a rectangular (Fujitsu-type) connector for reliable signal transmission.
Key Features:
-
Two-Axis Control: Manages simultaneous positioning for two independent motion axes.
-
Pulse Line Driver Output: Provides stable high-speed pulse transmission up to 500 kHz.
-
Linear Interpolation Function: Enables coordinated multi-axis movement for complex positioning tasks.
-
Interrupt Feeding Capability: Supports dynamic motion updates during operation.
-
Line Driver Encoder Input: Allows accurate position feedback integration.
-
24 VDC Supply Voltage: Compatible with standard industrial control power systems.
-
DIN Rail Mounting: Facilitates structured installation within control cabinets.
-
Wide Positioning Range: Supports position values up to ±1,073,741,823 counts.
The CJ1W-NC233 delivers the reliability and precision required for coordinated two-axis motion control in industrial machinery.
