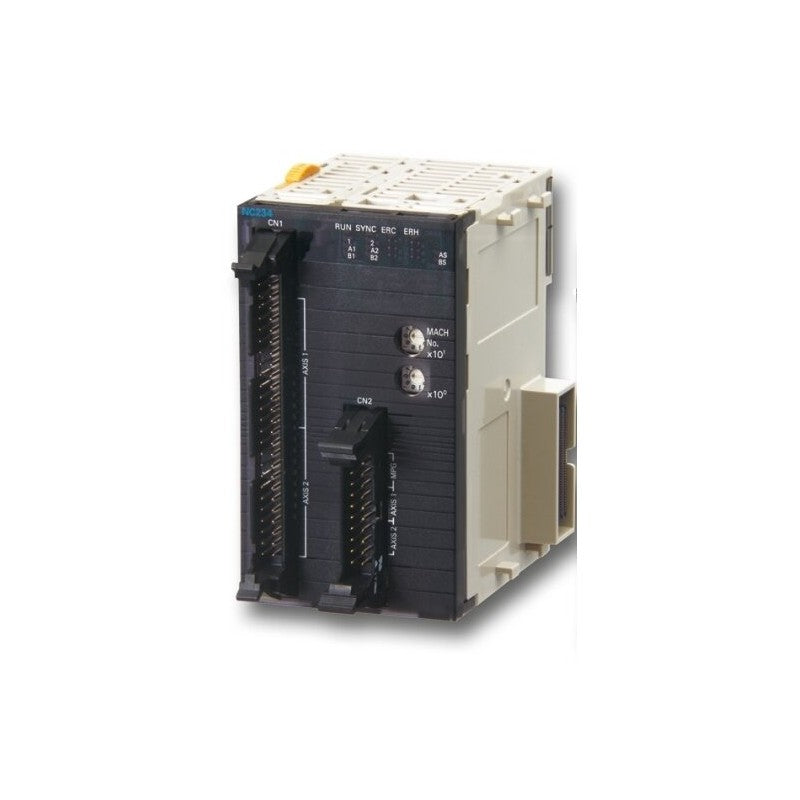

CJ1W-NC234 | Omron Position Control Unit
- Regular price
- $1,252.00
- Sale price
- $1,252.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CJ1W-NC234
Description
The Omron CJ1W-NC234 is a position control unit for the CJ-series PLCs, designed to control up to 4-axis of servo or stepper motors via pulse train output. It features high-speed positioning, interpolation functions, and easy integration with Omron automation systems, making it ideal for precise motion control in industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category |
Hydraulic Blocks and Subplates
|
| Part Number | CJ1W-NC234 |
| Subcategory |
Hydraulic Block I-O Adaptors & Subplates
|
| Weight |
0.17 kgs
|
| Voltage - Supply |
24VDC
|
| Mounting Type |
DIN Rail
|
| Termination Style |
Rectangular Connector
|
| Features |
2-Axis Control
|
| Operating Temperature |
0°C ~ 55°C
|
Information About CJ1W-NC234
The Omron CJ1W-NC234 is a high-speed position control unit designed for the CJ-series PLCs, offering precise control over two axes via line-driver pulse train outputs. It supports various motor types, including servomotors, pulse motors, linear motors, and direct drive motors, making it suitable for complex motion control applications.
Key Specifications:
- Control Axes: 2
- Output Type: Line-driver pulse train
- Maximum Pulse Output Frequency: 4 MHz
- Positioning Functions: Linear and circular interpolation, memory operation with up to 500 positioning sequences per axis, and synchronized control across multiple units
- Acceleration/Deceleration Control: Trapezoidal and S-curve profiles
- Feedback Options: Built-in high-speed counters for real-time position monitoring; supports absolute encoders with Omron G-series and G5-series servomotors
- Additional Features: Teaching function, torque limit output, electronic cam profiles, and manual pulse generator (MPG) operation
This module enhances the CJ-series PLCs' motion control capabilities, providing high-speed, high-precision positioning suitable for various industrial automation applications.
