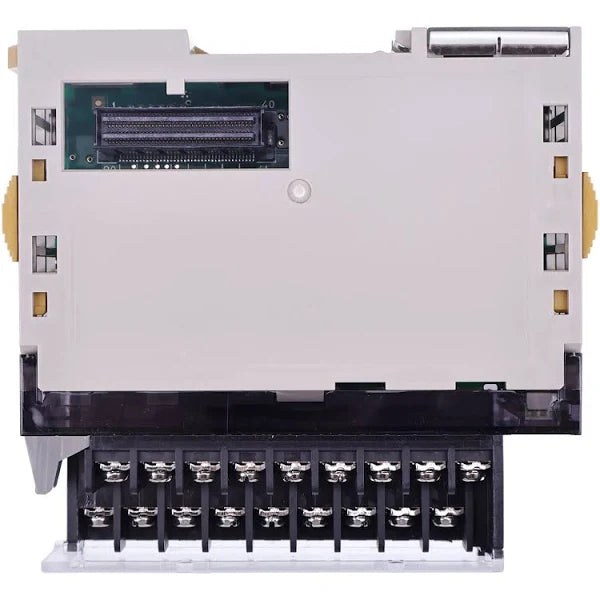

CJ1W-OD212 | Omron | Digital output unit
- Regular price
- $277.00
- Sale price
- $277.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CJ1W-OD212
Description
Technical Specifications
Specifications
|
Part # |
CJ1W-OD212 |
|
Manufacturer |
OMRON |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack |
|
I/O system |
CJ I/O Bus |
|
Expansion unit type |
Basic I/O Unit |
|
Type or module |
Digital I/O |
|
Number of digital inputs |
0 |
|
Digital input type |
None |
|
OFF/ON delay |
0-32ms |
|
Number of digital outputs |
16 |
|
Digital output type |
PNP |
|
Permitted voltage at output |
20.4-26.4 V |
|
Output current |
0.5 A |
|
Short circuit protected outputs |
Yes |
|
I/O connection type |
Screw |
|
Number of I/O connectors |
1 |
|
Detachable I/O connector |
No |
|
Suitable for safety functions |
No |
|
Number of IOV (V+) terminals |
1 |
|
Number of IOG (V-) terminals |
1 |
|
Number of COM terminals |
0 |
|
Product Height (unpacked) |
90mm |
|
Product Width (unpacked) |
31mm |
|
Product Depth (unpacked) |
89mm |
|
Product Weight (unpacked) |
64g |
Information About CJ1W-OD212
The Omron Automation and Safety CJ1W-OD212 is a digital output unit featuring 16 transistor outputs designed specifically for the CJ Series. Engineered to deliver high performance, this module serves as a reliable component within industrial automation systems.
With its 16 transistor outputs, the CJ1W-OD212 provides ample connectivity for various external devices, offering versatility in system integration. These outputs operate under the PNP (Positive-Negative-Positive) configuration, ensuring compatibility with a wide range of industrial equipment.
The module operates within a voltage range of 24VDC, making it suitable for industrial environments where this voltage standard is prevalent. It supports a maximum output current of 0.5A, delivering sufficient power to drive connected devices efficiently and reliably.
Equipped with load short-circuit protection, the CJ1W-OD212 enhances system safety by safeguarding against potential electrical faults. This feature minimizes the risk of damage to both the module and connected equipment, ensuring continuous operation and reliability.
One notable feature of the CJ1W-OD212 is its OFF/ON delay function, which allows users to customize the timing of output signals within a range of 0-32ms. This functionality enables precise control over connected devices, enhancing system performance and responsiveness.
Designed for ease of installation, the module features screw terminals for convenient and secure connection of wires. This terminal type simplifies the wiring process, facilitating efficient installation and maintenance procedures.
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
