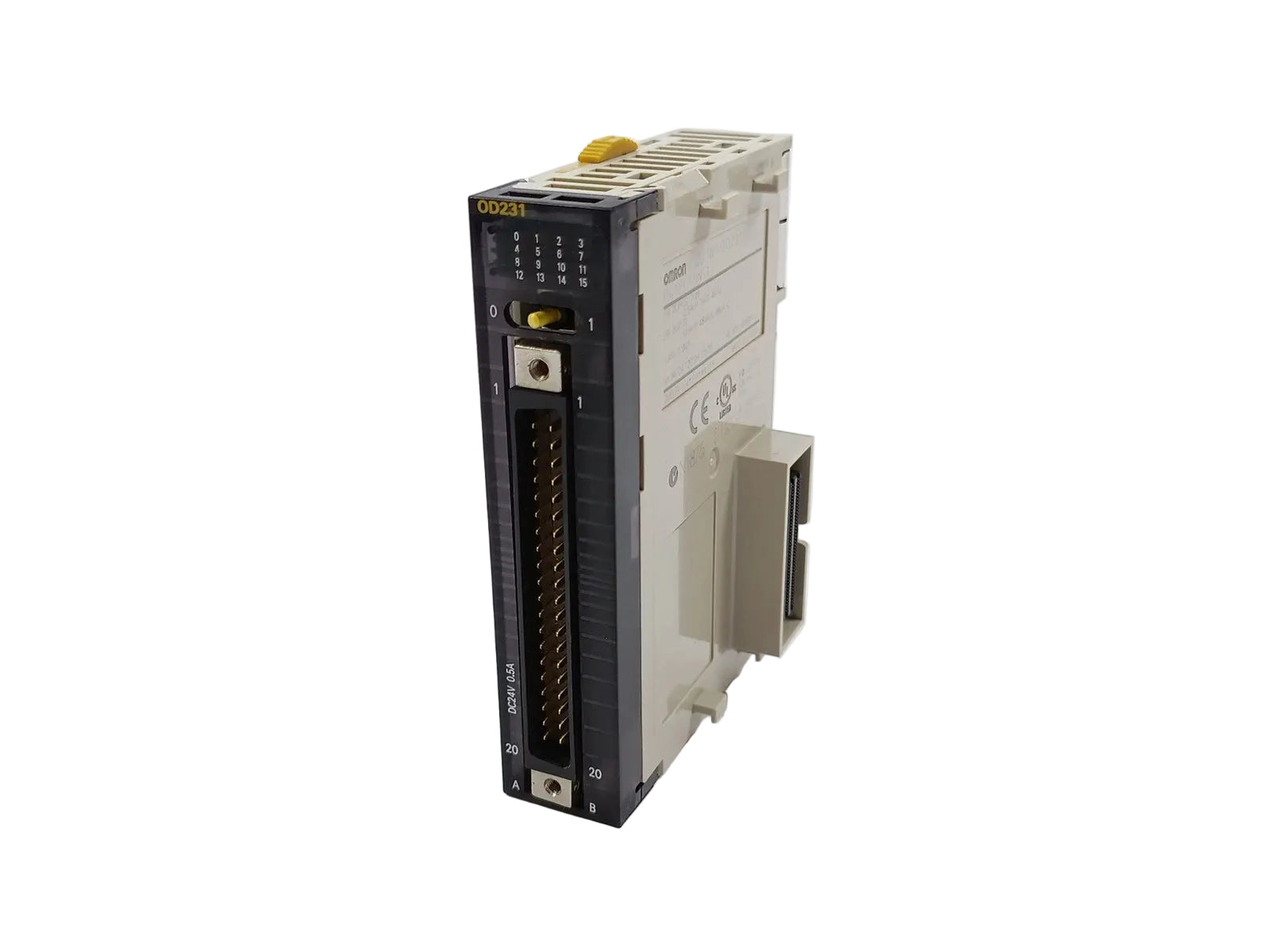

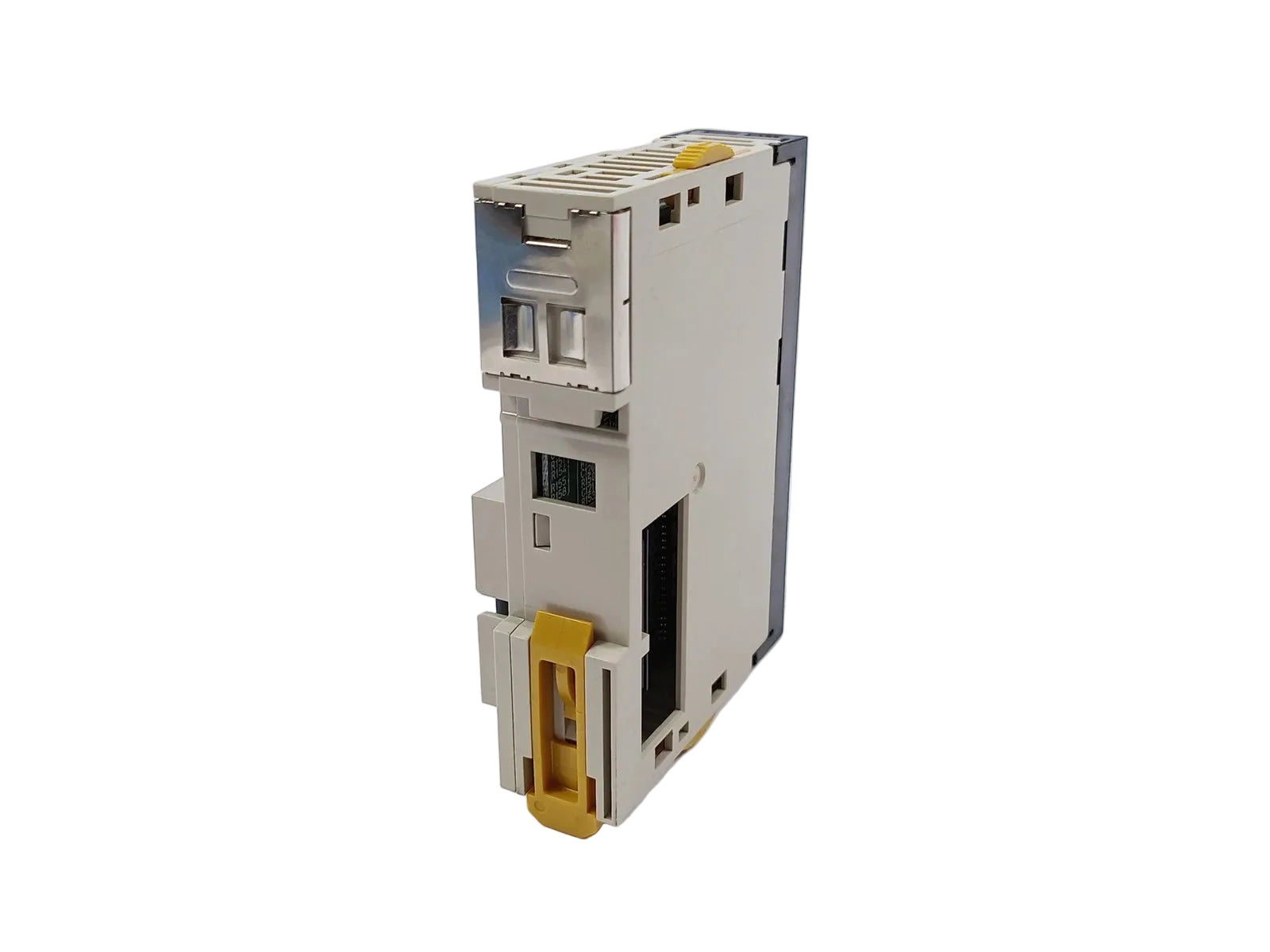

CJ1W-OD231 | Omron CJ1 32-Point 12–24VDC Solid-State Output Module
- Regular price
- $594.00
- Sale price
- $594.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CJ1W-OD231
Description
The Omron CJ1W-OD231 is a 32-point solid-state output module designed for CJ Series PLC systems. It operates within a 12 to 24 VDC range and provides up to 0.5 A per output point for reliable DC load control. Designed for DIN rail mounting, this module supports high-density discrete output switching in industrial automation panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | CJ1W-OD231 |
| Subcategory | PLC Output Modules |
| Product Line | CJ1W |
| Module Type | Solid-State Output Module |
| Number of Outputs | 32 |
| Number of Commons | 2 |
| Voltage Rating | 12–24 VDC |
| Maximum Current per Point | 0.5 A |
| Maximum Current per Common | 2 A |
| Leakage Current | 0.1 mA |
| Internal Current Consumption | 140 mA |
| Termination Style | Rectangular Connector |
| Mounting Type | DIN Rail |
| Approval Agency | CE, cULus, Lloyd, NK |
| Fuse Protection | None |
| Weight | 1.00 lbs (0.45 kg) |
Information About CJ1W-OD231
The CJ1W-OD231 is a CJ1 Series output module engineered for integration with Omron CJ Series PLC platforms. It features 32 solid-state (transistor) outputs divided into two commons, allowing structured wiring and load grouping. Each output point supports up to 0.5 A, with a maximum of 2 A per common, ensuring dependable DC load switching performance. The unit connects via a rectangular connector and mounts on a DIN rail, making it suitable for compact and organized control cabinet installations.
Key Features:
- 32 Solid-State Outputs: High-density transistor outputs for discrete DC control.
- 12–24 VDC Operation: Compatible with standard industrial DC systems.
- 0.5 A per Output Point: Supports reliable switching of individual loads.
- 2 A per Common: Allows grouped load management across two commons.
- Low Leakage Current: 0.1 mA leakage for stable OFF-state performance.
- DIN Rail Mounting: Enables efficient installation in control panels.
- Rectangular Connector Termination: Provides organized and secure wiring.
- Certified Compliance: Approved to CE, cULus, Lloyd, and NK standards.
The CJ1W-OD231 delivers the reliability and precision required for high-density DC output control in CJ Series PLC automation systems.
