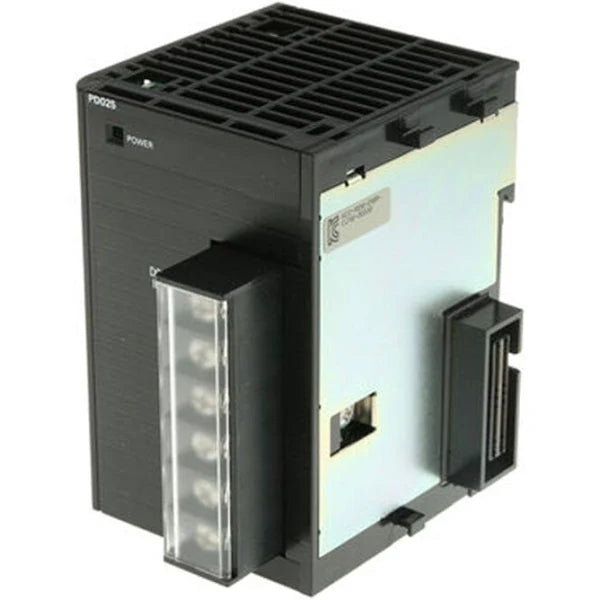

CJ1W-PD025 | OMRON Switching Power Supplies 24VDC No RUN Output 5V-5A 24V-.8A
- Regular price
- $159.00
- Sale price
- $159.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CJ1W-PD025
Description
Omron's CJ1W-PD025 DC power supply unit is a space-saving and sturdy piece of hardware for use in robotics and other forms of industrial automation. Control system components may be effectively powered by its 5 VDC supply giving 5A and 24 VDC supply giving 0.8A, with a total power consumption of 25W output. Installation is a breeze thanks to the DIN rail attachment and screw-type termination. Due to its broad working temperature range and compatibility with CJ series PLCs, the device is well-suited for use in rigorous industrial settings.
Technical Specifications
| Brand | OMRON |
| Product series | CJ1 |
| Part Number | CJ1W-PD025 |
| Compatibility | CJ Series PLCs |
| Output Voltage (Channel 1) | 5 VDC |
| Output Current (Channel 1) | 5A |
| Output Voltage (Channel 2) | 24 VDC |
| Output Current (Channel 2) | 800 mA |
| Total Power Consumption | 25 W |
| Input Voltage | 24 VDC |
| Operating Temperature Range | 0°C to 55°C |
| Mounting Style | DIN Rail |
| Termination | Screw Type |
| Dimensions (L x W x H) | 90 mm x 81.6 mm x 60 mm |
Information About CJ1W-PD025
The CJ1W-PD025 power supply unit, made by Omron Automation and Safety, is a flexible and dependable part created especially for industrial automation and robotics applications in the automotive sector. It is appropriate for powering different devices and equipment within a control system with an input supply of 24 VDC. The dual-channel device enables output currents of 5 A and 800 mA for outputs at 5V DC and 24V DC, respectively. Since the power supply is encapsulated and can be quickly placed on a DIN rail, a compact and secure installation is guaranteed. Its user-friendliness is enhanced by the screw-type termination, which enables quick and secure connections. Because of its small size, 90 x 60 x 81.6 mm, the CJ1W-PD025 power supply is ideal for integration into Omron's CJ series PLCs and I/O racks. With a temperature operating range of 0°C to 55°C and a 2kV noise immunity on the power supply line, it guarantees steady performance even in severe industrial situations. Safety is highlighted by the necessity for good grounding, and its grounding resistance should be less than 100 ohms. The power supply also uses a maximum of 50 Watts of electricity efficiently. In general, the nature and function of the CJ1W-PD025 power supply unit center on supplying steady and regulated power to industrial automation systems, robotics, and other applications in the automotive sector. It provides a smooth and effective power solution to drive industrial operations with accuracy and dependability thanks to its compatibility with CJ series PLCs, solid technical standards, and compact form.
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
