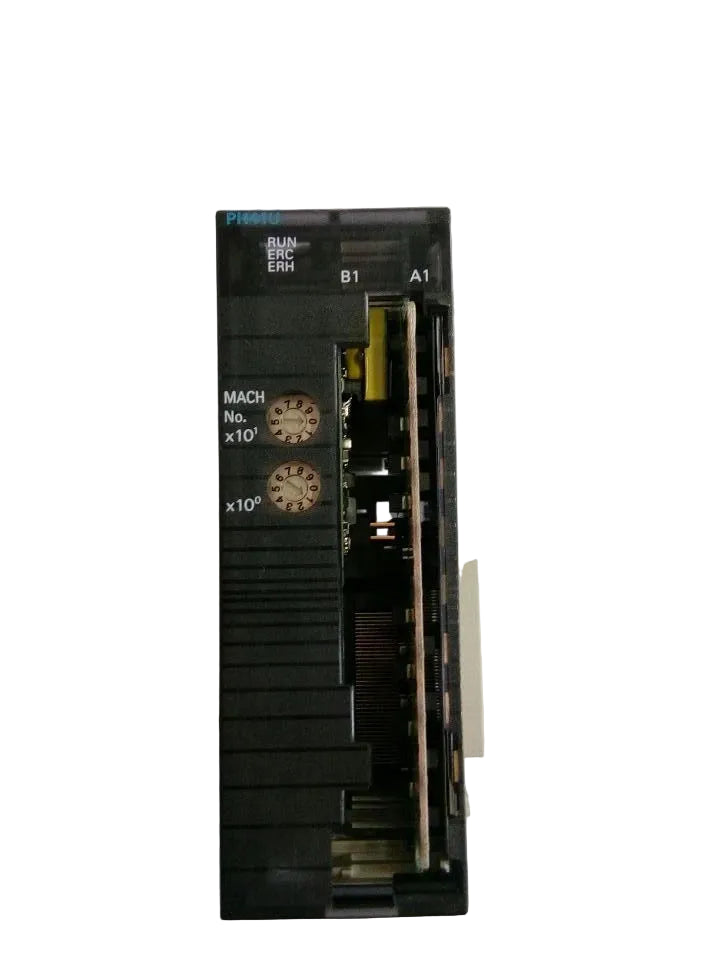

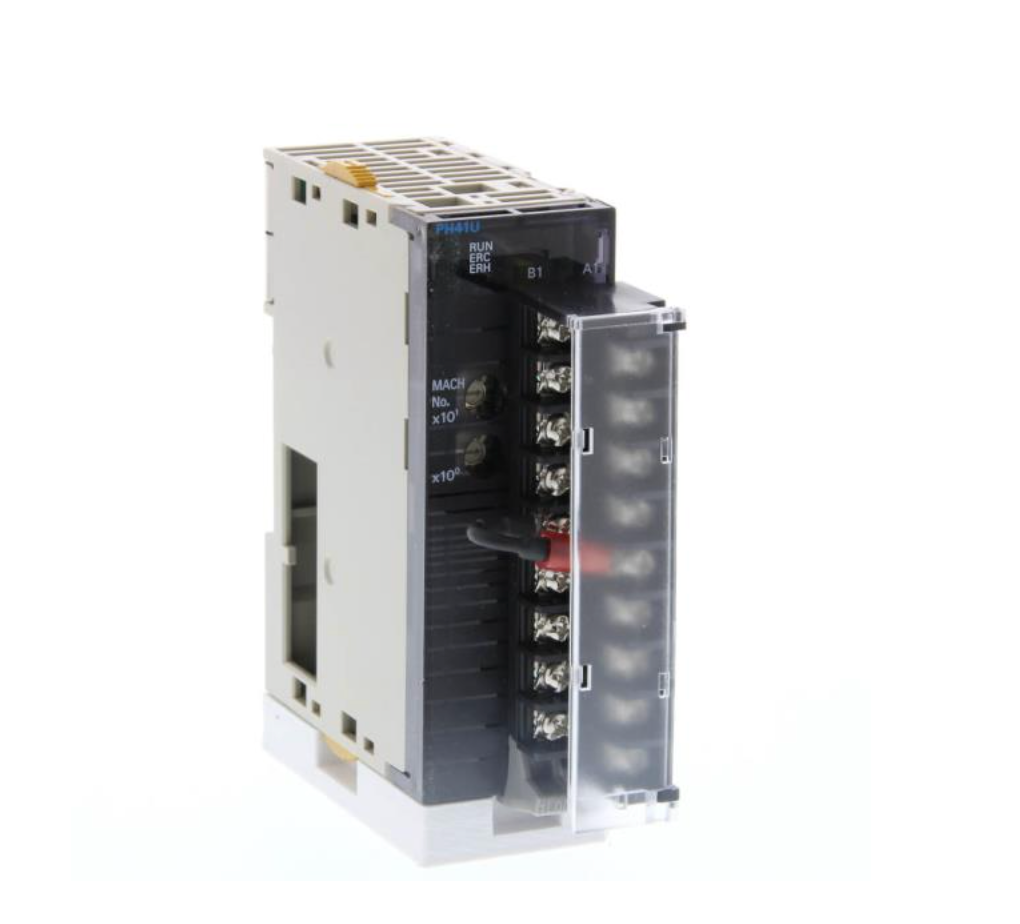

CJ1W-PH41U | Omron Universal High-Resolution Analog Input PLC Module
- Regular price
- $1,292.00
- Sale price
- $1,292.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CJ1W-PH41U
Description
The Omron CJ1W-PH41U is a universal analog input module designed for programmable logic controllers (PLCs) in industrial automation systems. It provides high-resolution measurement from a variety of analog sources including voltage, current, temperature sensors, and potentiometers. This module supports precise data acquisition and converts real-world analog signals to digital values for process monitoring and control. It is commonly used to interface diverse sensor types with CJ-series PLCs.
Technical Specifications
| Specification | Details |
|---|---|
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | CJ1W-PH41U |
| Subcategory | PLC Module/Rack |
| Module Type | Universal Analog Input Unit |
| Series | CJ-series Special I/O Units |
| Number of Inputs | 4 isolated input channels |
| Input Types Supported | Thermocouple, Pt100/Pt1000 resistance thermometers, DC current/voltage, potentiometer |
| Resolution | 18-bit |
| Connector Type | Screw terminal |
| Isolation | Channel-to-channel isolation |
| Applicable PLC Series | Omron CJ and NJ Series |
| Mounting Position | CPU or expansion rack |
| Data Exchange Area | 10 words in Special I/O Unit Area for operation data |
| Environmental Operating Range | 0–55°C (typical for CJ units) |
| Weight | 0.33 lbs (approx bundle state) |
Information About CJ1W-PH41U
The CJ1W-PH41U is part of Omron’s CJ-series special I/O units engineered to expand the analog input capabilities of CJ and NJ PLC systems. Built with four isolated input channels, each can be independently configured for a wide range of signal types such as thermocouples, Pt100 resistance thermometers, DC current and voltage, and potentiometer signals. The high 18-bit resolution ensures fine measurement granularity and improved accuracy for process control applications. Its screw-terminal connection and isolated circuitry support reliable and noise-resistant operation in industrial environments.
Key Features:
- Universal Analog Inputs: Accepts multiple signal types including thermocouple, DC mA/V, Pt100, and potentiometers on each channel.
- High Resolution: 18-bit ADC resolution for precise analog-to-digital conversion.
- Four Independent Channels: Each input channel is configurable for different sensor and signal types.
- Isolated Inputs: Electrical isolation between channels enhances noise immunity and measurement stability.
- Screw Terminal I/O: Robust screw terminal connection for secure wiring in industrial panels.
- CJ-Series Compatibility: Designed for CJ and compatible NJ PLC racks and expansion racks.
- Wide Input Range: Supports ±100 mV to ±10 V, 0–20 mA, 4–20 mA and temperature sensor ranges.
The CJ1W-PH41U delivers the reliability and precision required for high-performance analog input measurement in PLC-based control systems.
