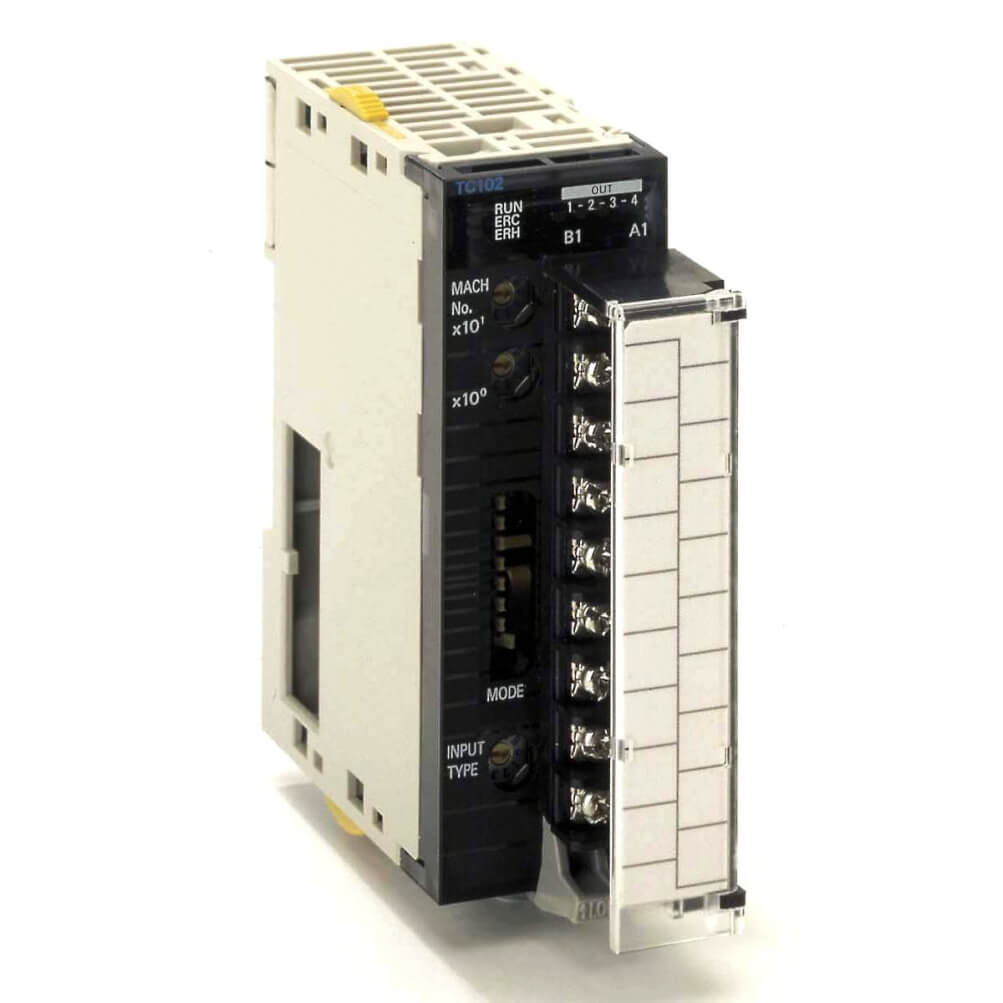

Product Description P/N: CJ1W-TC102
Description
The Omron CJ1W-TC102 is a 4-loop temperature control unit designed for precise heating and cooling regulation within CJ-series automation systems. Featuring Pt100 RTD inputs and PNP voltage-pulse outputs, it delivers stable and responsive thermal control for complex industrial processes.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs / Machine Control |
| Part Number | CJ1W-TC102 |
| Subcategory | Temperature Control Module |
| I/O System | CJ I/O Bus |
| Module Type | Special I/O Unit |
| Temperature Control Loops | 4 |
| Analog Inputs | 4 (Pt100 RTD) |
| Analog Outputs | 0 |
| Digital Inputs | 0 |
| Digital Outputs | 4 (PNP Voltage Pulse) |
| Control Function | Heat or Cool |
| Mounting Type | DIN Rail / Rack Mount (CJ-Series) |
| Terminal Type | Screw Terminal |
| Height | 90 mm |
| Width | 31 mm |
| Depth | 89 mm |
Information About CJ1W-TC102
The Omron CJ1W-TC102 temperature control unit enables precise four-loop thermal regulation within CJ-series PLC systems using Pt100 RTD inputs for accurate sensing and PNP voltage-pulse outputs for energizing solid-state control devices. Designed as a Special I/O module on the CJ I/O bus, it integrates seamlessly with Omron automation platforms to manage heating or cooling tasks in ovens, packaging lines, molding equipment, and process machinery. Its compact footprint and screw-terminal wiring simplify panel installation, while the DIN-rail friendly form factor supports dense modular configurations. Engineered for dependable industrial performance, it offers fast response and stable control essential for tightly regulated temperature-dependent operations.
Key Features:
- Four Independent Control Loops: Supports simultaneous multi-zone thermal management, ideal for equipment requiring segmented heating or cooling control.
- High-Accuracy Pt100 RTD Inputs: Ensures precise temperature measurement with stable resistance-based sensing for critical process applications.
- PNP Voltage Pulse Outputs: Provides solid-state control capability suitable for driving SSRs, heaters, or actuators without mechanical wear.
- Integrated Heat/Cool Control Logic: Enables flexible regulation for both heating and cooling modes, improving process stability and energy efficiency.
- Special I/O Bus Integration: Connects directly to the CJ-series I/O architecture for synchronized operation with PLC logic and system diagnostics.
- Compact Industrial Housing: A 90 × 31 × 89 mm module footprint allows dense installation in crowded control panels.
- Secure Screw Terminal Wiring: Offers reliable and vibration-resistant electrical connections for field wiring and sensor integration.
- Ideal for Multi-Zone Temperature Applications: Designed for ovens, food processing systems, plastic forming, environmental chambers, and precision thermal processes.
The CJ1W-TC102 delivers the reliability and precision required for multi-loop temperature regulation in advanced Omron CJ-series industrial automation systems.
