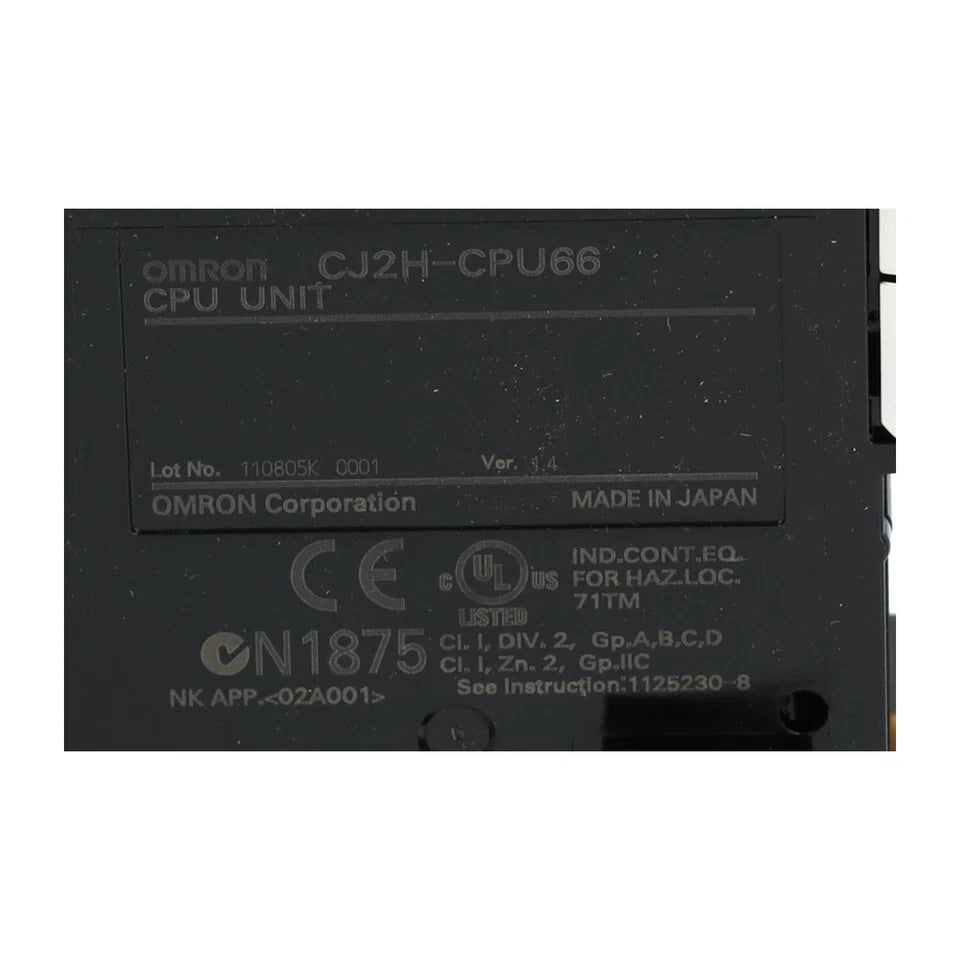

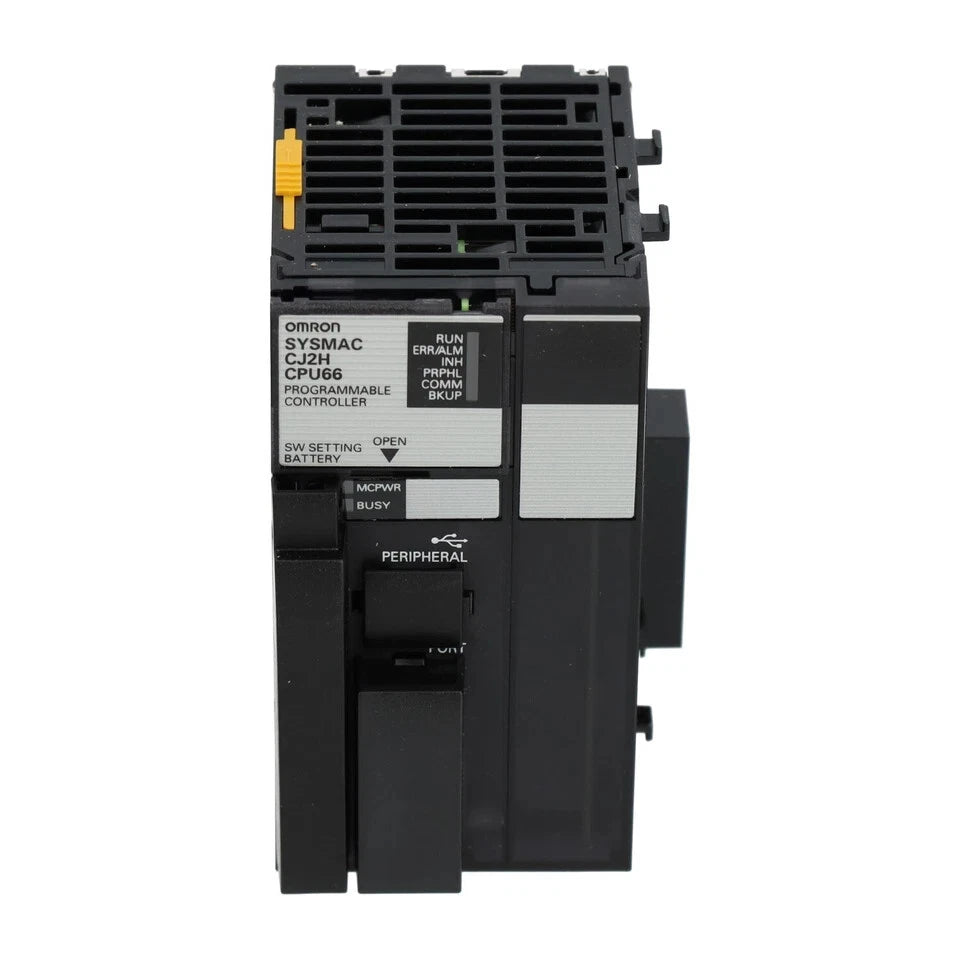

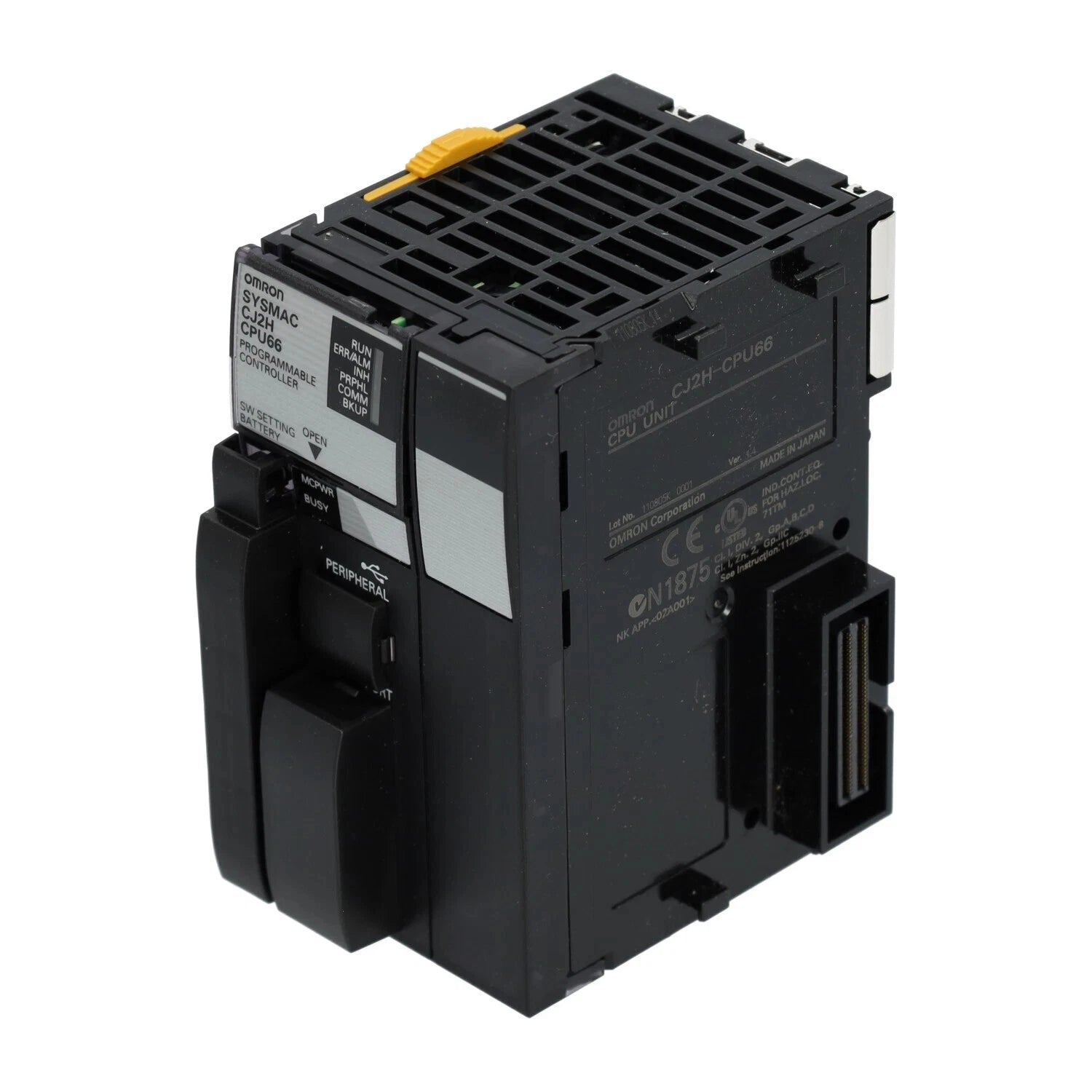

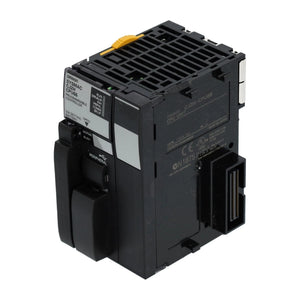

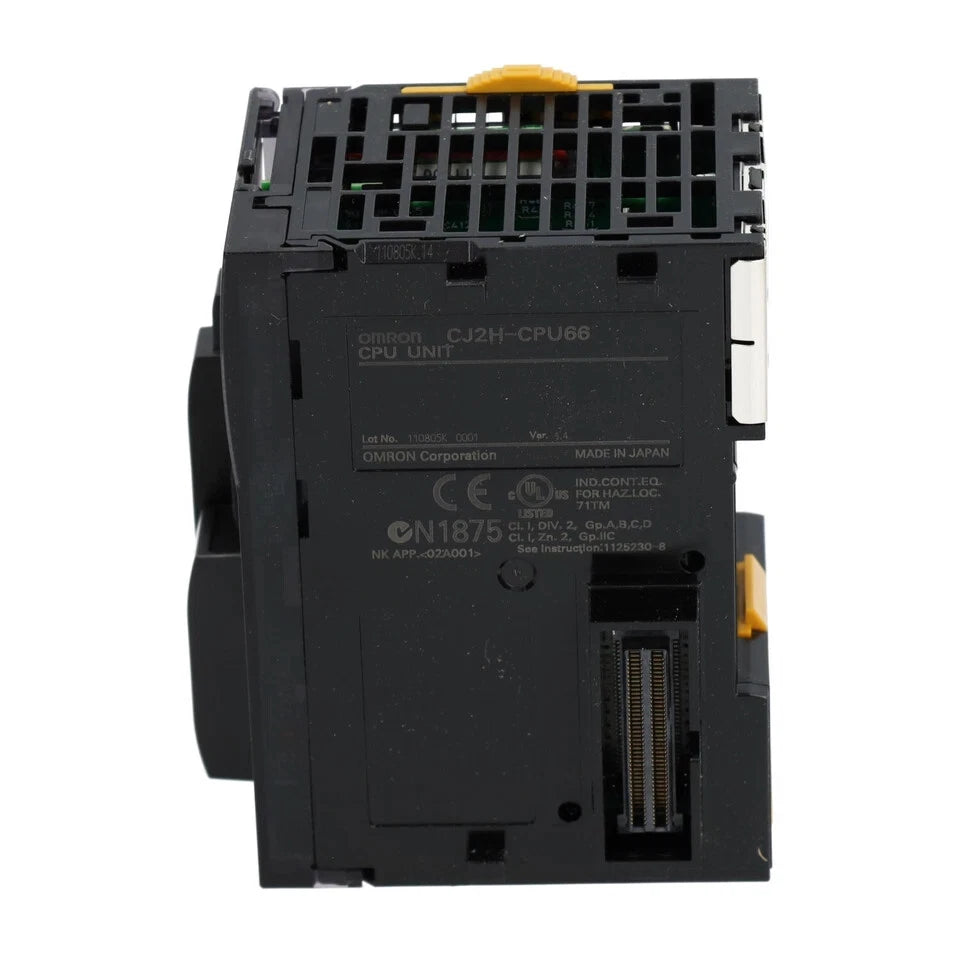

CJ2H-CPU66 | Omron High-Speed PLC CPU with 150K Steps
- Regular price
- $5,695.00
- Sale price
- $5,695.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CJ2H-CPU66
Description
The Omron CJ2H-CPU66 is a high-performance PLC CPU module offering 150K program steps and support for up to 2,560 I/O points. It features ultra-fast 0.016 µs logic execution, dual communication ports (USB and RS-232C), and robust data and expansion capabilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC & PAC Control Systems |
| Part Number | CJ2H-CPU66 |
| Subcategory | CPU Modules |
| Series | CJ2H |
| Program Capacity | 150K Steps |
| Data Memory Capacity | 352K Words |
| Extended Memory (EM) | 32K Words × 10 Banks |
| Logic Execution Time | 0.016 µs |
| Cycle Time Range | 0.01–40,000 ms |
| I/O Capacity | 2,560 Points |
| Max Expansion Units | 40 |
| Max Expansion Racks | 3 |
| Built-in I/Os | None |
| Communication Ports | USB, RS-232C |
| Programming Languages | LD, ST, SFC |
| Interrupt Response Time | 26 µs startup, 11 µs return |
| Timer/Counter Capacity | 4,096 each |
| Task Limit | 384 (cyclic + interrupt) |
| Memory Card Options | 128, 256, 512 MB (optional) |
| Error Detection | Power, Memory, I/O, Instructions |
| Mounting Type | Rack Mount |
| Dimensions (HxWxD) | 90 × 48.8 × 74.5 mm |
| Weight | 190 g (0.42 lb) |
Information About CJ2H-CPU66
The CJ2H-CPU66 is a flagship CPU unit from Omron’s CJ2H series, engineered for fast, large-scale automation control. With a 150K-step program capacity, 352K words of data memory, and 10 banks of 32K-word EM memory, it’s built to manage highly complex applications with large data handling needs. This CPU supports up to 40 expansion units and three expansion racks, offering flexibility for modular growth in both machine and process control. Programming is available in ladder diagram (LD), structured text (ST), and sequential function chart (SFC), making it suitable for advanced industrial automation environments requiring speed, precision, and system-wide diagnostics.
Key Features:
-
150K-Step Program Capacity: Handles large control programs with advanced logic structures for complex systems.
-
352K Words of Data Memory + EM Banks: Includes 10 banks of 32K-word extended memory for efficient data storage and retrieval.
-
Ultra-Fast Instruction Execution: Executes basic instructions at 0.016 µs, enabling high-speed control loops and real-time responsiveness.
-
Massive I/O Scalability: Supports up to 2,560 local I/O points and 40 expansion units for large control system deployments.
-
Dual Communication Ports: Includes RS-232C for serial devices and USB for programming and configuration.
-
Advanced Programming Languages: Supports LD, ST, and SFC for flexible and structured program development.
-
High Task Handling: Manages up to 384 cyclic and interrupt tasks with fast 11 µs task return response.
-
Robust Diagnostics and Error Detection: Monitors power, memory, I/O, and instruction errors for secure and dependable operation.
The CJ2H-CPU66 delivers the reliability and precision required for high-speed, data-intensive PLC control in distributed industrial automation systems.
