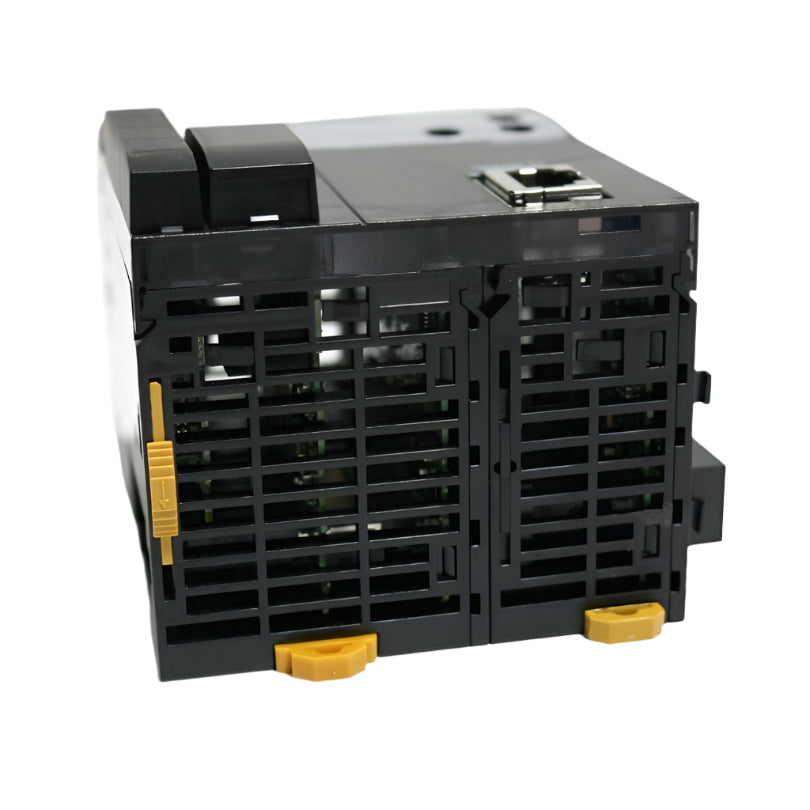

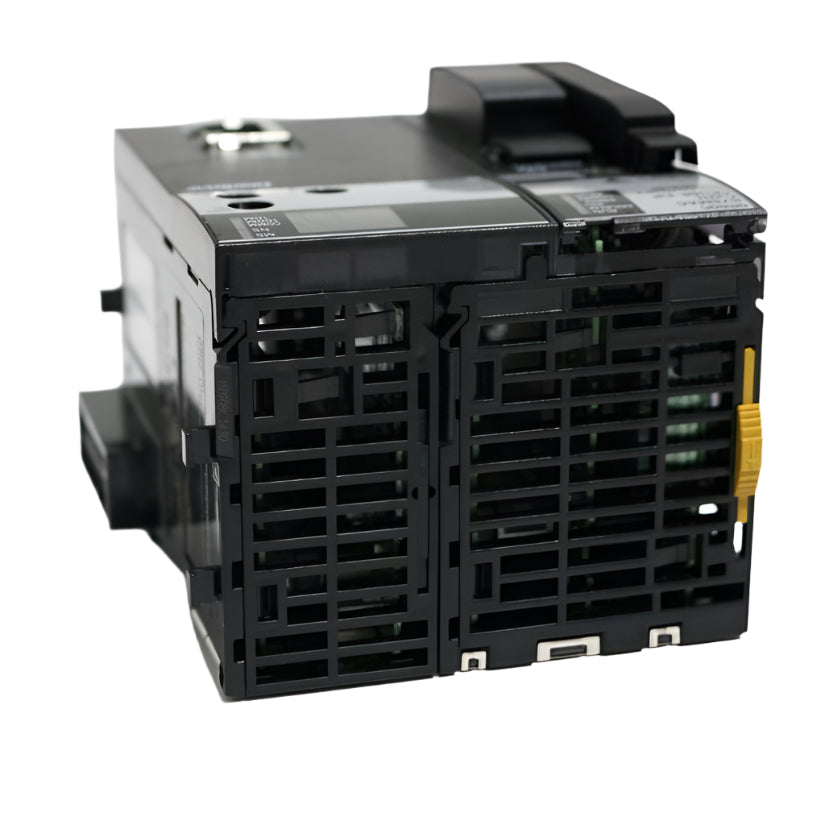

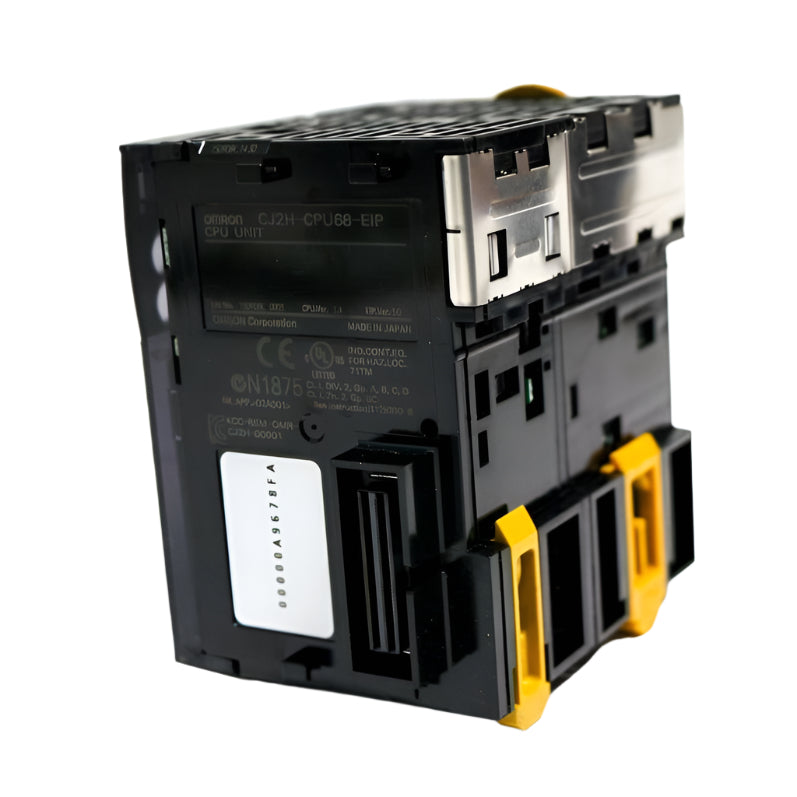

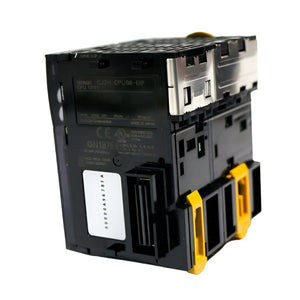

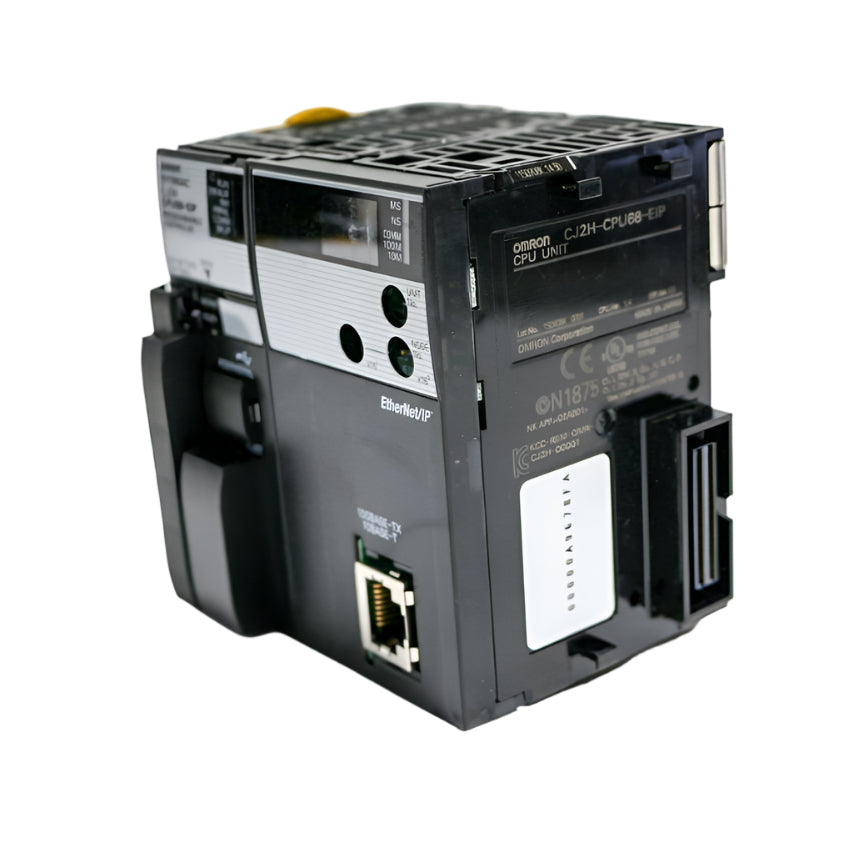

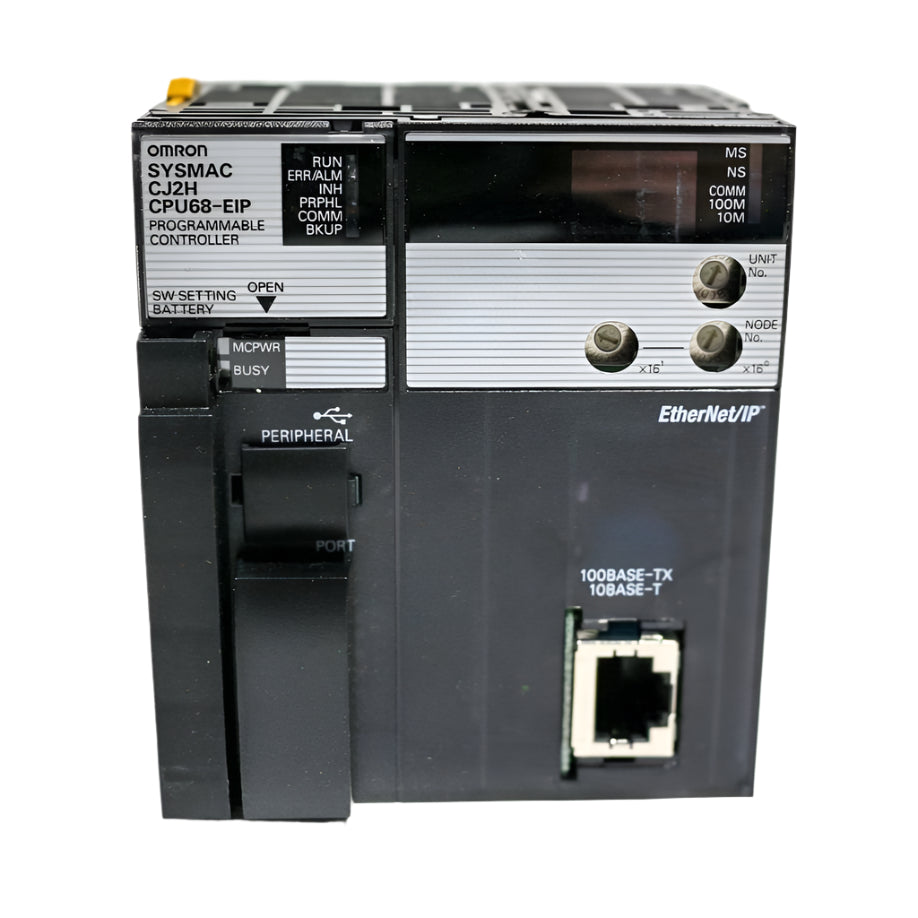

CJ2H-CPU68-EIP | Omron 400K Step PLC CPU Module with Built-in EtherNet/IP
- Regular price
- $14,200.00
- Sale price
- $14,200.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CJ2H-CPU68-EIP
Description
The Omron CJ2H-CPU68-EIP is a high-performance CPU module designed for advanced industrial control applications. It offers 400K steps of program memory, 832K words of data memory, and a built-in multifunctional Ethernet port for seamless network integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | CJ2H-CPU68-EIP |
| Subcategory | PLC CPU Modules |
| Series | CJ2 |
| Product Type | CPU Module |
| User Memory | 400K steps |
| Data Memory | 832K words |
| Processing Speed | 0.016 μs (basic), 0.048 μs (special) |
| Maximum I/O Points | 2,560 bits |
| Built-in Communication Interfaces | EtherNet/IP, USB, RS-232C |
| EtherNet/IP Tag Data Link Capacity | 256 connections |
| Maximum Expansion Units | 40 |
| Programming Languages | Ladder Logic, Structured Text, Instruction Lists, SFC |
| Mounting | Panel-mounted |
| Dimensions (H x D x W) | 90 × 65 × 80 mm |
| Power Supply Requirements | 5 VDC, 0.82 A |
| Operating Temperature Range | 0°C to 55°C |
| Humidity Range | 10% to 90% (non-condensing) |
| Vibration Resistance | 5–8.4 Hz, 3.5 mm; 8.4–150 Hz, 9.8 m/s² |
| Weight | 280 g |
Information About CJ2H-CPU68-EIP
The CJ2H-CPU68-EIP is part of Omron’s CJ2 series, developed for large-scale automation systems requiring fast processing and extensive connectivity. With a basic instruction execution time of just 0.016 μs and support for up to 2,560 I/O points, it delivers exceptional responsiveness for demanding control tasks. The unit features built-in EtherNet/IP, USB, and RS-232C interfaces, supporting up to 256 EtherNet/IP tag data link connections for flexible communication with devices and networks. Capable of accommodating up to 40 expansion units, it supports multiple programming languages including Ladder Logic, Structured Text, Instruction Lists, and Sequential Function Charts, providing versatility for different engineering requirements. Its compact panel-mounted design, vibration resistance, and wide operating temperature range make it suitable for a variety of industrial environments.
Key Features:
-
High-Capacity Program Memory: Offers 400K steps for complex automation programs, enabling advanced control strategies.
-
Large Data Memory Storage: Provides 832K words for handling extensive operational and process data.
-
Ultra-Fast Processing Speed: Executes basic instructions in 0.016 μs and special instructions in 0.048 μs for high-speed performance.
-
Multiple Communication Interfaces: Includes built-in EtherNet/IP, USB, and RS-232C ports for flexible device and network integration.
-
EtherNet/IP Data Link Capability: Supports up to 256 tag data link connections for robust real-time communication.
-
High I/O Capacity: Controls up to 2,560 I/O points to meet large system requirements.
-
Scalable Expansion: Supports up to 40 connected units for system growth and customization.
-
Multiple Programming Language Support: Compatible with Ladder Logic, Structured Text, Instruction Lists, and SFC for versatile programming approaches.
-
Industrial-Grade Durability: Resistant to vibration and designed to operate reliably in temperatures from 0°C to 55°C with up to 90% non-condensing humidity.
The CJ2H-CPU68-EIP delivers the reliability, speed, and connectivity required for high-end industrial automation projects across diverse sectors.
