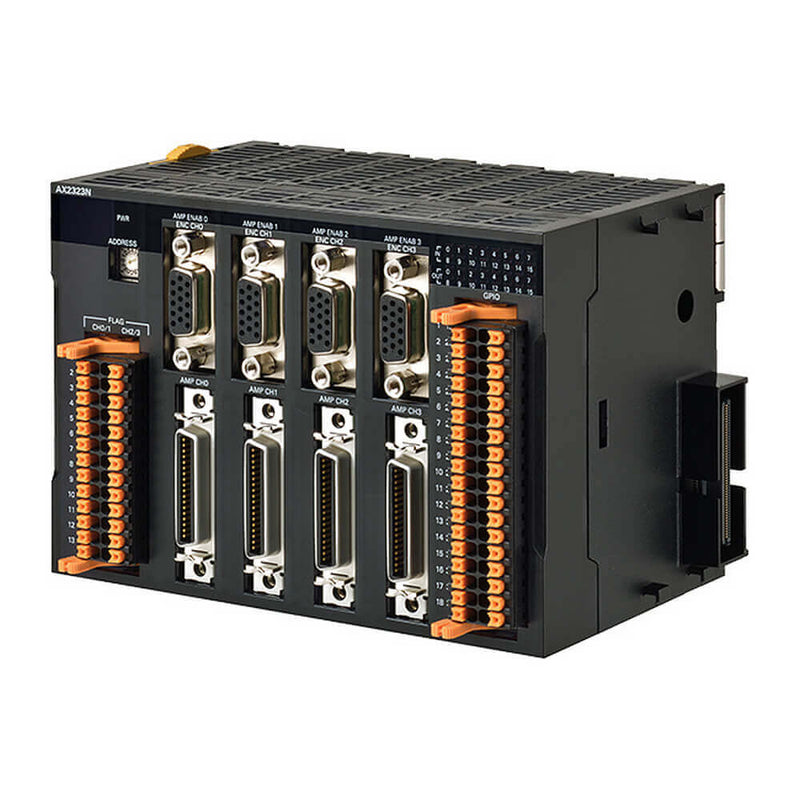

CK3W-AX2323P | Omron 4-Axis Interface Unit, PWM Output, Sinusoidal/Serial Encoder, PNP, 24 VDC
- Regular price
- $3,985.00
- Sale price
- $3,985.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CK3W-AX2323P
Description
The Omron CK3W-AX2323P is a 4-axis interface unit designed for precise motion control in industrial automation systems. It provides direct PWM output and supports both sinusoidal and serial encoder interfaces, ensuring smooth and accurate positioning for servo or motor-driven applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motion Control |
| Part Number | CK3W-AX2323P |
| Subcategory | Axis Interface Unit |
| Series | CK3W Series |
| Type of Module | Axis Interface |
| Number of Axes | 4 |
| Number of Pulse Output Channels | 4 |
| Number of Encoder Input Channels | 4 |
| Amplifier Interface | Direct PWM Output |
| Encoder Interface | Sinusoidal / Serial |
| Digital Output Type | PNP |
| Supply Voltage | 24 VDC (typical) |
| Communication Interface | Sysmac motion network (via CK3W platform) |
| Product Height | 90 mm |
| Product Width | 130 mm |
| Product Depth | 80 mm |
| Mounting Type | Panel / DIN rail mount (varies by system) |
| Compliance | CE, UL, RoHS |
| Application | Multi-axis servo and motion control |
| Operating Temperature | 0°C to +55°C |
| Weight | 521.15 g |
Information About CK3W-AX2323P
The CK3W-AX2323P is part of Omron’s CK3W series of motion control modules engineered for high-performance multi-axis synchronization and control. This unit serves as an axis interface module, offering four pulse output channels and four encoder input channels for coordinated motion management. It supports direct PWM output and sinusoidal or serial encoder feedback, enabling precise motion profiles for advanced machinery and robotics. Designed with a PNP digital output type, the CK3W-AX2323P integrates seamlessly into Omron’s Sysmac automation platform, providing accurate, real-time control for production and inspection systems.
Key Features:
- 4-Axis Control: Provides four independent channels for motion control and feedback synchronization.
- Direct PWM Output: Enables high-precision control of servo drives and actuators.
- Dual Encoder Interface: Supports both sinusoidal and serial encoders for versatile motion applications.
- PNP Digital Outputs: Compatible with Omron’s Sysmac system architecture for reliable signal output.
- Compact Design: Space-efficient unit with a 90 × 130 × 80 mm form factor for easy integration.
- High-Speed Feedback: Delivers accurate motion data for advanced positioning and servo tuning.
- Robust Construction: Built for industrial environments with strong EMC resistance and vibration durability.
- Seamless System Integration: Designed to interface with Omron motion controllers for coordinated multi-axis performance.
The CK3W-AX2323P delivers the reliability and precision required for complex, high-speed motion control in industrial automation and robotics.
