833-03517 | Cleaver-Brooks RM7800 L1095 Burner Programming Controller 120VAC
- Regular price
- $3,954.00
- Sale price
- $3,954.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 833-03517
Description
The Cleaver-Brooks 833-03517 is an RM7800 L1095 automatic burner programming control designed for industrial combustion systems. Operating at 120 VAC, 50/60 Hz, it provides a 10-second pilot limit and 15-second pilot/MV2 timing sequence for controlled burner start-up. The 833-03517 includes a keyboard display interface for status indication and diagnostics in burner management applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Cleaver-Brooks |
| Category | HVAC |
| Part Number | 833-03517 |
| Subcategory | Burner Control |
| Model Reference | RM7800 L1095 |
| Input Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Pilot Limit | 10 seconds |
| Pilot/MV2 Timing | 15 seconds |
| Control Type | Automatic Programming Burner Controller |
| Display Type | Integrated Keyboard Display |
| Application | Boiler and industrial burner systems |
| Weight | 2.22 lbs |
Information About 833-03517
The 833-03517 is a Cleaver-Brooks burner control module based on the RM7800 series platform, engineered for automatic sequencing and flame safeguard control. It manages pilot and main valve timing sequences while monitoring system status and lockout conditions. The integrated keyboard display enables local viewing of operational data and diagnostic information for maintenance and troubleshooting. Designed for HVAC and boiler combustion systems, it supports reliable control of single-burner applications requiring programmable flame supervision.
Key Features:
- Automatic Programming Control: Manages burner start-up, pilot, and main valve sequencing.
- 120 VAC Operation: Rated for 120 VAC input at 50/60 Hz.
- 10-Second Pilot Limit: Configured pilot trial-for-ignition timing.
- 15-Second Pilot/MV2 Timing: Controls second-stage pilot or main valve timing sequence.

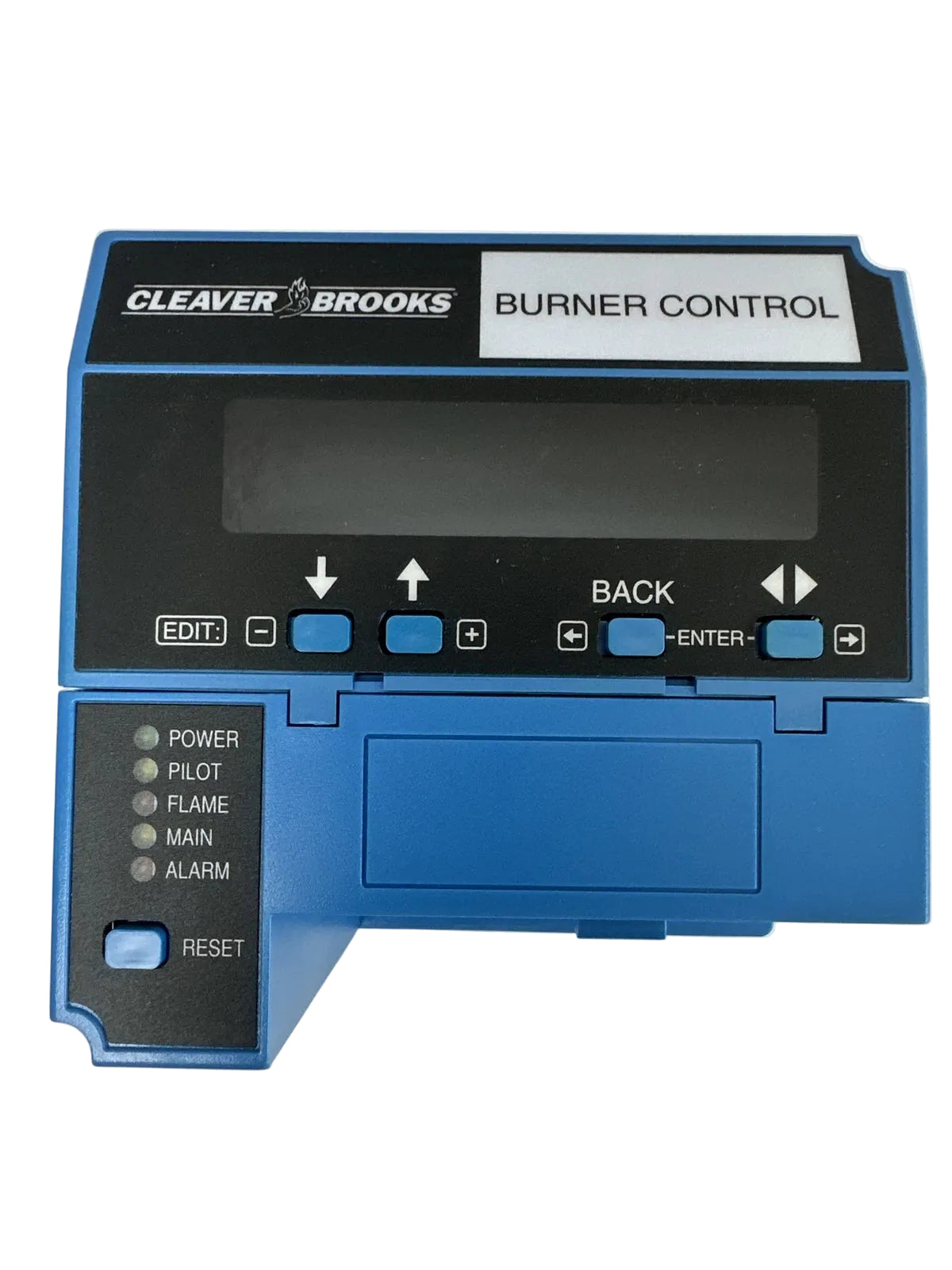

- Integrated Keyboard Display: Provides local system status, diagnostics, and configuration interface.
- Flame Safeguard Functionality: Monitors and supervises burner flame conditions.
- Lockout Protection: Protects system by shutting down upon unsafe operating conditions.
The 833-03517 delivers the reliability and precision required for industrial burner control and flame safeguard applications.
