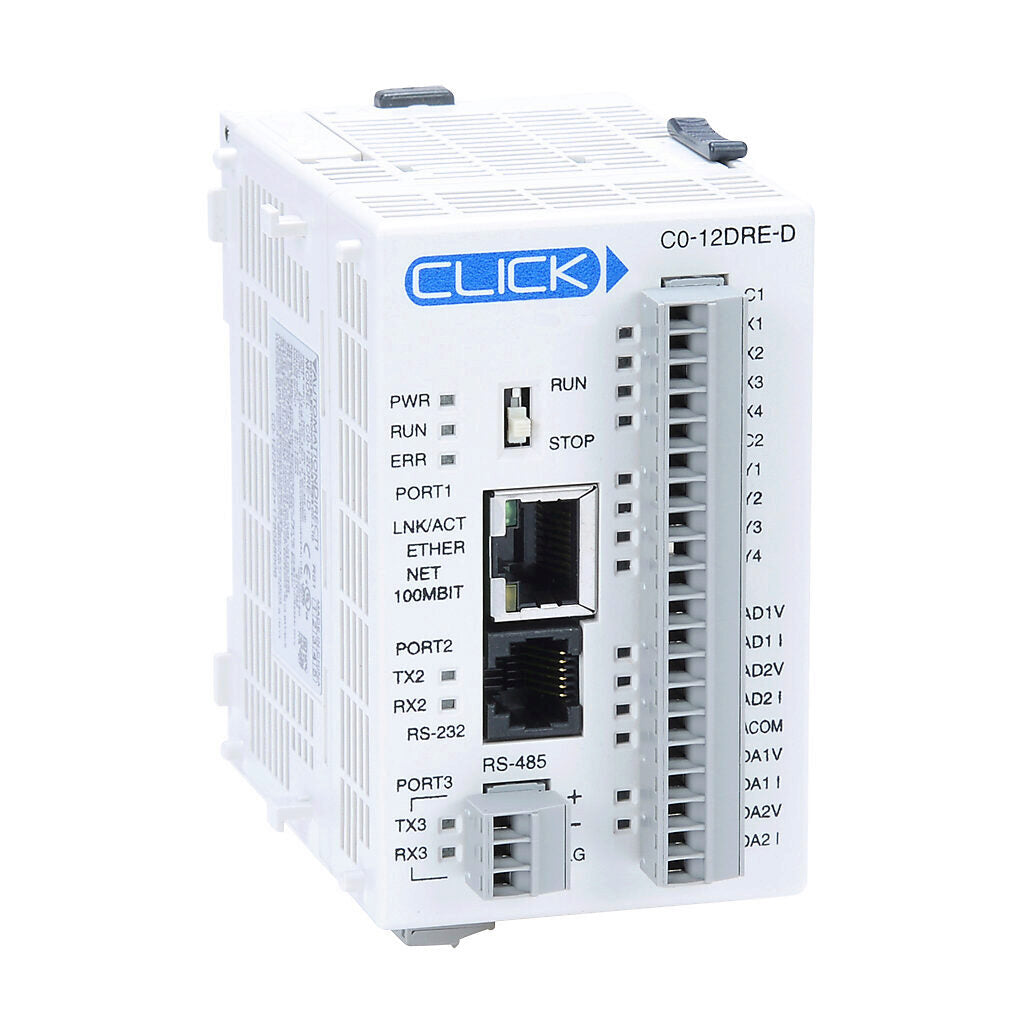

C0-12DRE-D | CLICK Ethernet Analog PLC 24VDC 8 I/O 4 Analog
- Regular price
- $397.00
- Sale price
- $397.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C0-12DRE-D
Description
The CLICK C0-12DRE-D is a DC-powered Ethernet Analog PLC designed for compact automation systems requiring both discrete and analog control. It operates on 24 VDC and includes 4 discrete DC inputs, 4 relay outputs, and 2 analog inputs and 2 analog outputs supporting current and voltage signals. Integrated Ethernet and serial communication ports enable flexible network connectivity and system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | CLICK |
| Category | PLCs/Machine Control |
| Part Number | C0-12DRE-D |
| Subcategory | PLC Module/Rack |
| Series | Ethernet Analog |
| External Power Requirement | 24 VDC |
| Voltage Type | DC |
| Ladder Memory | 8K steps |
| User Data Memory | 16 KB |
| Programming Language | Ladder |
| Programming Software | CLICK programming software v2.20 or later |
| Communication Ports | Ethernet (RJ45), RS-232 (RJ12), RS-485 (3-pin terminal) |
| Supported Protocols | Modbus TCP, Modbus RTU, ASCII, EtherNet/IP |
| Discrete Inputs | 4 points, 24 VDC, sinking/sourcing |
| Discrete Outputs | 4 relay outputs, Form A (SPST), 1A per point |
| Analog Inputs | 2 channels, current/voltage |
| Analog Input Resolution | 12-bit |
| Analog Input Range | 4–20 mA, 0–5 VDC |
| Analog Outputs | 2 channels, current/voltage |
| Analog Output Resolution | 12-bit |
| Analog Output Range | 4–20 mA, 0–5 VDC |
| Maximum PID Loops | 8 |
| High-Speed Input Points | 4 |
| Real-Time Clock/Calendar | Yes |
| Battery Backup | Yes (D2-BAT-1 purchased separately) |
| Maximum Expansion Modules | 8 |
| Mounting | DIN rail |
| Weight | 0.15 lbs |
Information About C0-12DRE-D
The C0-12DRE-D is part of the CLICK Ethernet Analog series, providing 8K steps of ladder program memory and 16 KB of user data memory. It supports ladder programming using CLICK programming software version 2.20 or later and includes built-in Ethernet, RS-232, and RS-485 communication ports for Modbus TCP, Modbus RTU, ASCII, and EtherNet/IP messaging. The unit features a real-time clock/calendar, retentive memory, and battery backup capability for maintaining system data. Designed for expandable configurations, it supports up to eight additional modules and includes high-speed counting, PID control (up to 8 loops), and advanced measurement functions.
Key Features:
-
24 VDC Operation: Designed for DC-powered industrial control systems.
-
Integrated Ethernet and Serial Ports: Supports Modbus TCP, Modbus RTU, ASCII, and EtherNet/IP communication.
-
Built-In Discrete and Analog I/O: Includes 4 DC inputs, 4 relay outputs, and 2 analog inputs and outputs.
-
8K Step Ladder Memory: Provides program storage with 16 KB user data memory.
-
High-Speed Input Capability: Supports high-speed counters, interval, duration, and frequency measurement.
-
PID Control Support: Handles up to 8 PID loops for process control applications.
-
Real-Time Clock and Retentive Memory: Maintains time-based functions and stored data during power cycles.
-
Expandable System Design: Allows up to 8 expansion modules for increased I/O capacity.
The C0-12DRE-D delivers the reliability and precision required for compact industrial automation and machine control applications.
