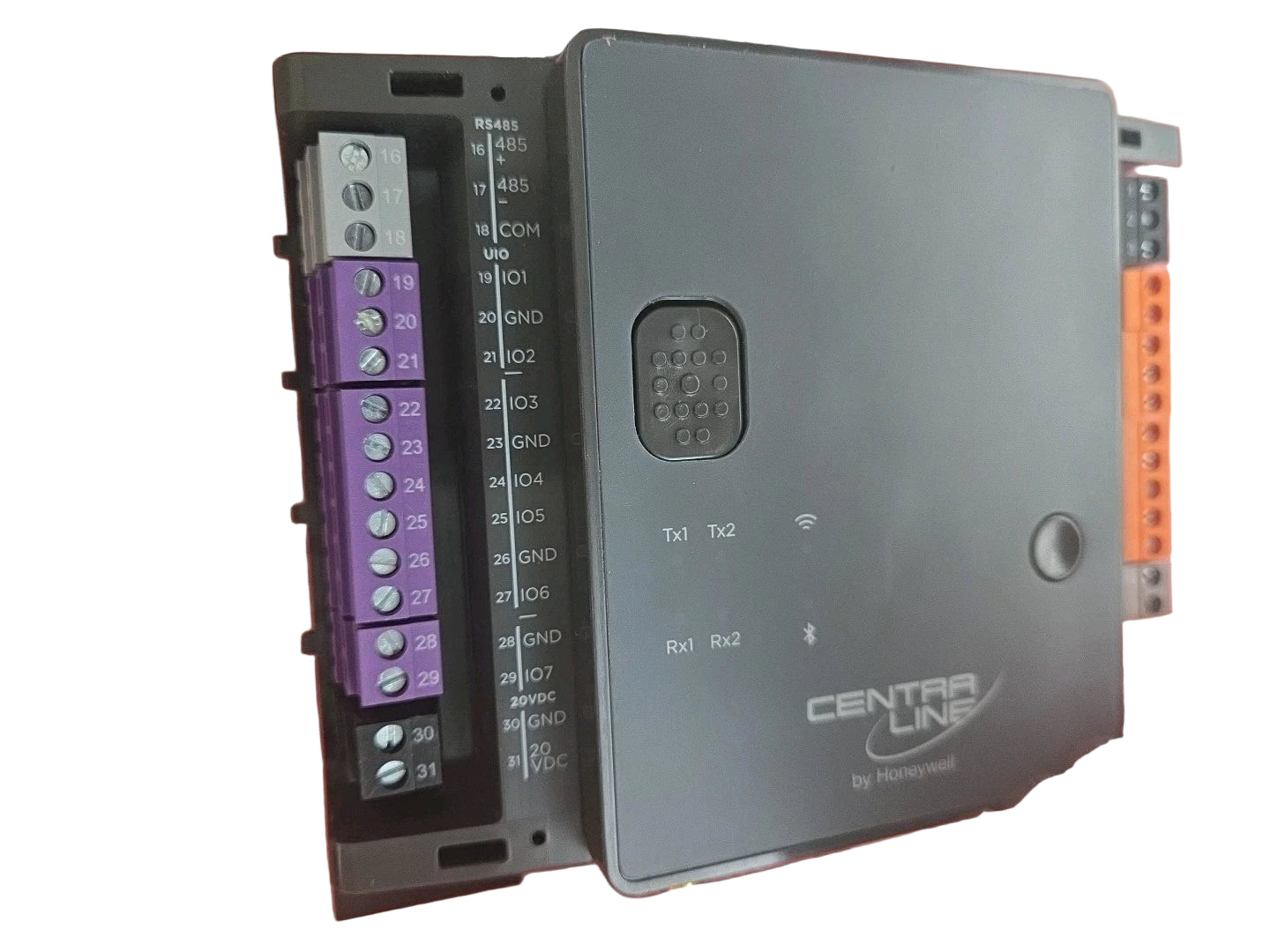

CLMEVA75IB24NM | Honeywell MERLIN NX VAV Controller 7 UIO 5 SSR BACnet IP/MSTP
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: CLMEVA75IB24NM
Description
The Honeywell CLMEVA75IB24NM is an advanced VAV (Variable Air Volume) controller featuring 7 universal I/O and 5 solid-state relay outputs, designed for BACnet IP / MS/TP communication and BLE support. This MERLIN NX series unit offers programmable control of VAV dampers and integrated airflow sensing for modern HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | CLMEVA75IB24NM |
| Subcategory | VAV Controller |
| Series | MERLIN NX |
| Supply Voltage | 24 VAC (20-30 VAC class 2) |
| Universal I/O | 7 UIO |
| Solid-State Relay Outputs | 5 SSR |
| Auxiliary Supply | 20 VDC @ 75 mA |
| Integrated Actuator Torque | 44 in-lb (5 Nm) |
| Actuator Runtime | 90 s @ 60 Hz / 108 s @ 50 Hz |
| Differential Pressure Sensor | ±500 Pa span, ±3% accuracy |
| Communications | BACnet IP (10/100 Mbps), BACnet MS/TP, Sylk™, Modbus |
| Bluetooth Support | BLE enabled for mobile balancing |
| Mounting Shaft | Round 8-16 mm |
| Operating Temperature | Typical HVAC range (refer to datasheet) |
| Application | Variable air volume dampers, demand-controlled ventilation |
| Weight | Approximate field module |
Information About CLMEVA75IB24NM
The CLMEVA75IB24NM belongs to Honeywell’s MERLIN NX family of VAV controllers, engineered to provide flexible HVAC system control with integrated actuator, airflow sensor, and network communications. It supports BACnet IP as the backbone bus, MS/TP and Sylk bus for wall-module integration, and Modbus for third-party device interfacing. Supplied with 24 VAC power input, the controller includes 7 universal inputs/outputs configurable as analog or binary and 5 SSR outputs for high-current switching. The integrated actuator offers 44 in-lb (5 Nm) torque and supports 90 sec runtime at 60 Hz. Its built-in field-replaceable differential pressure sensor enables pressure-independent VAV performance.
Key Features:
- Seven Universal Inputs/Outputs (UIO): Configurable for voltage, current, binary or pulse signals to handle diverse building automation tasks.
- Five Solid-State Relay (SSR) Outputs: High-reliability switching outputs for fans, actuators or other loads without mechanical wear.
- Integrated Actuator & Airflow Sensor: Built-in damper actuator with feedback and replaceable differential pressure sensor for accurate VAV control.
- BACnet IP & MS/TP Network Communications: Supports IP backbone (10/100 Mbps) and MS/TP for flexible integration into contemporary BMS architectures.
- Sylk™ Bus & Modbus Client Support: Facilitates connection to Honeywell Sylk wall modules and Modbus devices for extended system interoperability.
- Bluetooth Low Energy (BLE) Support: Enables mobile device commissioning, balancing and diagnostics without opening the ceiling plenum.
- 24 VAC Power Supply with Auxiliary 20 VDC Output: Standard building supply voltage with onboard auxiliary output to power field devices.
- High Application Flexibility: Programming via Niagara 4 platform, enabling custom control logic and free-programmability for advanced HVAC sequences.
- Field-Replaceable Pressure Sensor: Differential pressure sensor (±500 Pa span, ±3% accuracy) allows quick service or retrofit without replacing the entire controller.
The CLMEVA75IB24NM delivers the control capability, network connectivity and serviceability required for high-performance modern VAV installations.
