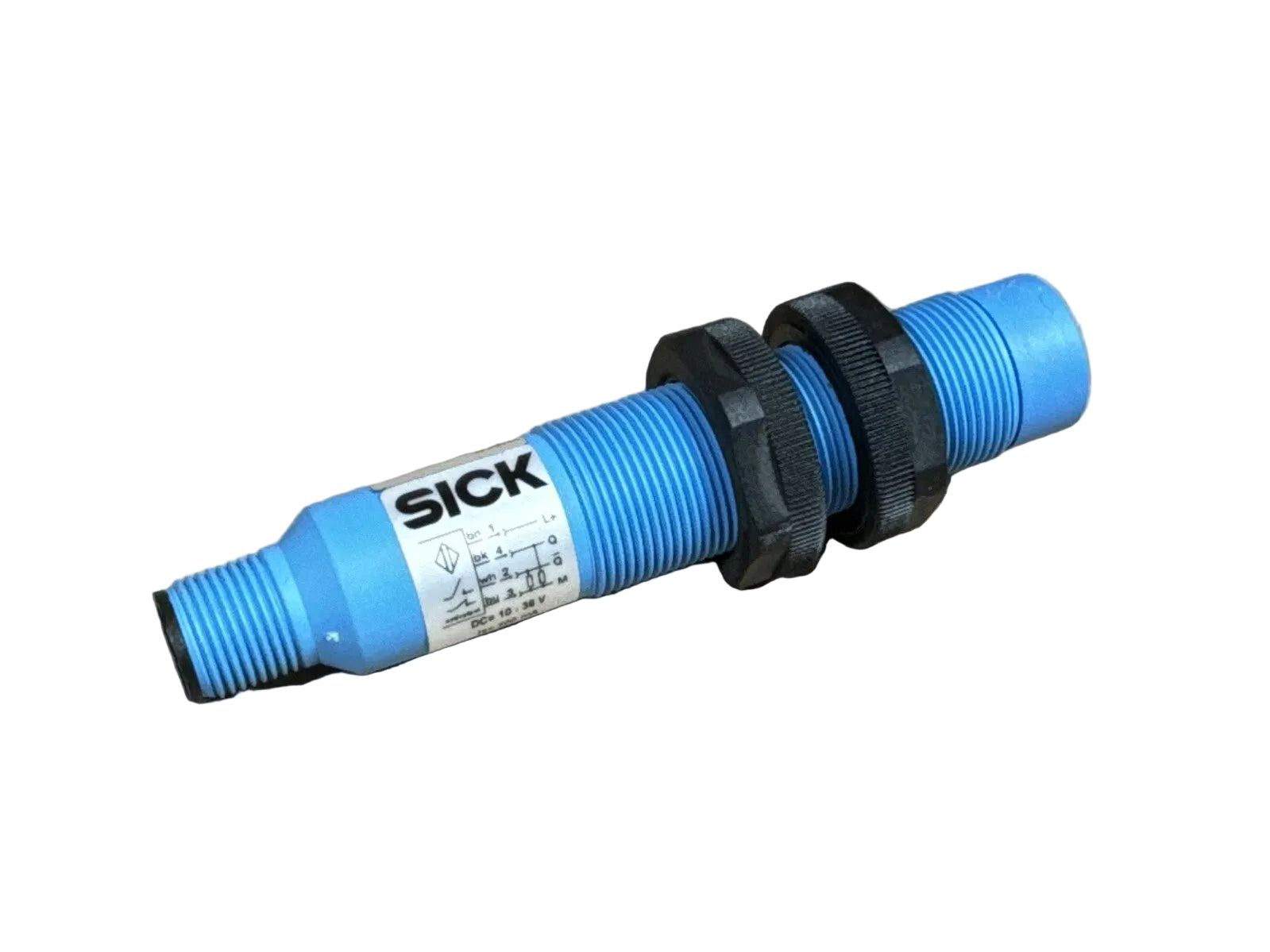

CM18-12NPP-KC1 | SICK Capacitive Proximity Sensor M18 PNP 12 mm
- Regular price
- $124.00
- Sale price
- $124.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CM18-12NPP-KC1
Description
The SICK CM18-12NPP-KC1 is a capacitive proximity sensor designed for reliable non-contact detection of a wide range of materials, including solids and liquids. With an adjustable sensing range up to 12 mm and a robust M18 cylindrical housing, it delivers stable performance in industrial automation environments. This sensor is well suited for level detection, presence monitoring, and material sensing applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Sensors |
| Part Number | CM18-12NPP-KC1 |
| Subcategory | Capacitive Proximity Sensors |
| Sensor Type | Capacitive proximity sensor |
| Housing Design | Cylindrical threaded |
| Thread Size | M18 × 1 |
| Housing Diameter | 18 mm |
| Installation Type | Non-flush |
| Sensing Range (Sn) | 3–12 mm |
| Safe Sensing Range (Sa) | 8.64 mm |
| Output Type | PNP |
| Output Function | Complementary |
| Electrical Connection | M12 male connector, 4-pin |
| Supply Voltage | 10–36 V DC |
| Current Consumption | Approx. 10 mA |
| Switching Frequency | > 30 Hz |
| Adjustment Method | Potentiometer, 270° |
| Enclosure Rating | IP67 |
| Housing Material | Plastic, PBT |
| Operating Temperature | -25 °C to +80 °C |
| Housing Length | 91.5 mm |
| Weight | Approx. 120 g |
Information About CM18-12NPP-KC1
The CM18-12NPP-KC1 belongs to SICK’s CM capacitive sensor family, engineered for versatile detection tasks beyond metallic targets. It operates on a capacitive sensing principle, allowing detection of materials such as plastic, glass, wood, liquids, and powders. Sensitivity is adjustable via an integrated potentiometer, enabling precise adaptation to different media and installation conditions. Its durable housing, integrated protection functions, and IP67 enclosure rating support continuous use in demanding industrial environments.
Key Features:
- Capacitive Proximity Sensing: Detects a wide variety of materials, including non-metallic objects and liquids.
- Adjustable Sensing Range: Supports detection from 3 mm up to 12 mm for flexible application setup.
- M18 Cylindrical Housing: Standard threaded design enables easy mechanical integration.
- Non-Flush Installation: Optimized for applications requiring extended sensing distance.
- PNP Switching Output: Compatible with standard PLC and industrial control systems.
- Complementary Output Function: Provides flexible signal logic for automation circuits.
- Potentiometer Sensitivity Adjustment: 270° adjustment range for precise tuning.
- High Environmental Protection: IP67-rated enclosure for dust and moisture resistance.
- Integrated Circuit Protection: Includes short-circuit, reverse polarity, and power-up pulse protection.
- Wide Temperature Range: Designed for stable operation in varying industrial conditions.
The CM18-12NPP-KC1 delivers the reliability and precision required for industrial capacitive sensing and material detection applications.
