CM5-T10W | Automation Direct Touch Screen HMI

Description

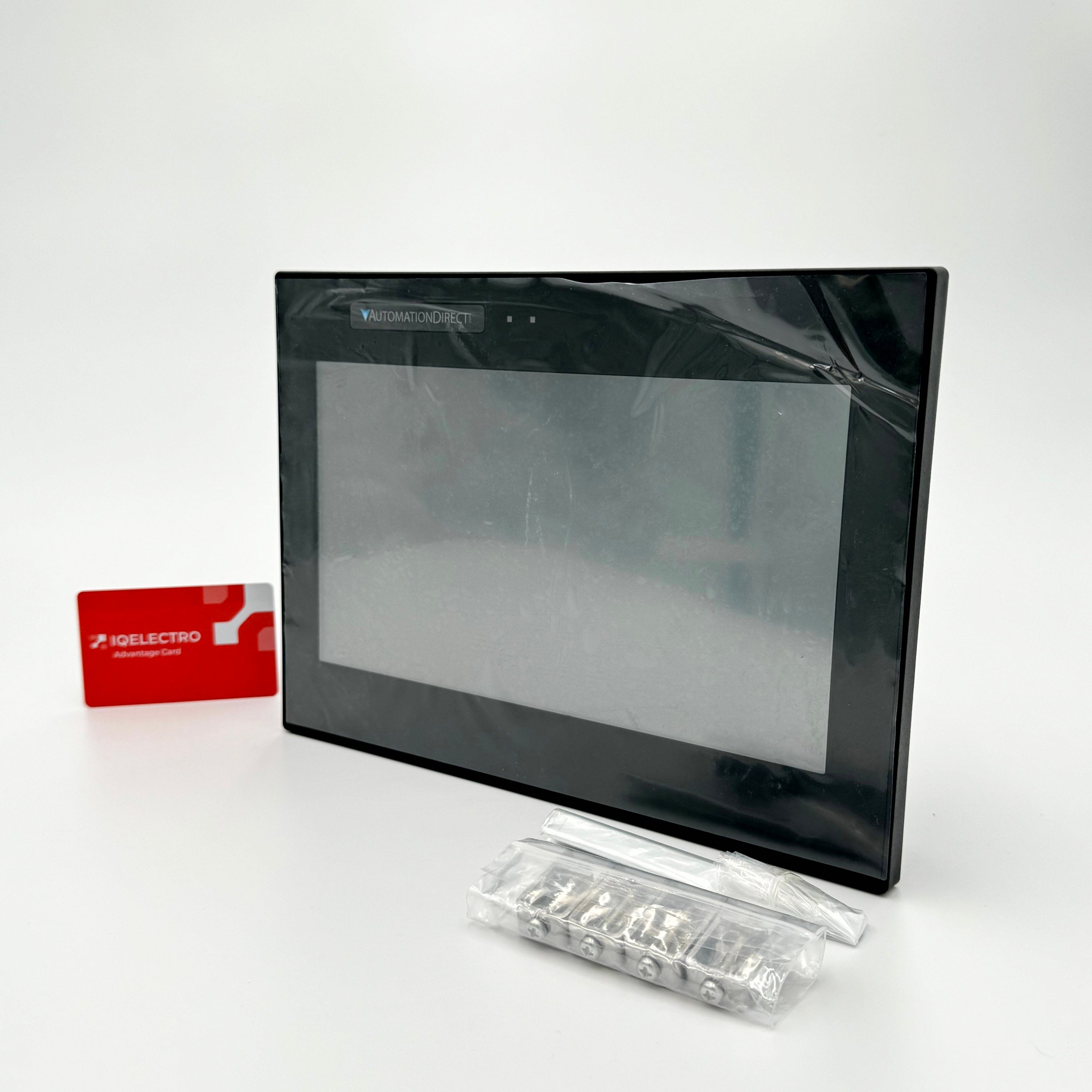

The CM5-T10W is a touch screen HMI designed for industrial applications. It features a touch interface for user interaction and control. The unit is used for monitoring and managing automated processes in various industrial environments. It is designed for panel mounting and provides reliable performance for control system integration.
 effectively.

Technical Specifications

Information About CM5-T10W

The CM5-T10W is a robust and versatile Human-Machine Interface (HMI) designed to meet the demands of industrial automation environments. As part of the HMI / MMI / OIT category, it provides a user-friendly operator interface suitable for various monitoring and control applications. Manufactured under the C-more brand and part of the CM5 series, this HMI offers enhanced performance, efficient processing, and advanced graphical display capabilities tailored to modern industrial requirements.

The CM5-T10W features a 10.1-inch color TFT LCD display with a widescreen aspect ratio. The viewable size of 10.1 inches provides ample display real estate for operators to monitor processes and visualize data. With a resolution of 1024 x 600 pixels and a display standard of WSVGA, the CM5-T10W ensures clear and detailed graphical representation of control elements and system data. It supports 16.7 million colors, providing vivid and accurate color representation that improves readability and operator interaction, especially in applications requiring color differentiation for process status or alarms.

The touch panel is of the analog resistive type, which provides reliable and responsive touch performance even in harsh industrial environments. Analog resistive touch screens are known for their durability and resistance to contaminants such as dust and liquids, making the CM5-T10W suitable for use in various demanding applications. The screen supports both landscape and portrait orientations, allowing flexibility in panel layout and installation, making it adaptable to various system configurations.

In terms of brightness, the CM5-T10W offers 315 nits, ensuring that the display remains visible in both well-lit and dimly lit environments. The display is powered by an LED backlight, which provides long-lasting illumination with lower power consumption compared to traditional backlighting methods. LED backlights are also known for their reliability and extended lifespan, making them ideal for continuous operation in industrial settings where downtime must be minimized.

The CM5-T10W is powered by a 1.6 GHz quad-core CPU, ensuring fast and efficient processing of graphical and control tasks. The high-performance processor allows for seamless operation of complex HMI applications, supporting fast data processing, graphical rendering, and real-time system updates. This processing power ensures that the HMI can handle intensive automation tasks without lag, contributing to improved operator efficiency and system performance.

The unit operates on an external power supply of 12-24 VDC, making it compatible with a wide range of industrial power systems. This wide voltage range ensures that the CM5-T10W can be easily integrated into existing setups without the need for additional power conversion equipment, simplifying installation and reducing overall system costs.

The CM5-T10W is built with durability in mind, featuring a housing rated NEMA 4/4X, which provides protection against environmental factors such as dust, water, and corrosive materials. The NEMA 4/4X rating ensures that the unit can be deployed in harsh environments, including those requiring washdown or exposure to moisture. In addition to the NEMA rating, the CM5-T10W is IP65-rated, further ensuring its resistance to dust and water ingress. This level of protection allows the HMI to operate reliably in challenging environments, such as food processing, pharmaceutical manufacturing, and outdoor industrial applications.

Designed for indoor use, the CM5-T10W must be installed in a controlled environment, free from extreme temperatures and humidity. It is suitable for mounting in control panels and other enclosures that meet at least IP54 protection standards, ensuring additional environmental protection and long-term reliability in demanding applications.

The CM5-T10W supports panel mounting, providing secure and reliable installation in various industrial control systems. Its compact size and robust design make it ideal for installations where space is limited, while the panel-mount configuration ensures that the unit is securely integrated into the control system, reducing the risk of accidental damage or tampering.

In summary, the CM5-T10W is a highly reliable and efficient HMI solution designed for industrial automation environments. Its 10.1-inch color TFT LCD display, widescreen format, and high resolution offer clear and detailed visual feedback, while its analog resistive touch panel ensures reliable performance in tough environments. The unit’s 1.6 GHz quad-core processor delivers fast and efficient processing for real-time monitoring and control applications, and the LED backlight provides long-lasting and energy-efficient illumination. With its NEMA 4/4X and IP65-rated housing, the CM5-T10W is built to withstand harsh conditions, making it suitable for a wide range of industrial applications. The wide power input range, flexible installation options, and rugged construction make the CM5-T10W a dependable choice for operators seeking an HMI that can meet the demands of modern automation systems.
