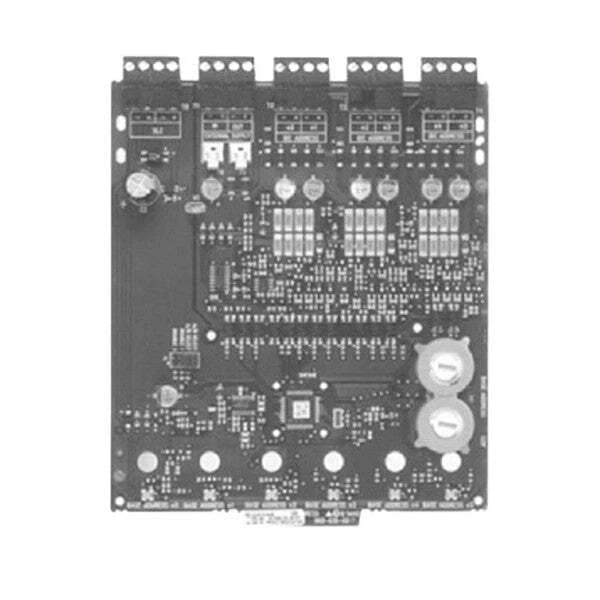

CMF-300-6 | Fire-Lite Six-Circuit Supervised Control Module for NACs
- Regular price
- $974.00
- Sale price
- $974.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CMF-300-6
Description
The Fire-Lite CMF-300-6 is a six-circuit supervised control module that enables addressable alarm systems to monitor and control wiring for load devices such as horns, strobes, and bells. Designed for reliable performance, it supervises external power circuits and ensures proper operation under both AC and DC switching applications. This module integrates seamlessly with Fire-Lite intelligent panels, providing flexibility and safety in fire alarm installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Safety |
| Part Number | CMF-300-6 |
| Subcategory | Control Panel Module |
| Outputs | Six Class B (Style B) or three Class A (Style D) circuits |
| Standby Current | 2.25 mA (all addresses enabled) |
| Alarm Current | 35 mA (all six NACs active, LEDs on) |
| Operating Voltage | 15–32 VDC |
| Relay Contact Ratings | 30 VDC, 110 VAC |
| Current Ratings | 3.0 A max @ 30 VDC resistive; 0.9 A max @ 70.7 VAC resistive |
| Temperature Range (UL) | 32°F to 120°F (0°C to 49°C) |
| Temperature Range (EN54) | –10°C to +55°C |
| Humidity | 10–85% (UL), 10–93% (EN54), non-condensing |
| Wire Gauge | 12–18 AWG |
| Mounting Options | BB-2F, BB-6F, BB-25 cabinets, CHS-6 chassis |
| Accessory Support | SYNC-1 for System Sensor SpectrAlert® synchronization |
| Protocols Supported | LiteSpeed®, CLIP |
| Listings & Approvals | UL, ULC, FM, CSFM, MEA |
| Dimensions | 6.8" H × 5.8" W × 1.25" D (172 × 147 × 32 mm) |
| Weight | 1.1 lbs (0.5 kg) |
Information About CMF-300-6
The CMF-300-6 is part of Fire-Lite’s intelligent supervised control module series, providing six Class B (Style B) or three Class A (Style D) notification appliance circuits (NACs). It uses a common SLC input, with each output capable of being individually supervised and controlled. Short-circuit monitoring prevents activation if a fault is detected, adding an extra layer of protection to connected devices. Designed for use with MS-9050UD, MS-9200UDLS, and MS-9600(UD)LS systems, the module offers LiteSpeed® or CLIP communication protocol compatibility, ensuring fast, reliable data exchange with control panels.
Key Features
- Six Supervised Circuits: Provides six Class B or three Class A supervised outputs for horns, strobes, and bells.
- Short-Circuit Protection: Prevents activation if a fault exists on the connected NAC.
- Status Indicators: Panel-controlled LEDs display circuit status for simplified troubleshooting.
- Flexible Addressing: Rotary switches assign the first module address; subsequent addresses are auto-assigned.
- Accessory Support: Compatible with SYNC-1 card for synchronization of SpectrAlert® devices.
- Mounting Options: Supports BB-2F, BB-6F, BB-25 cabinets, or CHS-6 chassis for modular installation.
- Wide Wire Range: Accepts 12–18 AWG for ease of field wiring.
- Listings and Approvals: UL, ULC, FM, CSFM, and MEA approved for regulated fire safety compliance.
The CMF-300-6 delivers the reliability and precision required for supervised notification appliance control in modern fire alarm systems.
