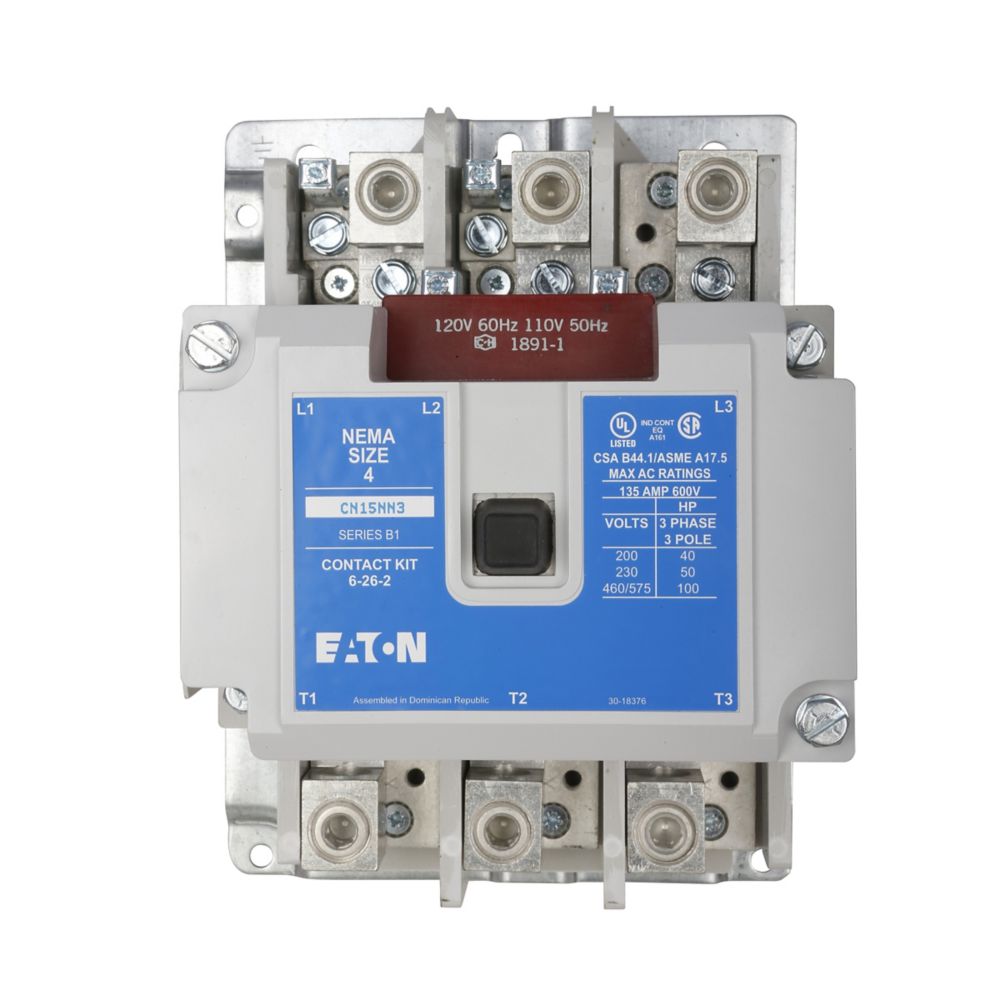

CN15NN3A | Eaton Freedom NEMA Motor Control Contactor
- Regular price
- $2,954.00
- Sale price
- $2,954.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CN15NN3A
Description
The CN15NN3A is an Eaton Freedom NEMA Motor Control Contactor. It is a full voltage non-reversing contactor with a NEMA Size 4 open enclosure, rated for 135A. Configured as a three-pole contactor, it operates with coil voltages of either 120VAC at 60Hz or 110VAC at 50Hz.
Technical Specifications
|
PRODUCT NAME |
Eaton Freedom NEMA motor control contactor |
|
CATALOG NUMBER |
CN15NN3A |
|
UPC |
782113604138 |
|
PRODUCT LENGTH/DEPTH |
7.25 in |
|
PRODUCT HEIGHT |
9.1 in |
|
PRODUCT WIDTH |
7.05 in |
|
PRODUCT WEIGHT |
19.45 lb |
|
NEMA FRAME SIZE |
NEMA Size 4 |
|
RELAY |
None |
|
TYPE |
Contactor |
|
FULL LOAD CURRENT RANGE |
120 V at 60 Hz, 110 V at 50 Hz |
|
CONFIGURATION |
Non-reversing |
|
PHASE |
Three-phase |
|
AMPERAGE RATING |
135 A |
|
SIZE |
4 |
|
HORSEPOWER |
40 hp at 208 V, 50 hp at 240 V, 100 hp at 480/600 V |
|
OVERLOAD RELAY |
None |
|
COIL VOLTAGE |
120/60 or 110/50 |
Information About CN15NN3A
The CN15NN3A is an Eaton Freedom NEMA Motor Control Contactor. Designed and manufactured by Eaton, it falls under the category of NEMA contactors, specifically engineered for motor control applications. This contactor is designated as a full voltage non-reversing type, indicating its functionality in controlling the flow of electrical power to the motor without the capability for reversing its direction.
Physically, the CN15NN3A is housed within a NEMA Size 4 open enclosure, ensuring compatibility with standard NEMA size classifications. This enclosure provides protection for internal components and facilitates installation within electrical systems. The contactor is rated for a maximum current of 135 A, making it suitable for applications requiring substantial power handling capabilities.
Electrically, the CN15NN3A is configured as a three-pole contactor. This configuration allows for the control of three-phase electrical systems commonly found in industrial and commercial settings. The coil voltage options available for this contactor are 120 volts at 60 Hz or 110 volts at 50 Hz, providing flexibility to accommodate different power supply specifications.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
