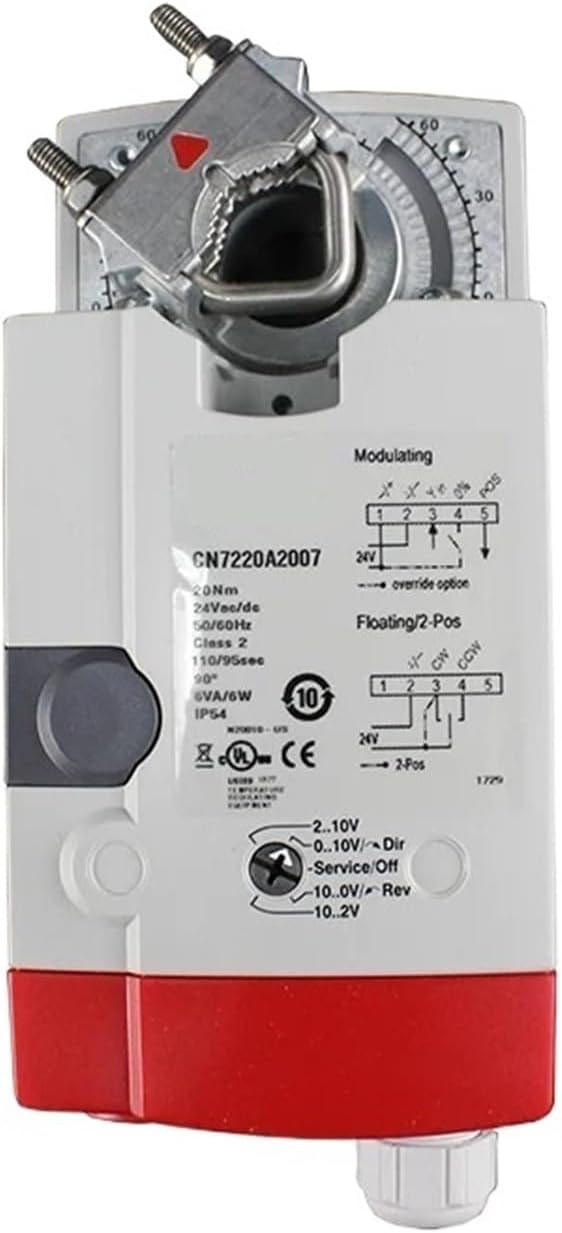

CN7220A2007 | Honeywell Modulating or On-Off Damper Actuator 20Nm, 24V AC/DC, Non-Spring Return
- Regular price
- $340.00
- Sale price
- $340.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CN7220A2007
Description
The Honeywell CN7220A2007 is a non-spring return damper actuator designed for precision airflow control in HVAC systems. It provides a torque output of 20 Nm and operates on 24V AC/DC power, offering selectable modulating or on/off control for flexible integration into building automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | CN7220A2007 |
| Subcategory | Damper Actuator |
| Torque Output | 20 Nm |
| Power Supply | 24V AC/DC (Class 2) |
| Operation Type | Non-spring return |
| Control Type | Selectable modulating or on/off control |
| Control Signal | Selectable 4–20 mA or 2–10 VDC |
| Position Feedback | 2–10 VDC feedback output |
| Auxiliary Switch | Not included |
| Rotation Direction | Adjustable via control signal |
| Motor Type | Synchronous motor with electronic control |
| Connection Type | Prewired cable leads or terminal block (model dependent) |
| Protection Class | IP54 or equivalent (standard actuator housing) |
| Ambient Operating Temperature | -10°C to +55°C typical |
| Application | HVAC air dampers, ventilation systems, and air handling units |
| Housing Material | Durable reinforced plastic and metal gear assembly |
| Weight | 3.00 lbs |
Information About CN7220A2007
The CN7220A2007 is part of Honeywell’s CN7000 series of damper actuators, built for accurate and efficient airflow management in HVAC systems. It delivers a 20 Nm torque capacity and can operate in either modulating or on/off mode, providing flexibility for both simple and advanced control applications. The actuator accepts 4–20 mA or 2–10 VDC control signals and provides a matching 2–10 VDC feedback for position monitoring. Its non-spring return design is ideal for systems that maintain a fixed position when power is removed, and its 24V AC/DC operation ensures compatibility with Class 2 control circuits in commercial buildings.
Key Features
- Selectable Control Modes: Can function as either a modulating or on/off actuator, allowing adaptation to various HVAC control strategies.
- High Torque Output: Provides a consistent 20 Nm of torque for reliable damper movement in medium to large air handling units.
- Dual Signal Compatibility: Accepts both 4–20 mA current and 2–10 VDC voltage control inputs for integration with a wide range of controllers.
- Position Feedback: Offers a 2–10 VDC output signal to indicate damper position, enabling real-time monitoring and system diagnostics.
- Non-Spring Return Design: Maintains damper position when de-energized, suitable for applications not requiring automatic return.
- Durable Construction: Engineered with reinforced housing and precision gearing for long-term reliability in demanding HVAC environments.
- Low-Voltage Operation: Designed for 24V AC/DC Class 2 circuits to ensure safe, efficient, and standardized installation.
- Maintenance-Free Performance: Electronic drive system provides smooth, quiet operation with minimal mechanical wear.
The CN7220A2007 delivers the reliability and precision required for effective air control in ventilation, heating, and cooling systems within commercial and industrial facilities.
