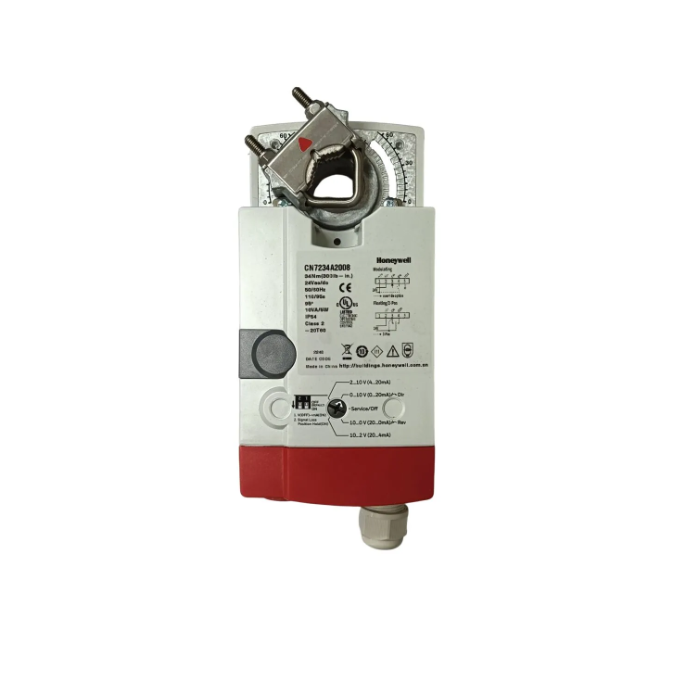

CN7234A2008 | Honeywell 24 V Direct-Coupled Damper Actuator 34 Nm with Dual Aux Switches
- Regular price
- $422.00
- Sale price
- $422.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: CN7234A2008
Description
The Honeywell CN7234A2008 is a 24 V AC/DC direct-coupled damper actuator designed for precise control of HVAC dampers in ventilation and air-handling systems. With a torque rating of 34 Nm (300 lb-in) and dual internal auxiliary switches, it ensures accurate positioning and reliable feedback for automated airflow control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Pneumatics |
| Part Number | CN7234A2008 |
| Subcategory | Pneumatic Actuator |
| Type | Direct-Coupled Damper Actuator |
| Torque Rating | 34 Nm (300 lb-in) |
| Power Consumption | 6 VA / 3 W |
| Supply Voltage | 24 Vac/dc ±15%, 50/60 Hz |
| Auxiliary Switches | Two internal auxiliary switches |
| Ambient Operating Limits | –20 °C to +60 °C (–5 °F to +140 °F) |
| Ambient Storage Limits | –40 °C to +80 °C (–40 °F to +175 °F) |
| Duty Cycle | Continuous |
| Lifetime Rating | 60,000 full strokes / 1.5 million repositions |
| Certification | CE and UL |
| Mounting | Direct on damper shaft |
| Control Signal | Floating or on/off (depending on model configuration) |
| Enclosure | Die-cast housing with sealed electronics |
| Weight | 1.35 kg |
Information About CN7234A2008
The CN7234A2008 is part of Honeywell’s CN7000 Series of direct-coupled actuators built for robust and efficient damper control in commercial HVAC systems. Operating on 24 Vac/dc ±15% at 50/60 Hz, this actuator delivers a powerful 34 Nm torque output while maintaining low power consumption at only 6 VA / 3 W. The unit includes two internal auxiliary switches for end-position indication or additional control logic. Designed to withstand ambient conditions from –20 °C to +60 °C and tested for 60,000 full strokes and 1.5 million repositions, it guarantees a long operational lifespan even under heavy duty.
Key Features:
- Direct-Coupled Design: Eliminates linkages for simple, reliable damper mounting.
- High Torque Output: Provides 34 Nm (300 lb-in) of torque for medium and large damper applications.
- Dual Auxiliary Switches: Integrated switches offer position feedback or additional control flexibility.
- Low Power Consumption: Operates efficiently at just 6 VA / 3 W to reduce energy use.
- Universal 24 V AC/DC Supply: Accepts 24 Vac/dc ±15% for flexible installation across control systems.
- Durable Performance: Rated for 60,000 full-stroke cycles and 1.5 million repositions for extended service life.
- Wide Temperature Range: Operates reliably from –20 °C to +60 °C (–5 °F to +140 °F).
- Compact and Rugged Housing: Built for dependable use in demanding HVAC environments.
- Certified Quality: CE and UL-approved for safety and performance assurance.
- Maintenance-Free Operation: Precision gearing and sealed components ensure consistent performance with minimal upkeep.
The CN7234A2008 delivers the reliability and precision required for commercial damper automation and ventilation control.
