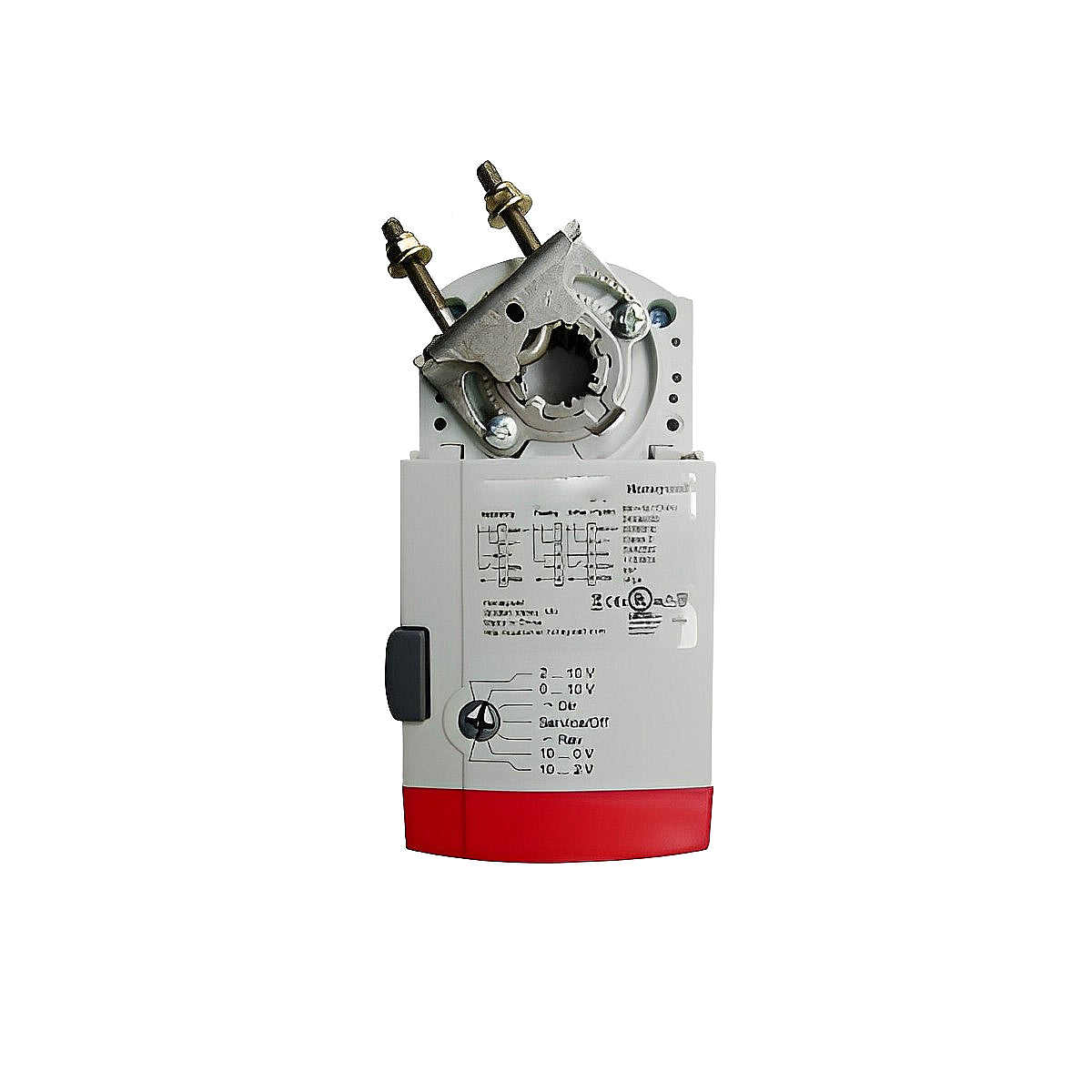

CN7510A2209 | Honeywell Non-Spring Return Damper Actuator, 24 V, 10 Nm, Modulating/Floating, with Auxiliary Switch
- Regular price
- $484.00
- Sale price
- $484.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CN7510A2209
Description
The Honeywell CN7510A2209 is a non-spring return direct-coupled damper actuator designed for modulating or floating control of HVAC dampers. Operating at 24 VAC/DC, it delivers up to 10 Nm torque with precise positioning, integrated auxiliary switches, and long mechanical life for reliable air control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Actuators |
| Part Number | CN7510A2209 |
| Subcategory | Non-Spring Return Damper Actuators |
| Type | Direct-coupled, non-spring return |
| Control Signal | Modulating (0)2–10 VDC or Floating/2-position 24 VAC/DC |
| Nominal Voltage | 24 VAC/DC (50/60 Hz) |
| Supply Voltage Range | 24 VAC/DC -15% / +20% |
| Power Consumption | 5 VA / 2 W |
| Torque Rating | 10 Nm (88 lb-in) |
| Rotation Stroke | 95° ±3° |
| Shaft Mounting | Round (3/8–5/8 in) or Square (1/4–1/2 in), 45° steps |
| Minimum Shaft Length | 1-5/8 in |
| Auxiliary Switches | 2 internal, adjustable |
| Feedback Signal | Voltage feedback (modulating) |
| Protection Rating | IP54 |
| Operating Temperature | -20…+60°C (-5…+140°F) |
| Storage Temperature | -30…+80°C (-22…+176°F) |
| Relative Humidity | 5…95%, non-condensing |
| Mechanical Lifetime | 60,000 full strokes / 1.5 million repositions |
| Mounting Position | Direct-coupled to damper shaft |
| Enclosure Material | Durable plastic housing |
| Applications | HVAC air dampers, VAV units, and air control systems |
| Weight | 1.0 lbs (approx. 0.45 kg) |
Information About CN7510A2209
The CN7510A2209 belongs to Honeywell’s CN7500 series of precision non-spring return damper actuators, engineered for modulating and floating control in commercial HVAC systems. It provides 10 Nm of torque for reliable damper movement across a 95° rotation range, ensuring accurate airflow regulation. The actuator operates on a 24 VAC/DC power supply and supports both analog (2–10 VDC) and floating control signals for flexible system compatibility. Integrated auxiliary switches provide feedback for position monitoring or additional control functions. With IP54 protection, extended mechanical life, and adaptable shaft coupling, the CN7510A2209 is suitable for a wide range of ventilation and building automation applications.
Key Features:
- Dual Control Capability: Supports both modulating (0)2–10 VDC and floating/2-position control signals for system versatility.
- High Torque Output: Provides up to 10 Nm (88 lb-in) torque, ideal for medium-to-large HVAC dampers.
- Durable Non-Spring Design: Ensures stable operation without mechanical return spring, reducing wear and maintenance.
- Integrated Auxiliary Switches: Two internal switches allow for position feedback or additional control logic.
- Extended Service Life: Rated for 60,000 full strokes and 1.5 million repositions, ensuring long-term reliability.
- Flexible Mounting: Fits round or square shafts with 45° step alignment for secure coupling.
- Wide Environmental Range: Operates between -20°C and +60°C with humidity tolerance up to 95% RH.
- Protection and Safety: IP54-rated housing shields the actuator from dust and splashing water.
The CN7510A2209 delivers the reliability and precision required for efficient damper control, airflow management, and energy optimization in HVAC automation systems.
