Consilium 5200031-01A Salwico MCP-A WP IP67 Addressable Manual Call Point
- Regular price
- $622.00
- Sale price
- $622.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5200031-01A
Description
Consilium 5200031-01A is a Salwico MCP-A addressable manual call point for fire alarm systems. Its IP67 enclosure is designed for harsh environments, including marine installations, and activation is triggered by breaking the protective glass.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Consilium |
| Category | Fire Detection Equipment |
| Part Number | 5200031-01A |
| Subcategory | Addressable Manual Call Points |
| Product Type | MCP-A WP manual call point |
| System Compatibility | Salwico Cargo, Cruise, Workboat, Yacht, RoPax, CS3000, CS3004, CS4000 |
| Nominal Voltage | 34 VDC |
| Working Voltage | 20–38 VDC |
| Supervising Current | 0.2 mA |
| Alarm Current | 2.5 mA |
| Ingress Protection | IP67 |
| Operating Temperature | −25°C to +70°C |
| Ambient Humidity | 0–95% RH |
| Housing Material | PC/ABS |
| Address Setting | DIP switch |
| Weight | 240 g |
Information About 5200031-01A

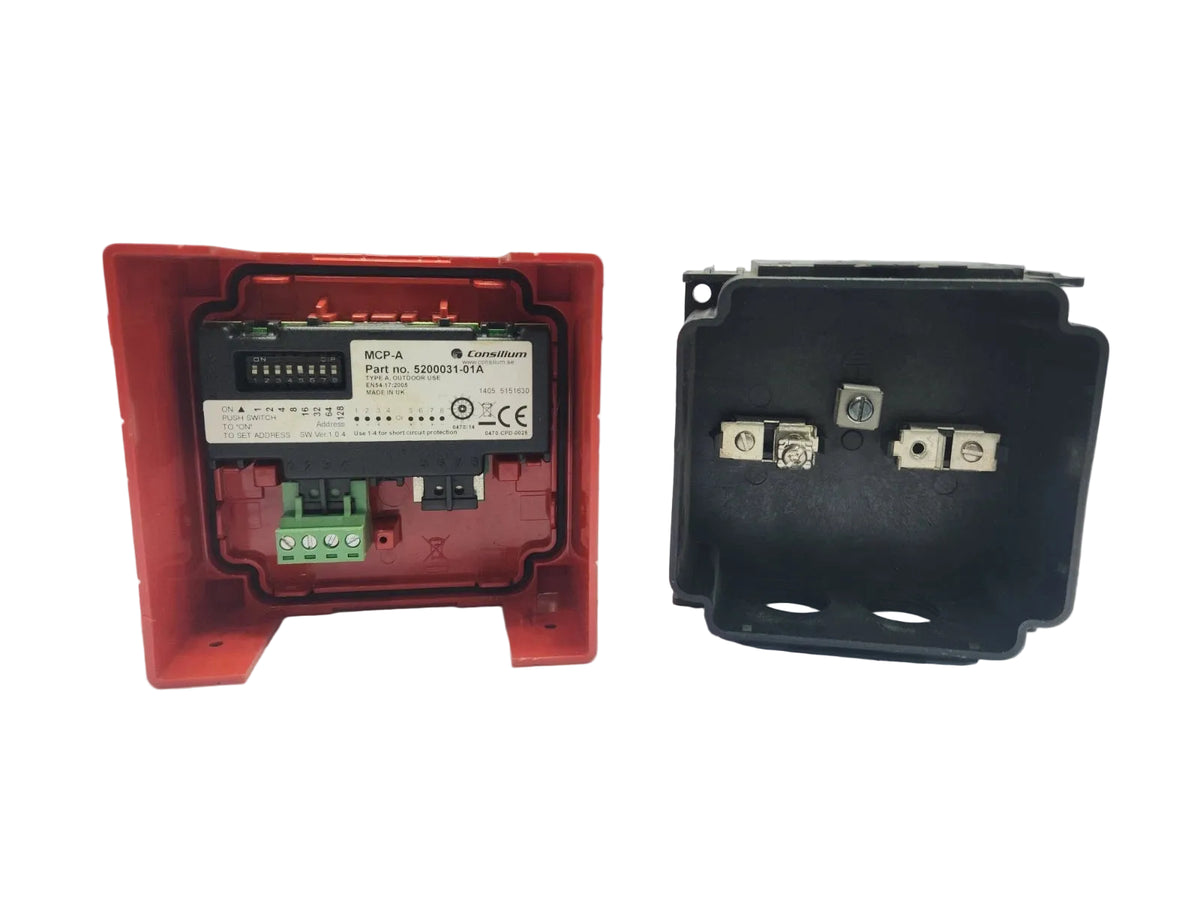

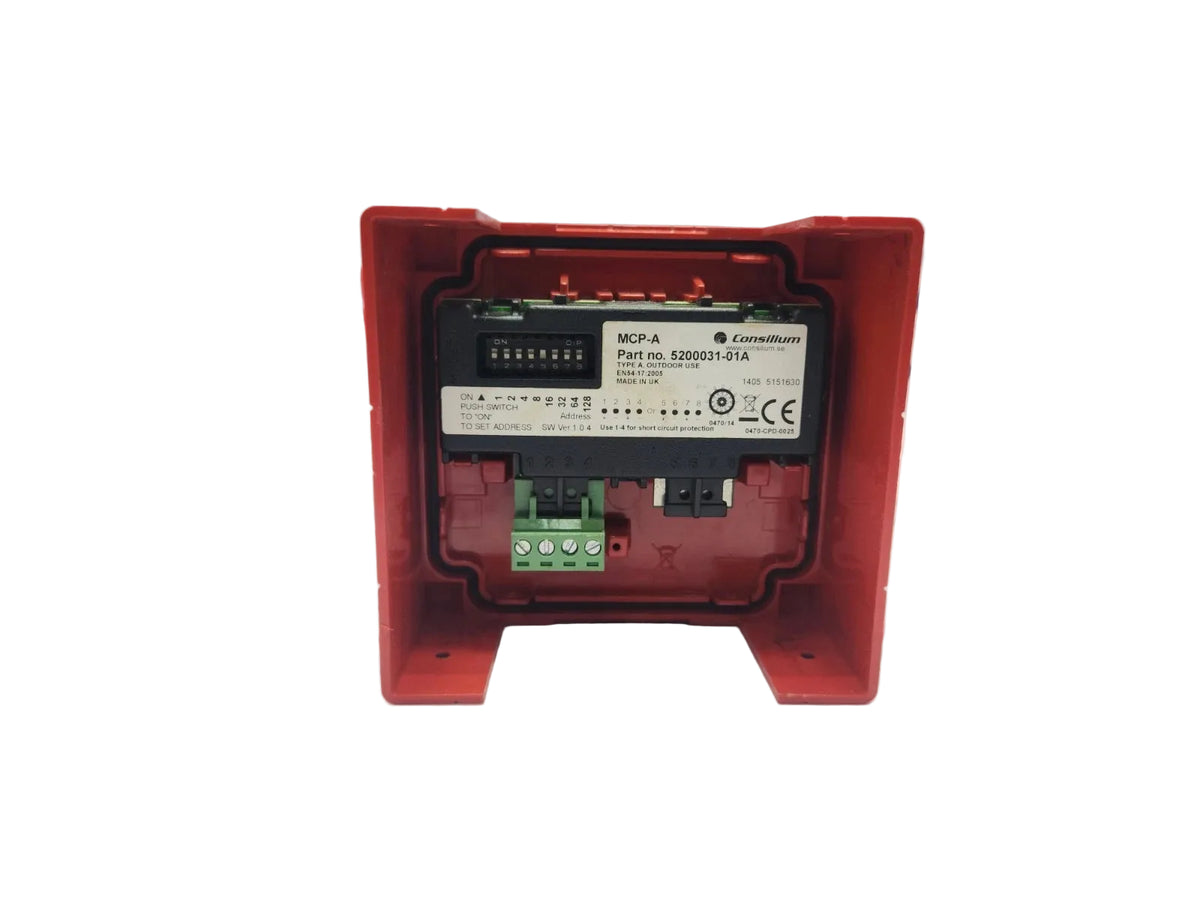

The 5200031-01A is the MCP-A WP version of Consilium’s Salwico manual call point range. It connects to compatible Salwico addressable fire alarm systems, including Salwico Cargo, Cruise, Workboat, Yacht, RoPax, CS3000, CS3004, and CS4000. The unit uses a DIP switch for address setting and has a front LED to indicate an alarm. Its PC/ABS construction and IP67 ingress protection suit installations exposed to demanding environmental conditions.
Key Features:

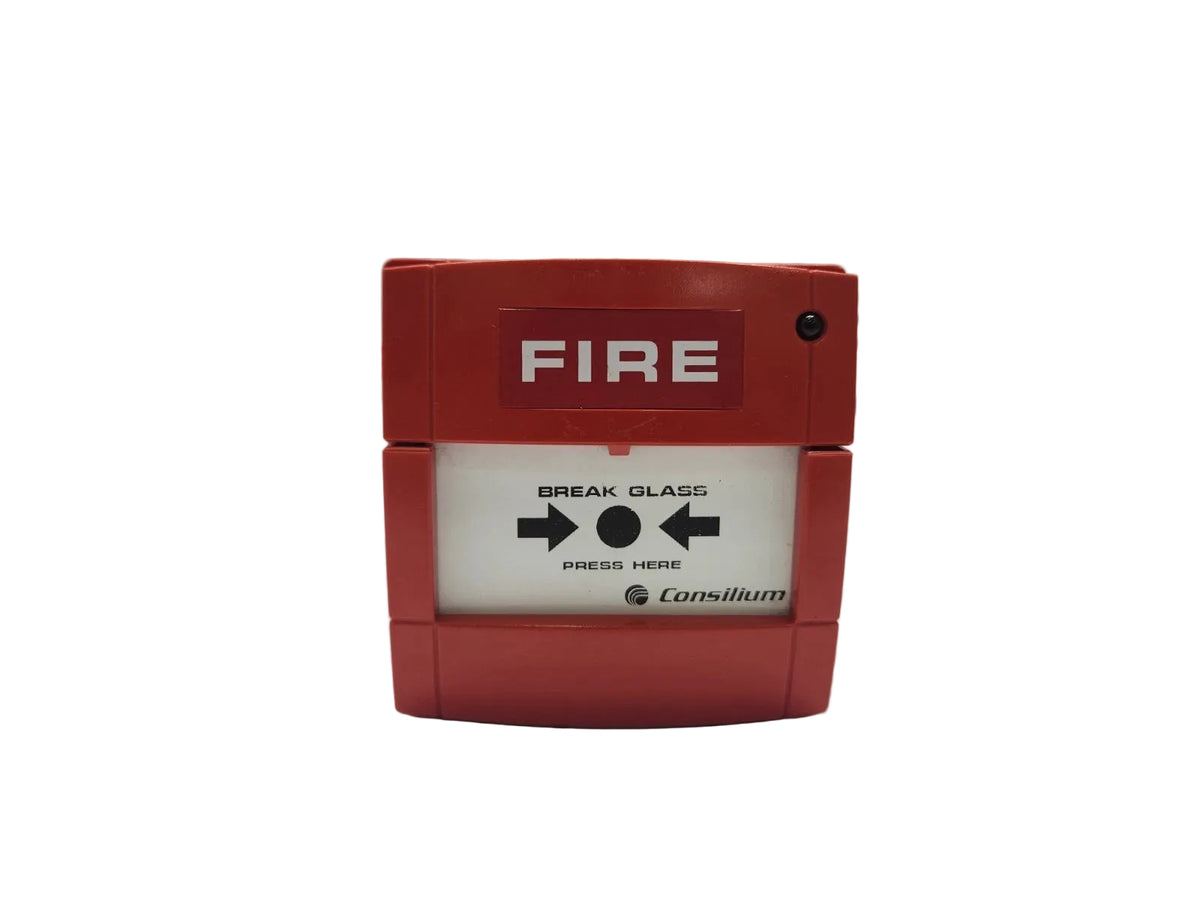

- Manual Alarm Activation: Initiates a fire alarm when the glass is pressed and broken.
- Addressable Operation: Uses DIP switch addressing for identification on compatible Salwico fire alarm systems.
- IP67 Protection: Sealed enclosure protects the device against dust ingress and water immersion under specified conditions.
- Front Alarm LED: Indicates alarm activation and remains lit until the fire alarm panel is reset.
- Protective Glass Coating: Plastic coating over the glass helps protect the operator from injury during activation.
- Short-Circuit Protection: Provides short-circuit protection through connections 1–4, according to the datasheet.
The 5200031-01A delivers the reliability and precision required for manual fire alarm activation in marine and other demanding installations.
