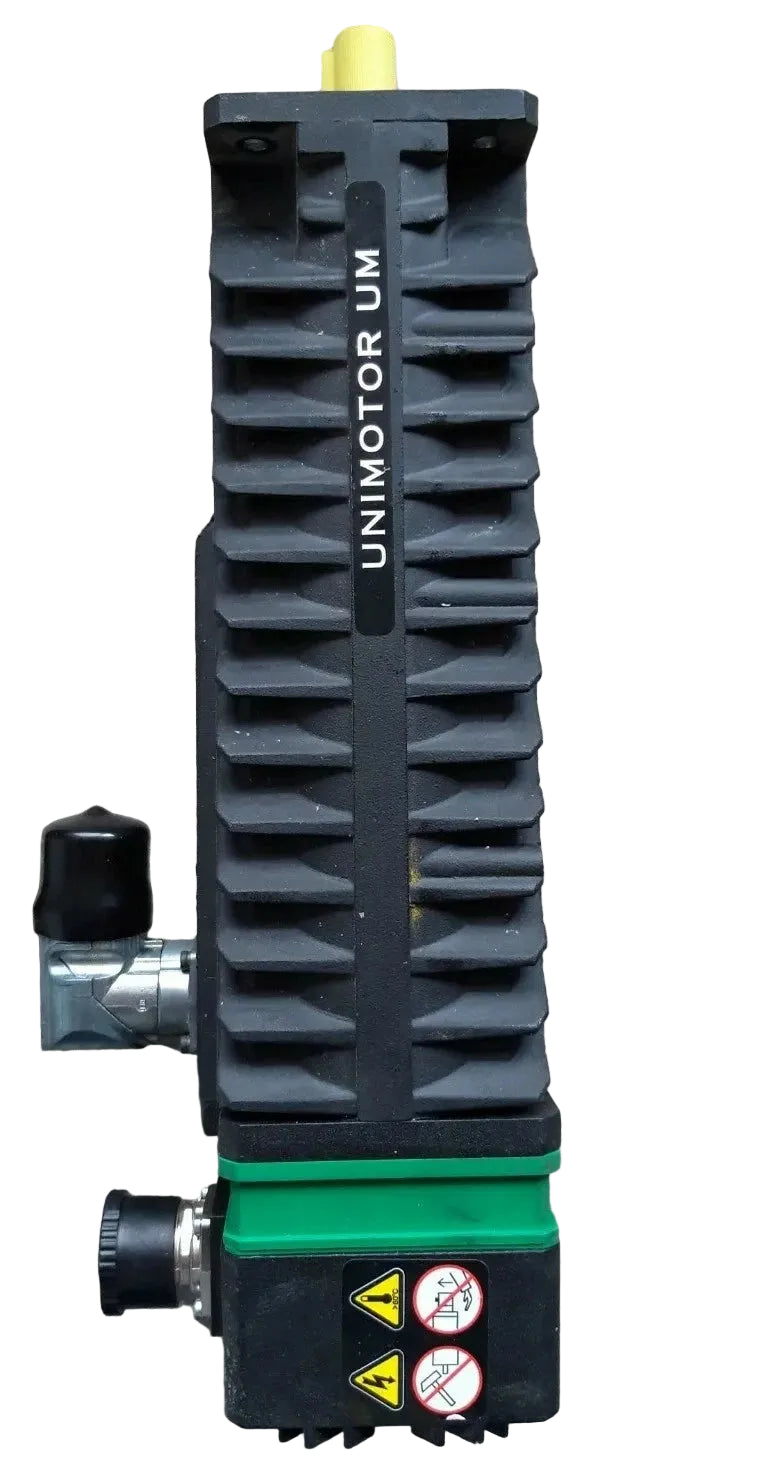

Control Techniques 75UMD300CACAA Servo Motor 3000RPM with HPS-60-7 Gear Encoder Feedback
- Regular price
- $2,437.00
- Sale price
- $2,437.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 75UMD300CACAA
Description
The Control Techniques 75UMD300CACAA is a servo motor equipped with an HPS-60-7 gear assembly, designed for precise motion control in industrial automation systems. It operates at a rated speed of 3000 rpm and delivers reliable torque performance for positioning and speed regulation tasks. The integrated incremental encoder ensures accurate feedback for closed-loop control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Control Techniques |
| Category | Motors & Motor Controls |
| Part Number | 75UMD300CACAA |
| Subcategory | Servo Motors |
| Series | UM Series |
| Frame Size | 75 mm |
| Rated Speed | 3000 rpm |
| Stall Torque | 3.6 Nm @ 2.25 A |
| Torque Constant (Kt) | 1.6 Nm/A |
| Back EMF Constant (Ke) | 98 V/Krpm |
| Feedback Type | Incremental Encoder |
| Encoder Resolution | 4096 ppr |
| Gear Type | HPS-60-7 |
| Brake | Not Installed |
| Insulation Class | Class H |
| Number of Poles | 6 |
| Motor Type | UM |
| Stator Length | C |
| Weight | 7 lbs |
Information About 75UMD300CACAA
The 75UMD300CACAA belongs to the UM series of servo motors, featuring a 75 mm frame size and a stator length optimized for balanced torque and speed characteristics. It is constructed to operate without a brake and utilizes an incremental encoder with 4096 pulses per revolution for precise motion feedback. The motor delivers a stall torque of 3.6 Nm at 2.25 A and incorporates high-performance electromagnetic constants for efficient energy conversion. When paired with the HPS-60-7 gear, it provides enhanced torque output and controlled speed reduction, making it suitable for applications requiring both precision and mechanical advantage.
Key Features:
- High Precision Feedback: Equipped with a 4096 ppr incremental encoder for accurate position and speed control
- Integrated Gear Assembly: Includes HPS-60-7 gear for torque multiplication and controlled speed output
- Rated Speed Performance: Operates at 3000 rpm for efficient motion control applications
- Strong Torque Output: Delivers 3.6 Nm stall torque at 2.25 A for reliable load handling
- Optimized Motor Constants: Features Kt of 1.6 Nm/A and Ke of 98 V/Krpm for efficient operation
- Durable Insulation Class: Class H insulation supports high thermal resistance and longevity
- Compact Frame Design: 75 mm frame size allows integration into space-constrained systems
- Six-Pole Construction: Ensures smooth operation and consistent torque delivery
The 75UMD300CACAA delivers the reliability and precision required for geared servo motor applications in industrial automation systems.
