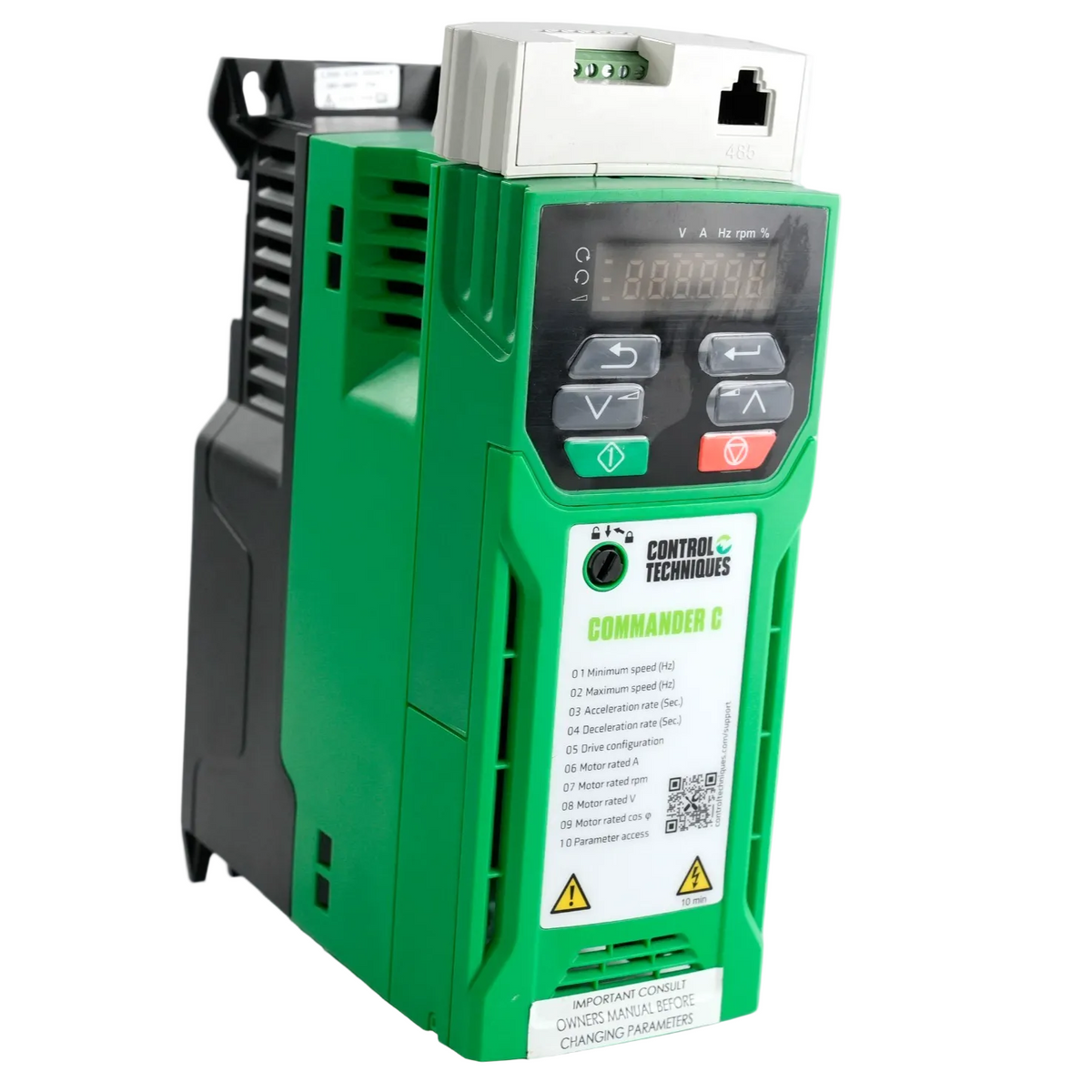

Control Techniques C300-02400041 1.5 kW Three-Phase AC Inverter Drive
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C300-02400041
Description
Control Techniques C300-02400041 is a Commander C300 AC inverter drive rated for 1.5 kW and 4.1 A. It converts three-phase 380–480 VAC input to variable-frequency output for controlling compatible AC motors.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Control Techniques |
| Category | Variable Frequency Drives |
| Part Number | C300-02400041 |
| Subcategory | AC Inverter Drives |
| Product Range | Commander C300 |
| Rated Motor Power | 1.5 kW |
| Input Voltage | 380–480 VAC |
| Input / Output Phases | 3-phase |
| Rated Current | 4.1 A |
| Control Modes | V/F and sensorless vector |
| Output Frequency Range | 0–550 Hz |
| Overload Capacity | 150% for 60 seconds |
| Safety Function | Dual Safe Torque Off |
| Enclosure Rating | IP20 |
| Frame Size | 2 |
| Weight | 1.45 kg |
Information About C300-02400041
The C300-02400041 is part of Control Techniques’ Commander C300 range of general-purpose AC drives. Its frame size 2 housing supports panel or DIN rail installation in compatible control assemblies. The drive provides V/F or sensorless vector motor control, with a fixed keypad and configurable I/O for machine operation. Integrated dynamic braking and dual Safe Torque Off functions support applications requiring braking control and a safety-related torque inhibit.
Key Features:
- 1.5 kW Motor Rating: Supports compatible three-phase AC motors rated up to 1.5 kW.
- Three-Phase Supply: Accepts 380–480 VAC three-phase input for use on industrial power systems.
- 4.1 A Output Rating: Provides a listed drive current of 4.1 A for the supported motor load.
- V/F and Sensorless Vector Control: Offers selectable motor control methods for general-purpose speed and torque applications.
- Dual Safe Torque Off: Includes dual STO functionality to inhibit motor torque when used within a suitable safety system.
- Frame Size 2 Installation: Supports DIN rail mounting or rear mounting through four fixing points.
The C300-02400041 delivers the reliability and precision required for variable-speed control of industrial AC motors.
