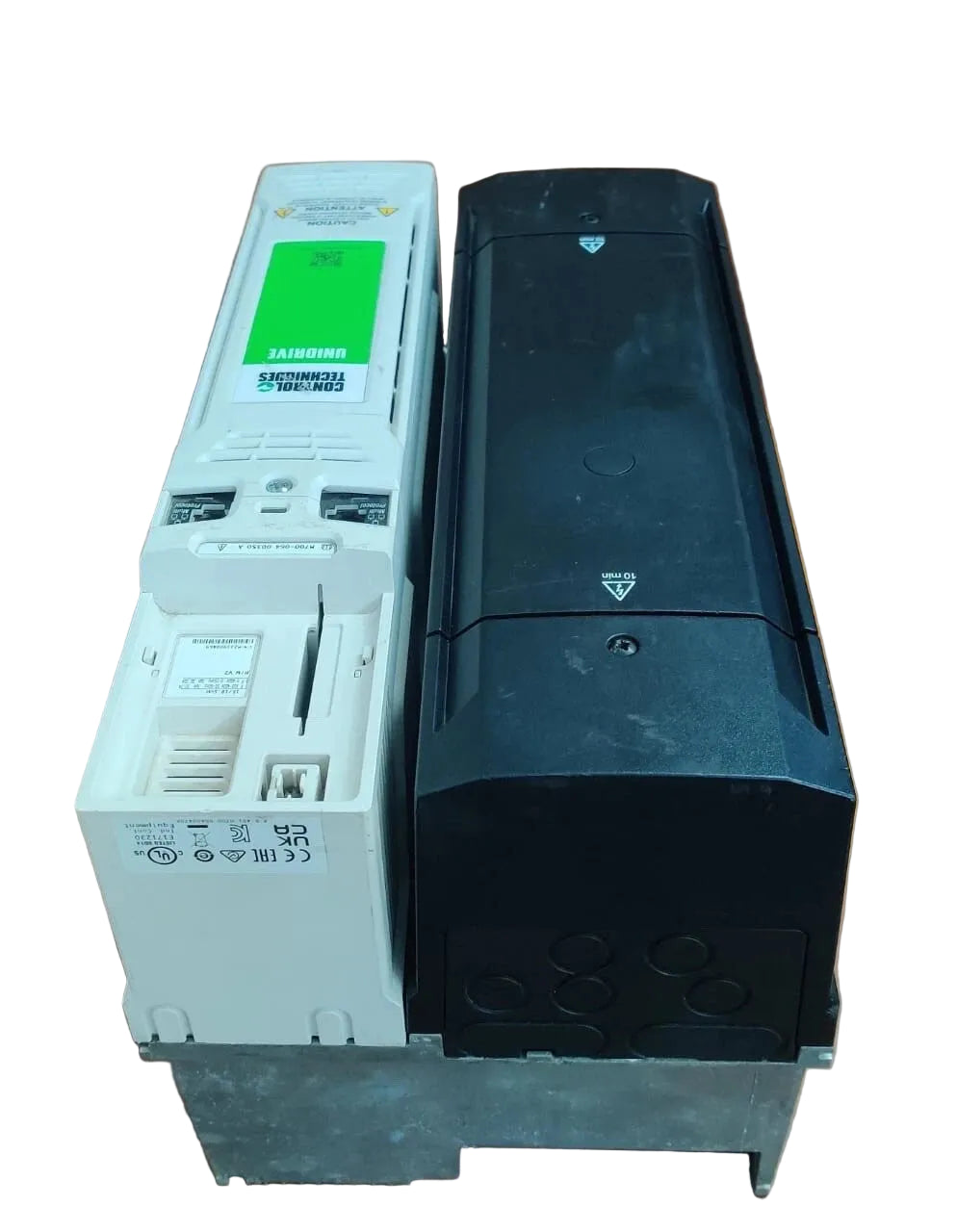

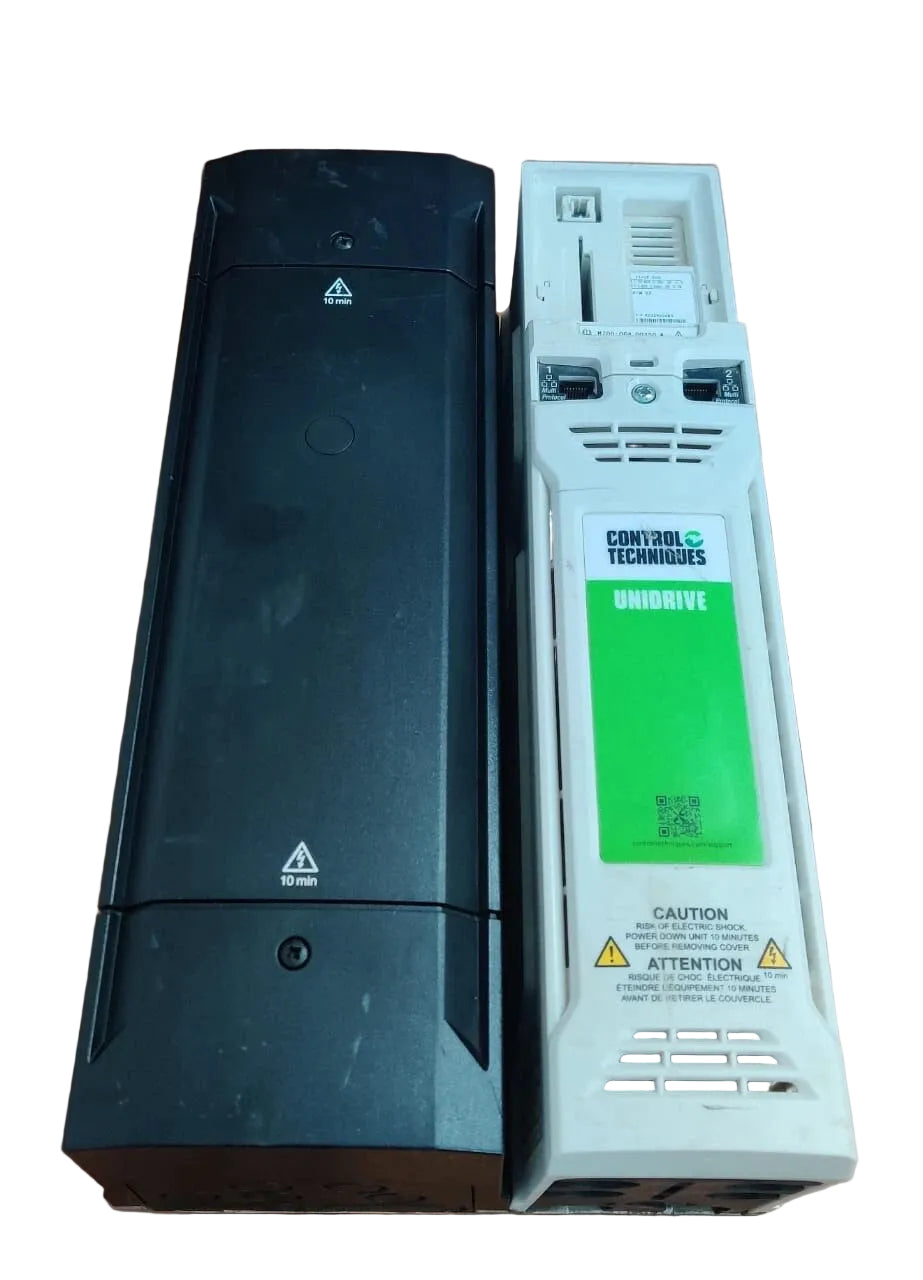

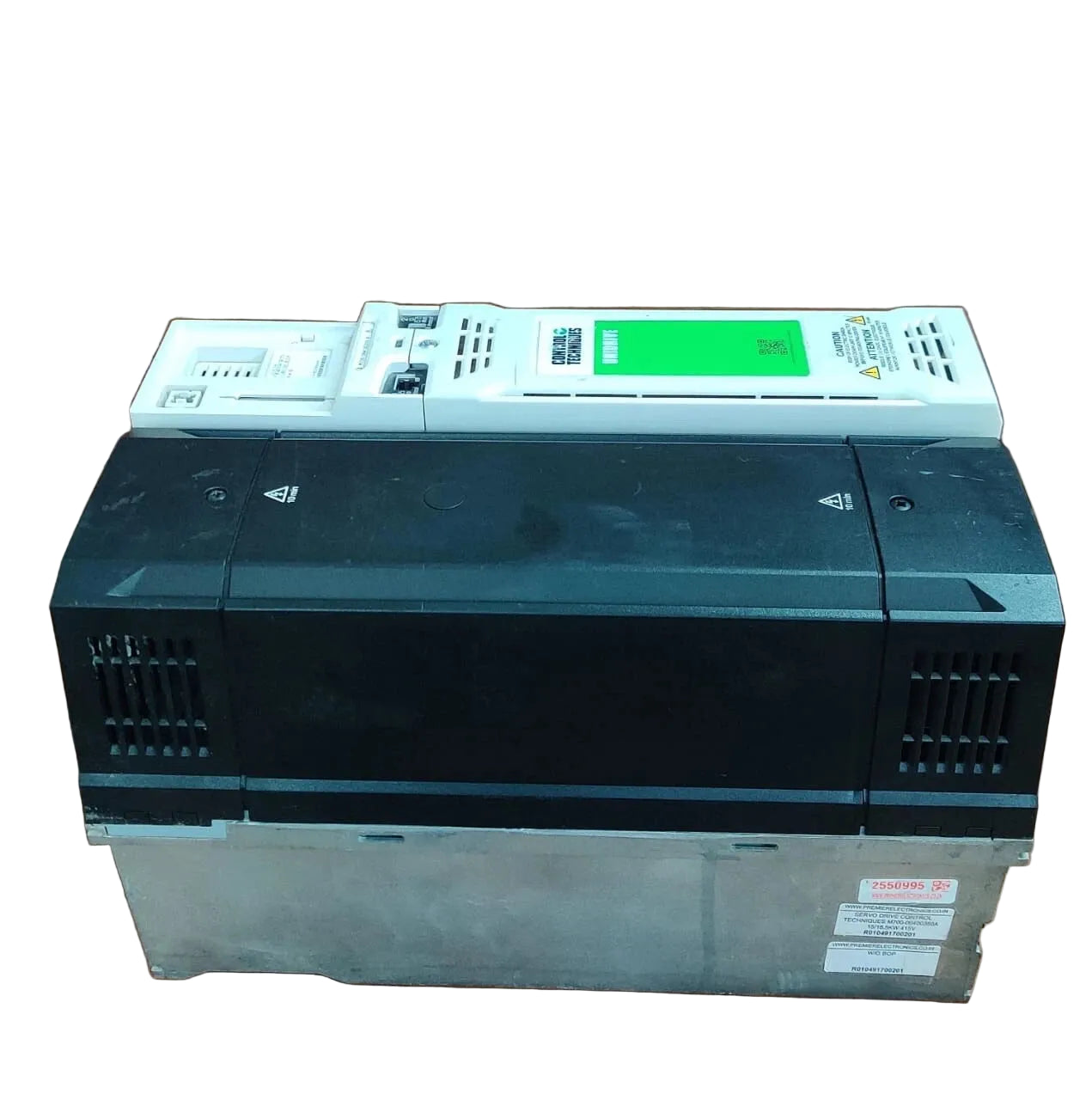

Control Techniques M700-064-00350-A 15kW VFD 400V 3-Phase Unidrive M700 Drive
- Regular price
- $6,359.00
- Sale price
- $6,359.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M700-064-00350-A
Description
The Control Techniques M700-064-00350-A is a 15 kW inverter drive designed for operation on 380–480V three-phase power systems with a 35A constant torque rating. It delivers high-performance motor control for demanding industrial applications requiring precision and dynamic response. As part of the Unidrive M700 series, it is engineered for advanced automation and motion control environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Control Techniques |
| Category | Drives & Motor Controls |
| Part Number | M700-064-00350-A |
| Subcategory | Variable Frequency Drives |
| Series | Unidrive M700 |
| Application | High Performance |
| Input Voltage | 380–480V AC |
| Input Phase | Three-Phase |
| Constant Torque Current | 35 A |
| Normal Duty Current | 38 A |
| Rated Power (Constant Torque) | 15 kW |
| Rated Power (Fan/Pump) | 18.5 kW |
| Safe Torque Off | Single Channel |
| Control Mode | Open Loop / Closed Loop |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Digital Inputs | 4 |
| Digital Outputs | 1 (Dedicated) |
| Relay Outputs | 1 |
| Logic Type | PNP/NPN (Selectable) |
| Bidirectional IO | 3 |
| IP Rating | IP20 |
| Keypad | Not Included |
| Cooling Method | Forced Air Cooling |
| Weight | 9.0 kg |
Information About M700-064-00350-A
The M700-064-00350-A is part of the Control Techniques Unidrive M700 series, a range specifically developed for high-performance motor control and servo-level applications. It supports both open-loop and closed-loop control, enabling precise speed and torque regulation across a wide variety of industrial processes. The drive is equipped with integrated Safe Torque Off (STO) functionality for enhanced operational safety. Its flexible I/O configuration and compatibility with industrial communication systems make it suitable for complex automation systems requiring high responsiveness and accuracy.
Key Features:
- High Power Output: Delivers 15 kW constant torque and up to 18.5 kW for fan and pump applications
- Wide Voltage Compatibility: Operates on 380–480V AC three-phase power systems
- Advanced Control Modes: Supports both open-loop and closed-loop motor control
- Safe Torque Off (STO): Integrated safety feature for secure machine operation
- Flexible I/O Configuration: Includes multiple analog and digital inputs and outputs for system integration
- High Performance Application Design: Optimized for precision motion and automation systems
- Industrial Communication Ready: Compatible with networked automation environments
- IP20 Protection Rating: Suitable for installation within control cabinets
The M700-064-00350-A delivers the reliability and precision required for high-performance industrial motor control and motion applications.
