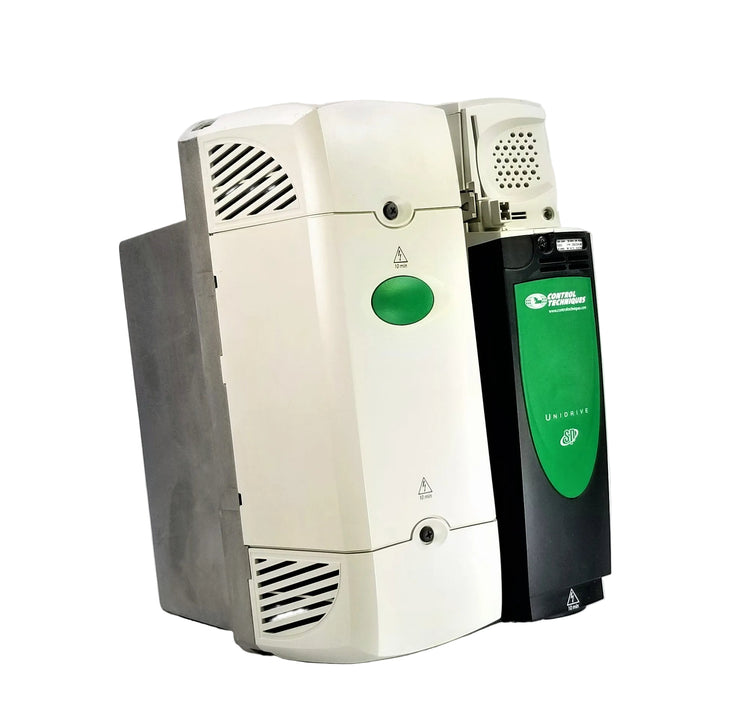

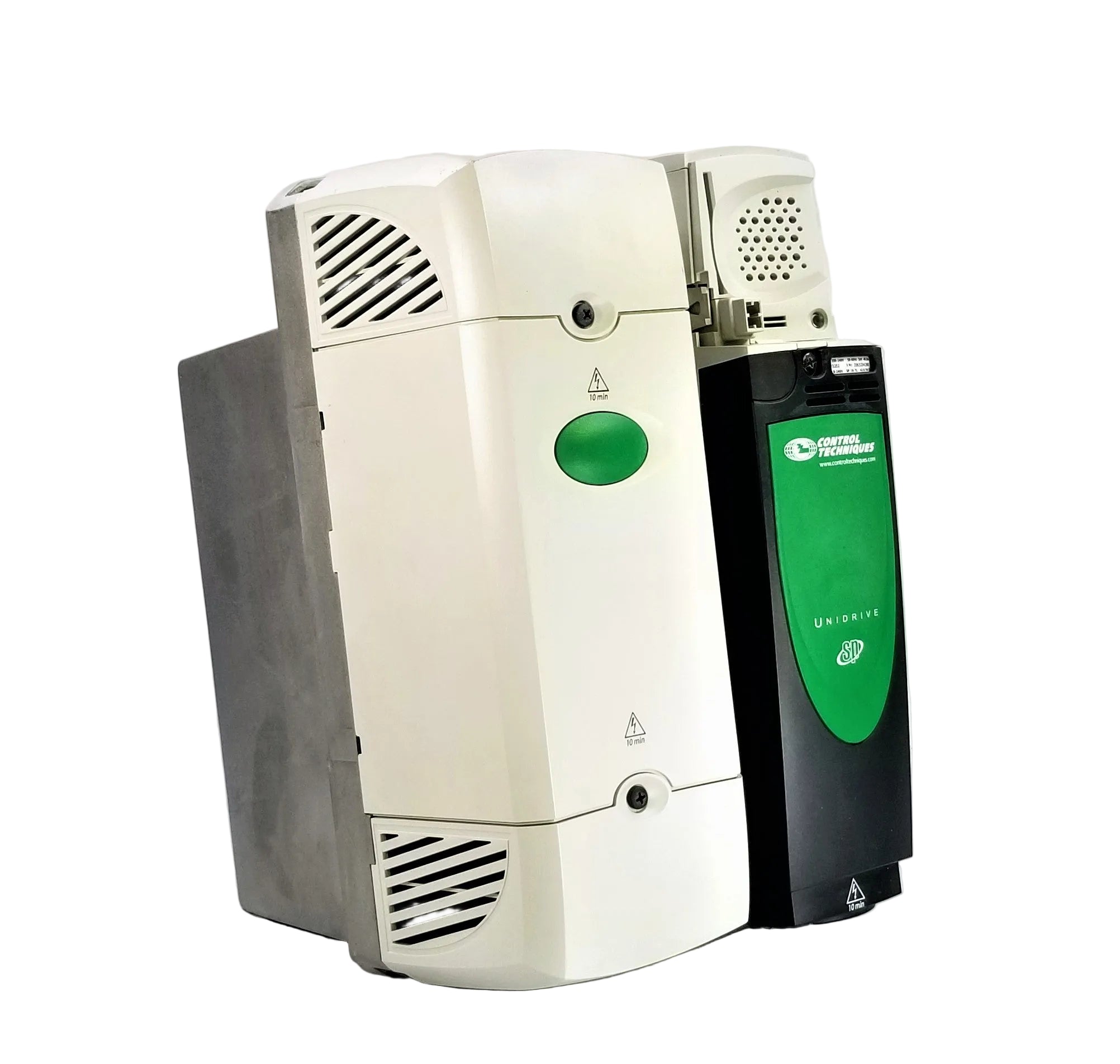

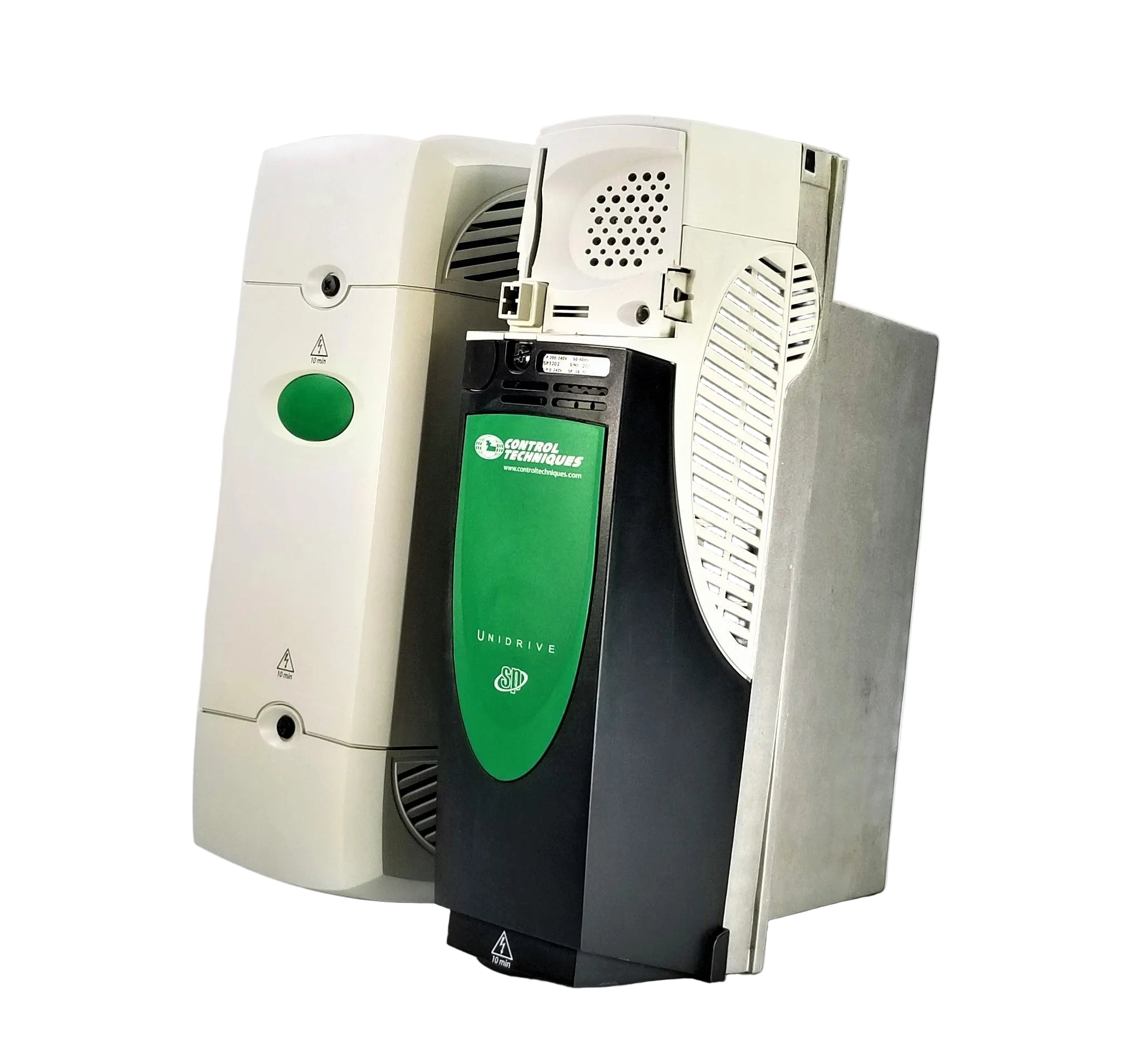

Control Techniques SP3202 Unidrive SP AC Drive 230VAC 54A 3 Phase 20HP Panel Mount
- Regular price
- $3,425.00
- Sale price
- $3,425.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SP3202
Description
The Control Techniques SP3202 is a Unidrive SP AC drive designed for high-performance motor control in industrial automation systems operating on a 200–240 VAC supply. It delivers up to 54 A output current in normal duty and supports both variable frequency and servo control modes. This panel-mounted drive is engineered for precise speed, torque, and position control across a wide range of motor applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Control Techniques |
| Category | AC Variable Frequency & Servo Drives |
| Part Number | SP3202 |
| Subcategory | AC Drives |
| Series | Unidrive SP |
| Drive Type | AC / Servo Drive |
| Input Voltage | 200–240 VAC |
| Input Phases | 3 Phase |
| Output Current (Normal Duty) | 54 A |
| Output Current (Heavy Duty) | 42 A |
| Power Rating (Normal Duty) | 20 HP (15 kW) |
| Power Rating (Heavy Duty) | 15 HP (11 kW) |
| Control Modes | V/Hz, Vector, RFC, Servo Control |
| Output Frequency | 0–600 Hz |
| Enclosure Rating | IP20 / NEMA 1 |
| Cooling Method | Forced Air |
| Operating Temperature | -10°C to 50°C |
| Mounting Type | Panel Mount |
| Dimensions (H x W x D) | 15.3 x 9.8 x 10.2 in |
| Weight | 27 lbs |
Information About SP3202
The SP3202 is part of the Unidrive SP series, a versatile range of AC and servo drives designed for advanced motion control and flexible system integration. It supports multiple control modes including open-loop V/Hz, vector control, rotor flux control, and closed-loop servo operation, allowing compatibility with induction and permanent magnet motors. The drive features a modular architecture with option slots for communication, feedback, and I/O expansion, making it adaptable to complex automation systems. Designed for panel mounting, it provides reliable performance in applications such as conveyors, packaging machinery, and process control systems.
Key Features:
- Multi-Mode Motor Control: Supports V/Hz, vector, rotor flux, and servo control for flexible operation
- High Output Capacity: Delivers 54 A normal duty and 42 A heavy duty current for demanding loads
- Wide Motor Compatibility: Suitable for induction, sensorless vector, and servo motors
- Modular Expansion Capability: Includes option slots for communication, I/O, and feedback modules
- Integrated Communication Options: Supports Modbus RTU and additional fieldbus protocols via modules
- Advanced Motion Performance: Provides precise speed, torque, and position regulation
- Panel Mount Design: Optimized for installation in industrial control cabinets
- Overload Capability: Handles up to 150% current for short durations to manage transient loads
The SP3202 delivers the reliability and precision required for high-performance motor control in industrial automation and motion control systems.
