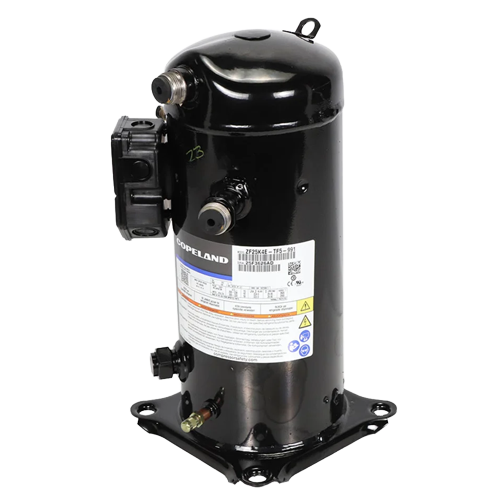

ZF25K4E-TF5-991 | Copeland 230V 3PH Scroll Compressor 40–57K BTU
- Regular price
- $7,999.00
- Sale price
- $7,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZF25K4E-TF5-991
Description
The Copeland ZF25K4E-TF5-991 is a hermetic scroll compressor designed for low-temperature refrigeration and air conditioning applications. It operates on 200/230 VAC, three-phase power and provides a nominal capacity range of approximately 40,000 to 57,500 BTU per hour. Engineered for multi-refrigerant compatibility, it supports reliable performance in commercial refrigeration systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | Air Compressor |
| Part Number | ZF25K4E-TF5-991 |
| Subcategory | Air Compressor |
| Compressor Type | Hermetic Scroll |
| Cooling Capacity | 40,000–57,500 BTU/hr |
| Refrigerant Compatibility | R-134a, R-22, R-404A, R-407A, R-407F, R-448A, R-449A, R-450A, R-513A |
| Voltage | 200/230 VAC |
| Phase | 3 |
| Frequency | 50/60 Hz |
| Rated Load Amps (RLA) | 23.1 A |
| Locked Rotor Amps (LRA) | 224 A |
| Oil Type | Polyolester (POE) |
| Initial Oil Charge | 64 oz |
| Suction Line Size | 7/8 in OD (Sweat/Braze) |
| Discharge Line Size | 3/4 in OD (Stub) |
| Evaporating Temperature | -25°F (-31.67°C) |
| Mounting Dimensions | 7.50 in x 7.50 in x 19.25 in |
| Height | 18.5 in |
| Length | 11.16 in |
| Width | 9.67 in |
| Approvals | UL Recognized |
| Country of Origin | USA |
| Weight | 103.00 lbs |
Information About ZF25K4E-TF5-991
The ZF25K4E-TF5-991 is part of the Copeland ZF series of scroll compressors intended for low-temperature and medium-temperature refrigeration duty. It features a hermetic steel housing and operates at 50/60 Hz using 200/230 VAC three-phase power. The compressor utilizes polyolester (POE) oil and is compatible with refrigerants including R-134a, R-22, R-404A, R-407A, R-407F, R-448A, R-449A, R-450A, and R-513A. Designed for commercial refrigeration systems, it incorporates internal protection and is UL recognized for safety compliance.
Key Feature:
- High Cooling Capacity: Delivers approximately 40,000 to 57,500 British Thermal Units per hour for commercial refrigeration applications.
- Hermetic Scroll Compression: Provides smooth, efficient compression with fewer moving parts and reduced mechanical wear.
- Three-Phase Power Supply: Operates on 200/230 Volt Alternating Current, three-phase, 50/60 Hertz electrical systems.
- Wide Refrigerant Compatibility: Supports R-134a, R-22, R-404A, R-407A, R-407F, R-448A, R-449A, R-450A, and R-513A refrigerants.
- Polyolester Oil Lubrication: Uses Polyolester lubricant designed for modern refrigeration refrigerants.
- Low-Temperature Operation: Suitable for evaporating temperatures as low as -25 degrees Fahrenheit (-31.67 degrees Celsius).
- Internal Motor Protection: Helps safeguard the compressor from abnormal operating conditions.
- UL Recognized Construction: Manufactured to meet recognized industry safety standards.
The ZF25K4E-TF5-991 delivers the reliability and precision required for commercial refrigeration systems, cold storage equipment, supermarket refrigeration, and other low-temperature cooling applications.
