ZP154KCE-TFD-855 | Copeland 154,000 BTU 460V 3-Phase Scroll Compressor R-410A
- Regular price
- $6,399.00
- Sale price
- $6,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZP154KCE-TFD-855
Description

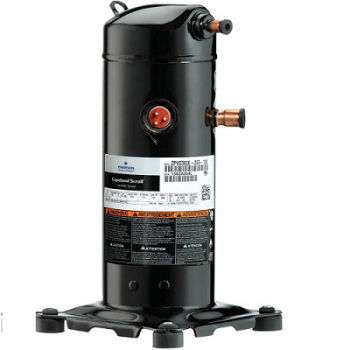

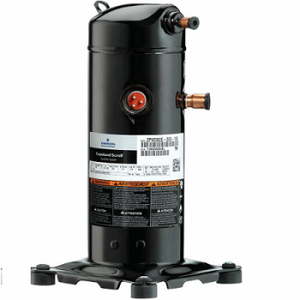

The Copeland ZP154KCE-TFD-855 is a hermetic scroll compressor rated at approximately 154,000 BTU for high-temperature, ultra-high-pressure HVAC applications. Designed for R-410A refrigerant systems, it operates on 460 VAC three-phase power and supports both air conditioning and heat pump installations. This unit provides stable, high-efficiency compression for demanding commercial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZP154KCE-TFD-855 |
| Subcategory | Scroll Compressors |
| Compressor Type | Scroll |
| Construction Type | Hermetic |
| Application | A/C, Heat Pump |
| Nominal Capacity | 154,000–155,000 BTU |
| Horsepower | 13 HP |
| Refrigerant | R-410A |
| Refrigerant Oil Type | Polyol Ester (POE) – 3MA |
| Voltage | 460 VAC (Line 480V @ 60Hz) |
| Frequency | 50/60 Hz |
| Motor Phase | 3-Phase |
| Max RLA | 25 A |
| LRA | 150 A |
| Max Watts | 14,000 W |
| Suction Connection | Horizontal, 1-3/8 in |
| Discharge Connection | Horizontal, 7/8 in |
| Mounting Arrangement | A |
| Oil Recharge | 6.625 pints |
| Dimensions (H x L x W) | 21.7 in x 10.38 in x 11.23 in |
| Weight | 143 lb |
Information About ZP154KCE-TFD-855
The ZP154KCE-TFD-855 is part of Copeland’s ZP series of scroll compressors engineered for high-capacity air conditioning and heat pump systems. It utilizes precision scroll technology to deliver continuous compression with reduced mechanical stress and improved efficiency compared to reciprocating designs. Compatible with R-410A refrigerant and lubricated with 3MA polyol ester (POE) oil, the compressor is optimized for high-pressure operation. Internal electronic protection safeguards the motor against overload and abnormal electrical conditions, supporting reliable long-term service in commercial three-phase installations.
Key Features:
- Scroll Compression Technology: Ensures smooth, efficient, and low-vibration operation.
- 154,000 BTU Capacity: Designed for large commercial A/C and heat pump systems.
- 460 VAC / 3-Phase Power: Suitable for industrial and commercial electrical infrastructure.
- R-410A Refrigerant Compatibility: Engineered for high-pressure refrigerant applications.
- Internal Electronic Protection: Provides built-in motor safety against overload conditions.
- High Temperature Rating: Built for demanding ambient operating environments.
- Horizontal Suction & Discharge Connections: Facilitates flexible installation and piping configuration.
- POE Oil (3MA) Lubrication: Supports reliable lubrication under high-pressure conditions.
The ZP154KCE-TFD-855 delivers the reliability and precision required for commercial air conditioning and heat pump systems.
