ZPD120KCE-TFD-965 | Copeland 120K BTU 460V 3PH Digital Scroll Compressor
- Regular price
- $8,499.00
- Sale price
- $8,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZPD120KCE-TFD-965
Description

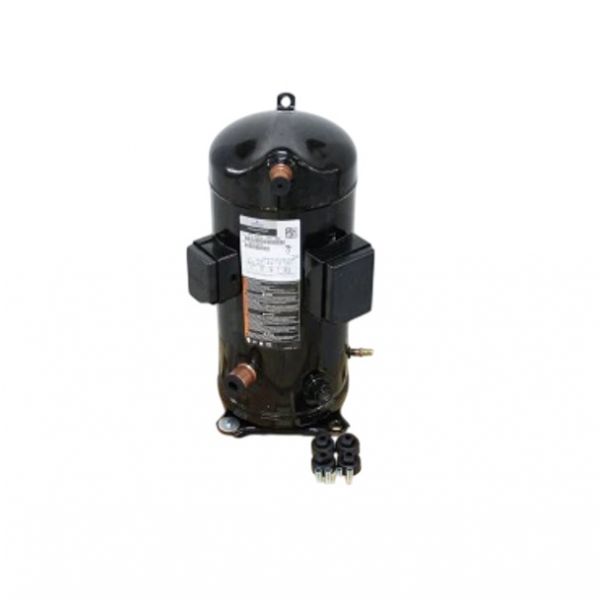

The Copeland ZPD120KCE-TFD-965 is a digital scroll compressor designed for high-temperature air conditioning applications using R-410A refrigerant. It delivers approximately 120,000–121,000 BTU per hour cooling capacity and operates on 460 VAC, three-phase power. Engineered for ultra-high-pressure systems, it incorporates digital modulation and internal electronic protection for controlled and reliable performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZPD120KCE-TFD-965 |
| Subcategory | Refrigeration Compressor |
| Series | ZPD |
| Compressor Type | Hermetic Digital Scroll |
| Cooling Capacity | 120,000–121,000 Btu/hr |
| Power Rating | 10 HP |
| Refrigerant Type | R-410A |
| Voltage Rating | 460 VAC |
| Phase | 3 |
| Frequency | 60 Hz |
| Compressor Oil | POE (3MA) |
| Protection Type | Internal electronic protection |
| Application | Air Conditioning |
| Weight | 161.00 lbs |
Information About ZPD120KCE-TFD-965
The ZPD120KCE-TFD-965 is part of the Copeland ZPD series of hermetic digital scroll compressors intended for commercial HVAC systems. It operates at 460 VAC, 60 Hz, three-phase and is rated at approximately 10 horsepower. The compressor utilizes polyol ester (POE) oil (3MA) compatible with R-410A refrigerant and features internal electronic protection for motor safeguarding. Designed for demanding air conditioning installations, it provides digital capacity modulation to adjust output according to system load requirements.
Key Features:
-
Digital Scroll Modulation: Adjusts compressor capacity to match system demand.
-
120,000–121,000 BTU Capacity: Suitable for commercial A/C applications.
-
10 HP Rating: Supports medium- to high-capacity HVAC systems.
-
460 VAC, 3-Phase Operation: Designed for industrial and commercial power supply.
-
R-410A Refrigerant Compatibility: Engineered for high-pressure refrigerant systems.
-
Internal Electronic Protection: Integrated motor protection for operational reliability.
-
POE (3MA) Oil Lubrication: Ensures compatibility with R-410A systems.
-
High-Temperature Capability: Designed for demanding air conditioning environments.
The ZPD120KCE-TFD-965 delivers the reliability and precision required for commercial HVAC compressor applications.
