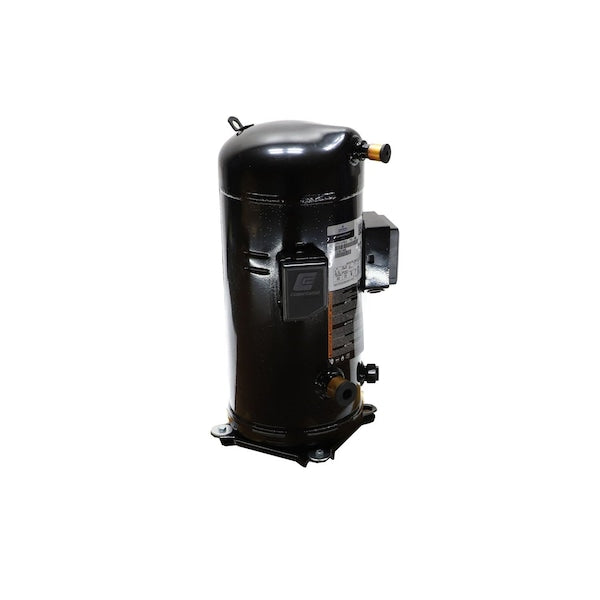

ZPD137KCE-TFD-950 | Copeland 137K BTU 460V 3PH Digital Scroll Compressor
- Regular price
- $8,999.00
- Sale price
- $8,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZPD137KCE-TFD-950
Description
The Copeland ZPD137KCE-TFD-950 is a digital scroll compressor designed for air conditioning and heat pump systems operating with R-410A refrigerant. It provides approximately 137,000 BTU per hour cooling capacity and operates on 380–420/50 Hz or 460/60 Hz three-phase power. Built for high-temperature and ultra-high-pressure applications, it incorporates digital modulation for controlled capacity operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZPD137KCE-TFD-950 |
| Subcategory | Refrigeration Compressor |
| Series | ZPD |
| Compressor Type | Hermetic Digital Scroll |
| Cooling Capacity | 137,000 Btu/hr |
| Power Rating | 12 hp |
| Refrigerant Type | R-410A |
| Voltage Rating | 380–420/50 Hz; 460/60 Hz |
| Phase | 3 |
| Locked Rotor Amps (LRA) | 95 A |
| Maximum Operating Current | 16 A |
| Compressor Oil | POE-AK/DA, 3MA/SP32 |
| Displacement | 22.1 cu-m/hr |
| Dimensions | 11-1/2 in L x 21 in H |
| Protection Type | Internal inherent protection |
| Application | A/C and Heat Pump |
| Weight | 162.00 lbs |
Information About ZPD137KCE-TFD-950
The ZPD137KCE-TFD-950 belongs to the Copeland ZPD series of hermetic digital scroll compressors intended for commercial HVAC installations. It features internal inherent motor protection and is designed for use with a contactor in three-phase configurations. The compressor operates with POE (AK/DA or 3MA/SP32) oil and supports both 50 Hz and 60 Hz power supplies within its rated voltage range. With digital modulation capability, it adjusts output capacity to match load demand, improving system efficiency and temperature control.
Key Features:
-
Digital Scroll Modulation: Adjusts compressor capacity for improved load matching and efficiency.
-
137,000 BTU Capacity: Suitable for commercial air conditioning and heat pump systems.
-
R-410A Compatibility: Designed for high-pressure refrigerant applications.
-
380–420/50 Hz and 460/60 Hz Operation: Supports multiple industrial power standards.
-
Internal Inherent Protection: Integrated motor protection requiring use with a contactor.
-
POE Oil Lubrication: Uses polyol ester oil for compatibility with R-410A systems.
-
Low Noise Operation: Scroll design reduces vibration and sound levels.
-
Centrifugal Oil Pump: Provides effective lubrication during operation.
The ZPD137KCE-TFD-950 delivers the reliability and precision required for commercial HVAC compressor applications.
