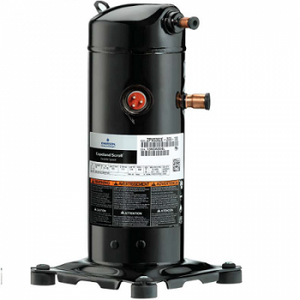

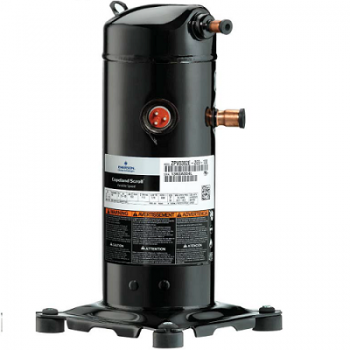

ZPD154KCE-TE5-950 | Copeland 155K BTU 230V 3PH Digital Scroll Compressor
- Regular price
- $6,899.00
- Sale price
- $6,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZPD154KCE-TE5-950
Description
The Copeland ZPD154KCE-TE5-950 is a digital scroll compressor designed for air conditioning systems operating with R-410A refrigerant. It delivers approximately 154,000–155,000 BTU per hour cooling capacity and operates on 200/220/230 VAC, three-phase power. Engineered for high-temperature and high-pressure applications, it incorporates digital modulation and external diagnostic capability for controlled and reliable performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZPD154KCE-TE5-950 |
| Subcategory | Refrigeration Compressor |
| Series | ZPD |
| Compressor Type | Hermetic Digital Scroll |
| Cooling Capacity | 154,000–155,000 Btu/hr |
| Refrigerant Type | R-410A |
| Voltage Rating | 200/220/230 VAC |
| Phase | 3 |
| Frequency | 50/60 Hz |
| Max RLA | 57.1 A |
| Locked Rotor Amps (LRA) | 300 A |
| CFM | 17.663 |
| Compressor Oil | Polyol Ester (POE), 3MA |
| Suction Line Size | 1-3/8 in Stub |
| Discharge Line Size | 7/8 in Stub |
| Height | 22.21 in |
| Length | 12.93 in |
| Application | Air Conditioning |
| Weight | 166.00 lbs |
Information About ZPD154KCE-TE5-950
The ZPD154KCE-TE5-950 is part of the Copeland ZPD series of hermetic digital scroll compressors for commercial HVAC installations. It features digital modulation technology to adjust compressor capacity based on system demand, improving efficiency and temperature stability. This model operates at 50/60 Hz using 200/230 VAC three-phase power and utilizes polyol ester (POE) oil compatible with R-410A refrigerant. Equipped with an external module supporting CoreSense™ diagnostics and protection, it is designed for integration into rooftop units and packaged air conditioning systems.
Key Features:
-
Digital Scroll Modulation: Adjusts output capacity for improved load matching and system control.
-
154,000–155,000 BTU Capacity: Suitable for approximately 13-ton commercial A/C systems.
-
R-410A Compatibility: Designed for high-pressure refrigerant operation.
-
200/220/230 VAC, 3-Phase Operation: Supports standard commercial electrical supply.
-
CoreSense™ External Module: Enables diagnostics and protection monitoring.
-
POE Oil Lubrication: Uses polyol ester oil (3MA) for refrigerant compatibility.
-
High Efficiency Performance: Engineered for EER 11.0 and above.
-
Centrifugal Oil Pump: Provides consistent lubrication during operation.
The ZPD154KCE-TE5-950 delivers the reliability and precision required for commercial HVAC compressor applications.
