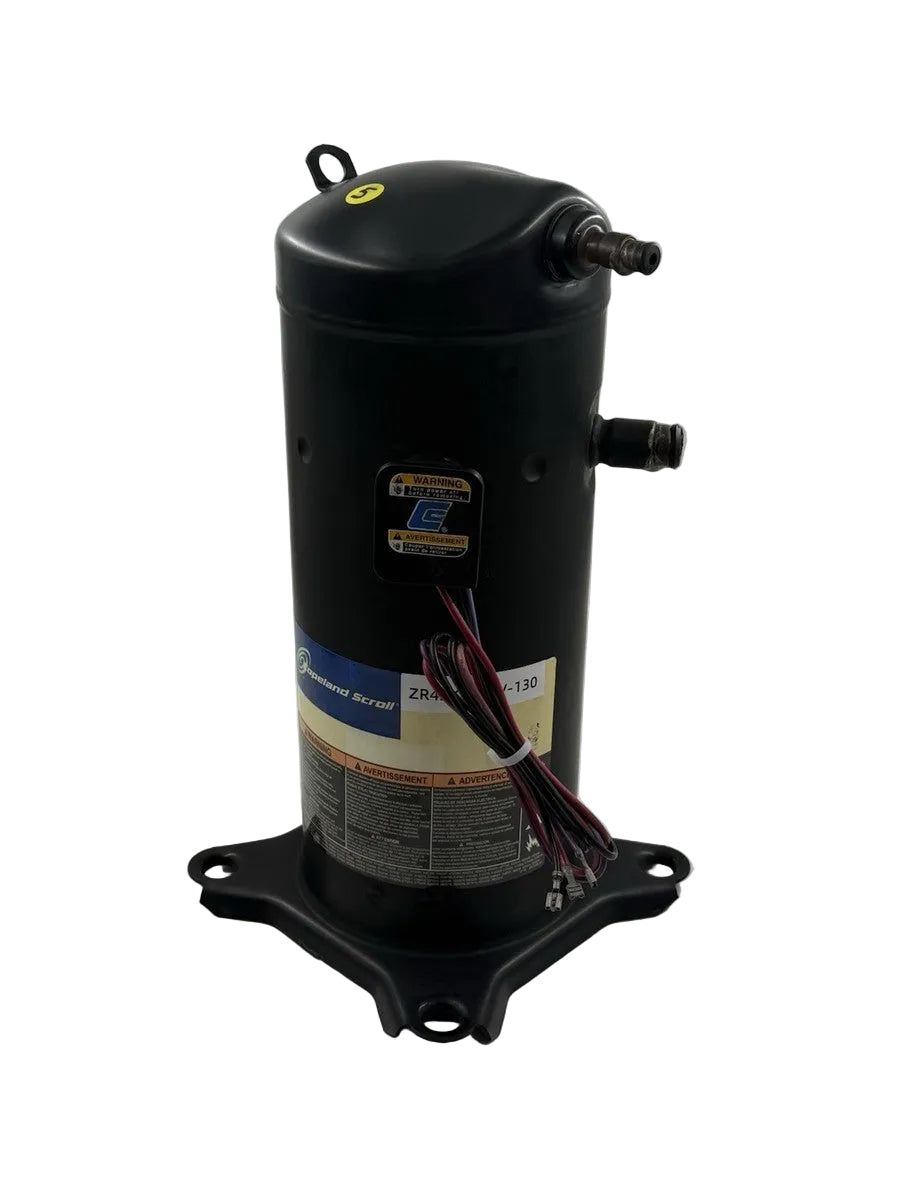

Copeland ZR42KA-PFV-130 3.5 Ton Scroll Compressor 42,200 BTU 208-230V 1-Phase R-22 HVAC
- Regular price
- $1,799.00
- Sale price
- $1,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZR42KA-PFV-130
Description
The Copeland ZR42KA-PFV-130 is a 3.5-ton scroll compressor designed for air conditioning condenser systems using R-22 refrigerant. It provides approximately 42,200 BTU/hr of cooling capacity while operating on 208–230V single-phase power. Built with Copeland scroll compression technology, it delivers smooth, efficient refrigerant compression for residential and light commercial HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC Components |
| Part Number | ZR42KA-PFV-130 |
| Subcategory | Scroll Compressors |
| Compressor Type | Scroll |
| Cooling Capacity | 42,200 BTU/hr |
| Nominal Capacity | 3.5 Ton |
| Refrigerant | R-22 |
| Input Voltage | 208 / 230 V |
| Phase | 1 |
| Frequency | 50 / 60 Hz |
| Rated Load Current | 22.1 A |
| Maximum Continuous Current | 31.0 A |
| Locked Rotor Current | 104.0 A |
| Run Capacitor | 55 µF / 370 V |
| Start Capacitor | 88–106 µF / 330 V |
| Suction Line Size | 7/8 in Stub |
| Discharge Line Size | 1/2 in Stub |
| Mounting Base Dimensions | 7-1/2 x 7-1/2 in |
| Overall Compressor Height | 16-7/16 in |
| Weight | 72 lbs |
Information About ZR42KA-PFV-130
The ZR42KA-PFV-130 is part of Copeland’s ZR series scroll compressors developed for reliable air conditioning and refrigeration performance. It features a hermetically sealed compressor design that protects internal components and ensures stable operation in demanding HVAC environments. This model is widely used in split air conditioning systems, condenser units, and packaged HVAC equipment requiring single-phase electrical supply. The scroll compression mechanism improves efficiency, reduces vibration and noise, and extends operational life compared with conventional reciprocating compressors.
Key Features:
- Scroll Compression Technology: Uses interleaving scroll elements for efficient refrigerant compression with minimal moving parts.
- 42,200 BTU Cooling Capacity: Supports HVAC systems with approximately 3.5 tons of cooling capacity.
- R-22 Refrigerant Compatibility: Designed for air conditioning systems operating with R-22 refrigerant.
- 208–230V Single-Phase Operation: Compatible with standard residential and light commercial electrical systems.
- Stable Electrical Performance: Rated load current of 22.1A with controlled starting characteristics.
- Hermetic Sealed Construction: Protects internal compressor components and ensures reliable long-term operation.
- Stub-Out Refrigerant Connections: Includes 7/8 in suction and 1/2 in discharge line configurations for standard installation.
- HVAC System Integration: Suitable for condenser units and packaged air conditioning equipment.
The ZR42KA-PFV-130 delivers the reliability and precision required for residential and light commercial air conditioning compressor applications.
