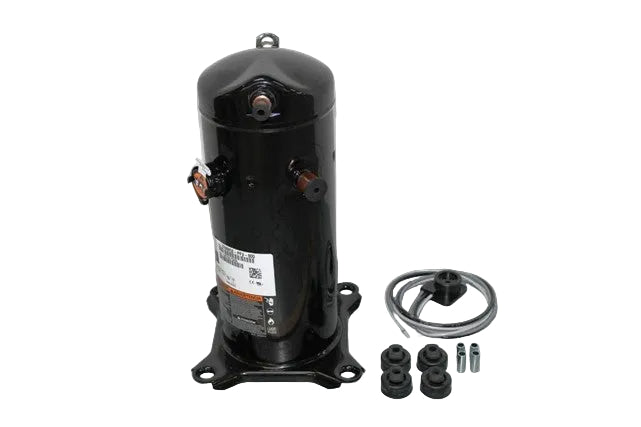

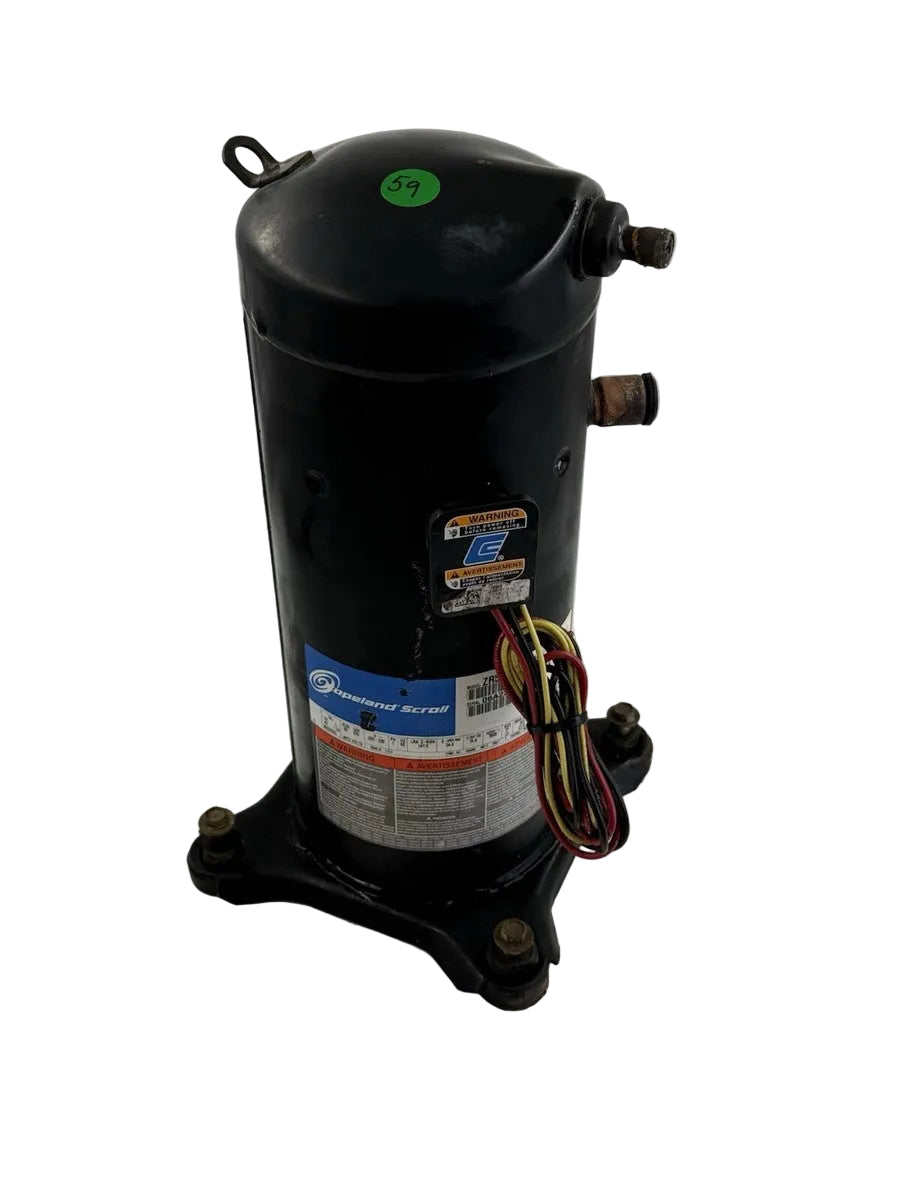

Copeland ZR54KA-PFV-130 4–5 Ton Scroll A/C Condenser Compressor 53,500 BTU R-22 208–230V Single Phase
- Regular price
- $1,955.00
- Sale price
- $1,955.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZR54KA-PFV-130
Description
The Copeland ZR54KA-PFV-130 is a high-performance scroll compressor designed for residential and light commercial air conditioning condenser systems. Engineered for reliable cooling output, this unit delivers approximately 53,500 BTU/hr capacity, supporting 4–5 ton HVAC systems operating with R-22 refrigerant. Its scroll compression technology ensures smooth, efficient operation with reduced vibration and dependable long-term performance in demanding cooling environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC Components |
| Part Number | ZR54KA-PFV-130 |
| Subcategory | Scroll Compressors |
| Compressor Type | Scroll |
| Cooling Capacity | 53,500 BTU/hr |
| System Capacity | 4–5 Ton |
| Refrigerant Type | R-22 |
| Input Voltage | 208 / 230 V |
| Phase | Single Phase |
| Frequency | 50 / 60 Hz |
| Rated Load Current | 28.2 A |
| Maximum Continuous Current | 39.5 A |
| Locked Rotor Current | 146 A |
| Run Capacitor | 80 µF / 370 V |
| Start Capacitor | 88–106 µF / 330 V |
| Start Capacitor Part Number | 43-17075-04 |
| Start Relay Part Number | 42-25105-01 |
| Suction Line Size | 7/8 in |
| Discharge Line Size | 1/2 in |
| Suction Line Height | 11-1/8 in |
| Discharge Line Height | 15-3/8 in |
| Overall Compressor Height | 16-7/16 in |
| Mounting Base Dimensions | 7-1/2 x 7-1/2 in |
| Crankcase Heater | Not Included |
| Weight | 74 lb (approx.) |
Information About ZR54KA-PFV-130
The ZR54KA-PFV-130 is part of the Copeland ZR series of scroll compressors, developed for use in air conditioning systems requiring dependable cooling capacity and energy-efficient operation. It utilizes a hermetic scroll compression design that minimizes mechanical wear and enhances operational stability compared with traditional reciprocating compressors. Designed for single-phase 208–230V power at 50/60 Hz, the unit integrates easily into residential and light commercial HVAC condenser assemblies. Its compact vertical construction and standard stub-out refrigerant connections simplify installation and service in typical outdoor condenser applications.
Key Features:
- Scroll Compression Technology: Uses advanced scroll design to provide smooth compression with fewer moving parts and improved durability.
- High Cooling Capacity: Delivers approximately 53,500 BTU/hr, supporting 4–5 ton air conditioning systems.
- Single-Phase Electrical Operation: Designed for 208–230V single-phase power, suitable for residential and light commercial HVAC systems.
- R-22 Refrigerant Compatibility: Optimized for systems operating with R-22 refrigerant for reliable cooling performance.
- Stub-Out Refrigerant Connections: Includes stub-out suction and discharge lines for simplified brazing and installation.
- Compact Vertical Compressor Design: Space-efficient construction allows installation within standard condenser housings.
- Robust Electrical Performance: Rated load current of 28.2 A with a locked rotor current of 146 A for dependable motor startup characteristics.
- Standard HVAC Component Compatibility: Works with specified start relay and start/run capacitors for reliable compressor startup and operation.
The ZR54KA-PFV-130 delivers the reliability and precision required for consistent cooling performance in residential and light commercial HVAC condenser systems.
