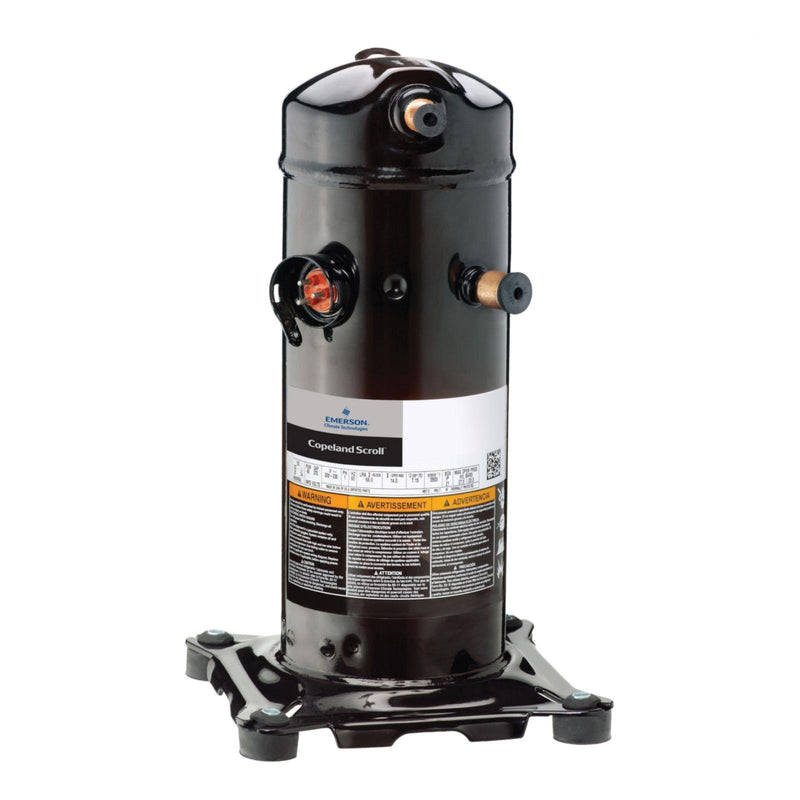

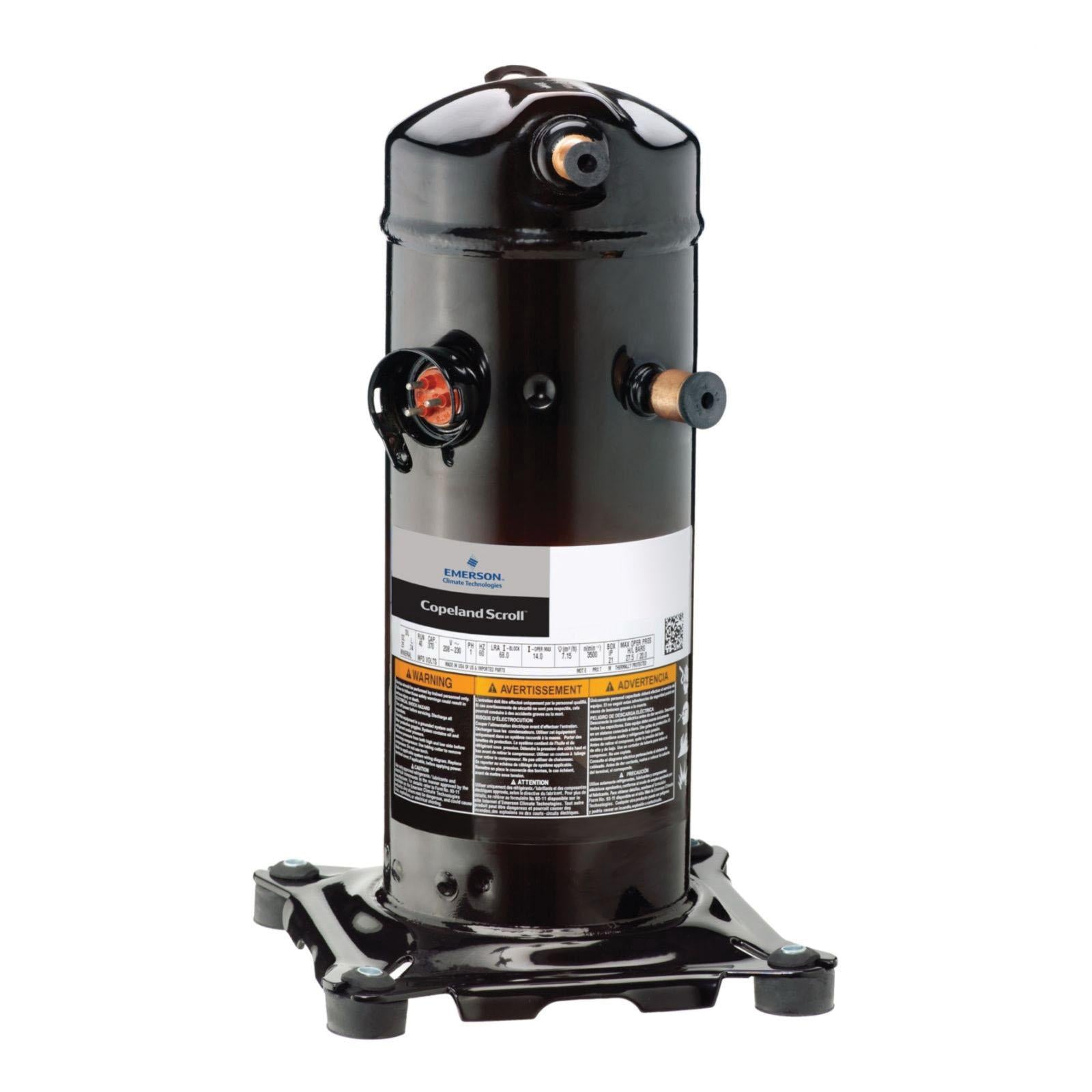

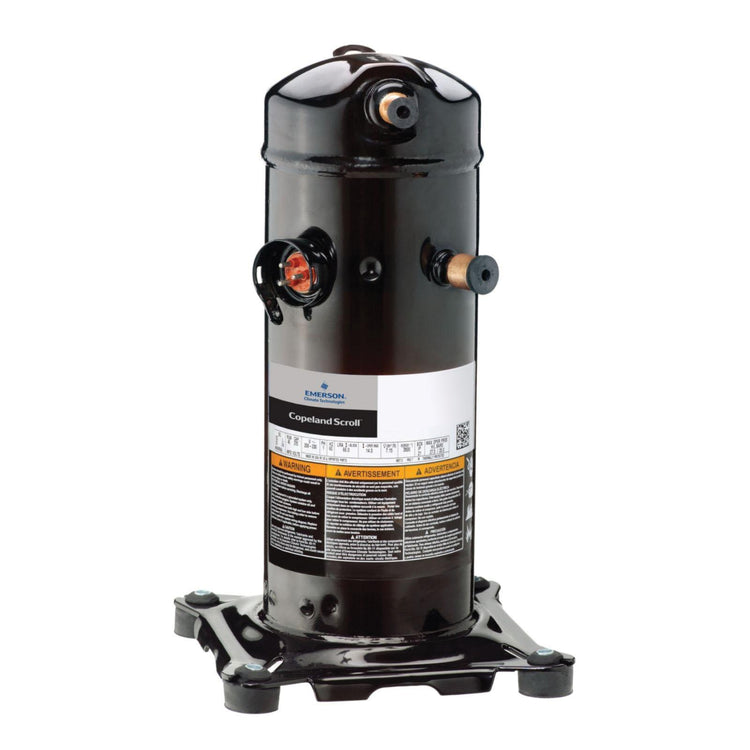

ZR84KCE-TF5-950 | Copeland 84,000 BTU 208/230V 3-Phase Scroll Compressor
- Regular price
- $5,999.00
- Sale price
- $5,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZR84KCE-TF5-950
Description
The Copeland ZR84KCE-TF5-950 is a three-phase scroll compressor rated at 84,000 BTU per hour for commercial air conditioning systems. Designed for R-22 refrigerant, it operates on 208/230V at 60 Hz and provides consistent cooling performance in medium-capacity HVAC applications. Its hermetic scroll design supports smooth compression and reliable system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZR84KCE-TF5-950 |
| Subcategory | Scroll Compressors |
| Compressor Type | Scroll |
| Application | Air Conditioning |
| Nominal Capacity | 84,000 BTU/hr |
| Refrigerant | R-22 |
| Refrigerant Oil | POE |
| Voltage | 208/230 VAC |
| Frequency | 60 Hz |
| Motor Phase | 3-Phase |
| Rated Load Current | 28.6 A |
| Max Continuous Current | 40.0 A |
| Locked Rotor Current | 196.0 A |
| Suction Line Size | 1-1/8 in (Stub Out) |
| Discharge Line Size | 1/2 in (Stub Out) |
| Overall Height | 18-7/8 in |
| Mounting Base Dimensions | 7-1/2 in x 7-1/2 in |
| Crankcase Heater Included | No |
| Weight | 130 lb |
Information About ZR84KCE-TF5-950
The ZR84KCE-TF5-950 is part of Copeland’s ZR series of scroll compressors developed for dependable air conditioning service. It features a precision-engineered scroll set that reduces pulsation and enhances efficiency compared to reciprocating compressor designs. Compatible with R-22 refrigerant and lubricated with polyol ester (POE) oil, this model supports stable thermal and mechanical operation. Configured for 208/230 VAC, 3-phase, 60 Hz electrical supply, it is suited for commercial rooftop units and split-system installations.
Key Features:
- Scroll Compression Mechanism: Provides continuous, low-vibration compression for improved system efficiency.
- 84,000 BTU/hr Capacity: Designed for medium-capacity commercial A/C systems.
- 208/230V 3-Phase Operation: Compatible with standard commercial electrical infrastructure.
- R-22 Refrigerant Application: Suitable for legacy and replacement air conditioning systems.
- Stub-Out Suction and Discharge Connections: Simplifies brazed piping installation.
- High Starting Torque: 196 A locked rotor current supports reliable startup.
- POE Oil Lubrication: Ensures proper internal lubrication and durability.
- Compact Mounting Base: 7-1/2 in x 7-1/2 in footprint for straightforward equipment integration.
The ZR84KCE-TF5-950 delivers the reliability and precision required for commercial air conditioning systems.
