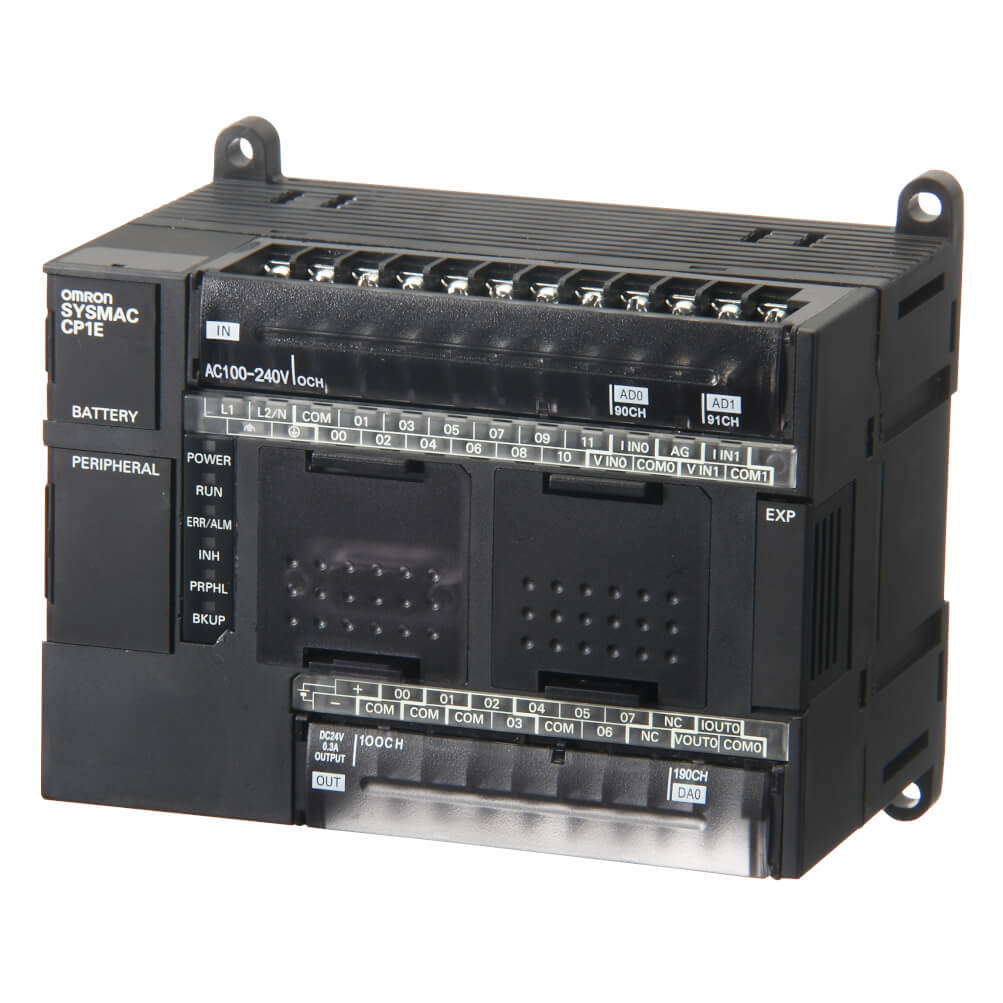

CP1E-NA20DT1-D | Omron Compact PLC CPU with 12 DC Inputs, 8 PNP Outputs, USB and RS-232C Ports
- Regular price
- $437.00
- Sale price
- $437.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CP1E-NA20DT1-D
Description
The Omron CP1E-NA20DT1-D is a compact programmable logic controller designed for DC-powered industrial automation systems requiring integrated digital I/O and serial communication. The CP1E-NA20DT1-D provides 12 digital inputs and 8 transistor PNP outputs for reliable control of sensors, actuators, and machine processes. It is intended for small to mid-scale PLC applications where fast execution and expansion flexibility are required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | CP1E-NA20DT1-D |
| Subcategory | Programmable Logic Controllers |
| Supply Voltage Type | DC |
| Digital Inputs | 12 |
| Input Type | PNP/NPN |
| Digital Outputs | 8 |
| Output Type | PNP Transistor |
| Program Capacity | 8 K Steps |
| Data Memory Capacity | 8 K Words |
| Logic Execution Time | 1.19 µs |
| USB Ports | 1 |
| RS-232 Ports | 1 |
| Ethernet Ports | 0 (optional via expansion) |
| Max Encoder Input Frequency | 100 kHz |
| Max Pulse Output Frequency | 100 kHz |
| Max PTP Axes | 2 |
| Max Local I/O Points | 140 |
| Max Expansion Units | 3 |
| Operating Temperature Range | 0 to 55 °C |
| Dimensions (H × W × D) | 90 mm × 130 mm × 85 mm |
| Weight | 550 g |
Information About CP1E-NA20DT1-D
The CP1E-NA20DT1-D is a CPU unit from Omron’s CP1E series, engineered for compact machine control and automation panel installations. It operates on a DC supply and supports both PNP and NPN input wiring to accommodate common industrial input devices. The unit includes built-in USB and RS-232C communication ports, with support for optional Ethernet and serial expansion modules when additional connectivity is needed. It also provides high-speed pulse outputs, encoder input support, and expandable I/O architecture for scalable automation control designs.
Key Features:
-
Compact CP1E PLC CPU Unit: Designed for DC-powered machine automation and control panel installations.
-
12 Digital Inputs: Supports 12 DC inputs with PNP/NPN compatibility for flexible sensor integration.
-
8 Transistor Outputs: Provides 8 PNP digital outputs for fast switching of industrial loads.
-
Built-In Communication Ports: Includes USB and RS-232C connectivity for programming and device communication.
-
Fast Logic Execution Speed: Executes logic instructions at approximately 1.19 µs for responsive control.
-
High-Speed Motion Support: Handles encoder inputs and pulse outputs up to 100 kHz for motion-related control.
-
Expandable System Capacity: Supports up to 140 local I/O points and up to 3 expansion units.
-
Analog and Network Options: Compatible with optional analog boards and Ethernet/serial communication modules.
The CP1E-NA20DT1-D delivers the reliability and precision required for compact PLC-based machine automation and expandable industrial control systems.
