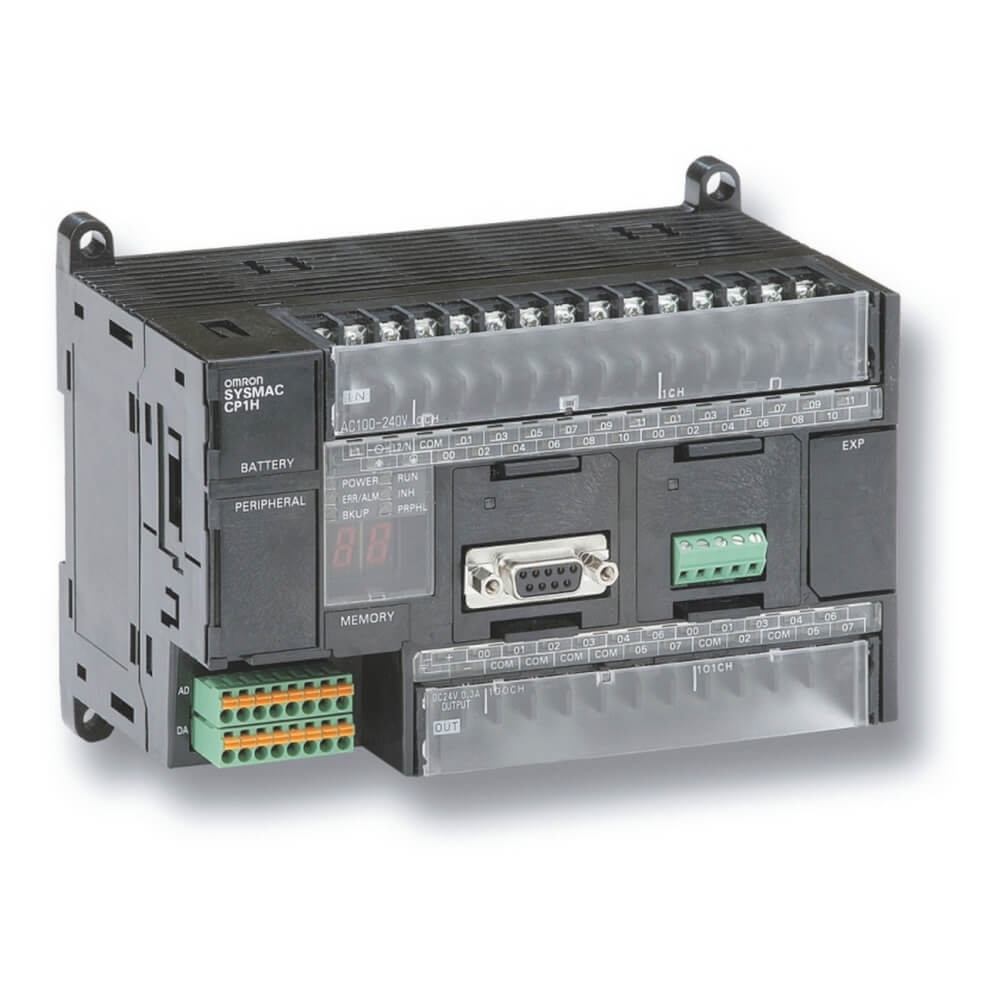

CP1H-X40DR-A | Omron CP1H Series PLC Module with 24 Inputs and 16 Relay Outputs
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CP1H-X40DR-A
Description
The Omron CP1H-X40DR-A is a compact PLC module designed for reliable control of medium-scale automation systems. It provides 24 digital inputs and 16 relay outputs, supporting fast logic execution and flexible expansion. This controller is well suited for machine control, process automation, and equipment integration tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | CP1H-X40DR-A |
| Subcategory | PLC Modules |
| Series | CP1H Series |
| Family | CP1 Series |
| Supply Voltage Type | AC |
| Number of Digital Inputs | 24 |
| Input Type | PNP / NPN |
| Number of Digital Outputs | 16 |
| Output Type | Relay |
| Program Capacity | 20 K steps |
| Data Memory Capacity | 32 K words |
| Logic Execution Time | 0.10 µs |
| Communication Ports | USB |
| Number of USB Ports | 1 |
| Encoder Input Channels | 4 |
| Max Encoder Input Frequency | 100 kHz |
| Built-in Auxiliary Output | 24 VDC, 300 mA |
| Max Expansion Units | 7 |
| Operating Temperature Range | 0 to 55 °C |
| Dimensions (H × W × D) | 90 × 150 × 85 mm |
| Weight | 750 g |
Information About CP1H-X40DR-A
The CP1H-X40DR-A is part of Omron’s CP1H Series within the CP1 family of programmable logic controllers. It features AC power supply operation and supports both PNP and NPN digital input types for broad device compatibility. The PLC includes built-in high-speed processing, encoder input capability, and battery-free memory backup to maintain data integrity. It is designed for use in industrial environments where expandable I/O, multiple communication options, and stable long-term operation are required.
Key Features:
- High-Speed Logic Processing: Executes logic operations with a cycle time of 0.10 µs for responsive control
- Flexible Digital I/O Capacity: Provides 24 digital inputs and 16 relay outputs for diverse control requirements
- Broad Communication Expandability: Supports multiple optional protocols including EtherNet/IP, PROFIBUS, and MODBUS
- Encoder Input Support: Includes four encoder input channels with frequencies up to 100 kHz
- Expandable System Architecture: Allows connection of up to seven expansion units and 320 local I/O points
- Battery-Free Memory Backup: Ensures data retention without the need for battery replacement
- Integrated Auxiliary Power Output: Supplies 24 VDC at 300 mA for connected devices
The CP1H-X40DR-A delivers the reliability and precision required for programmable control in industrial automation systems.
