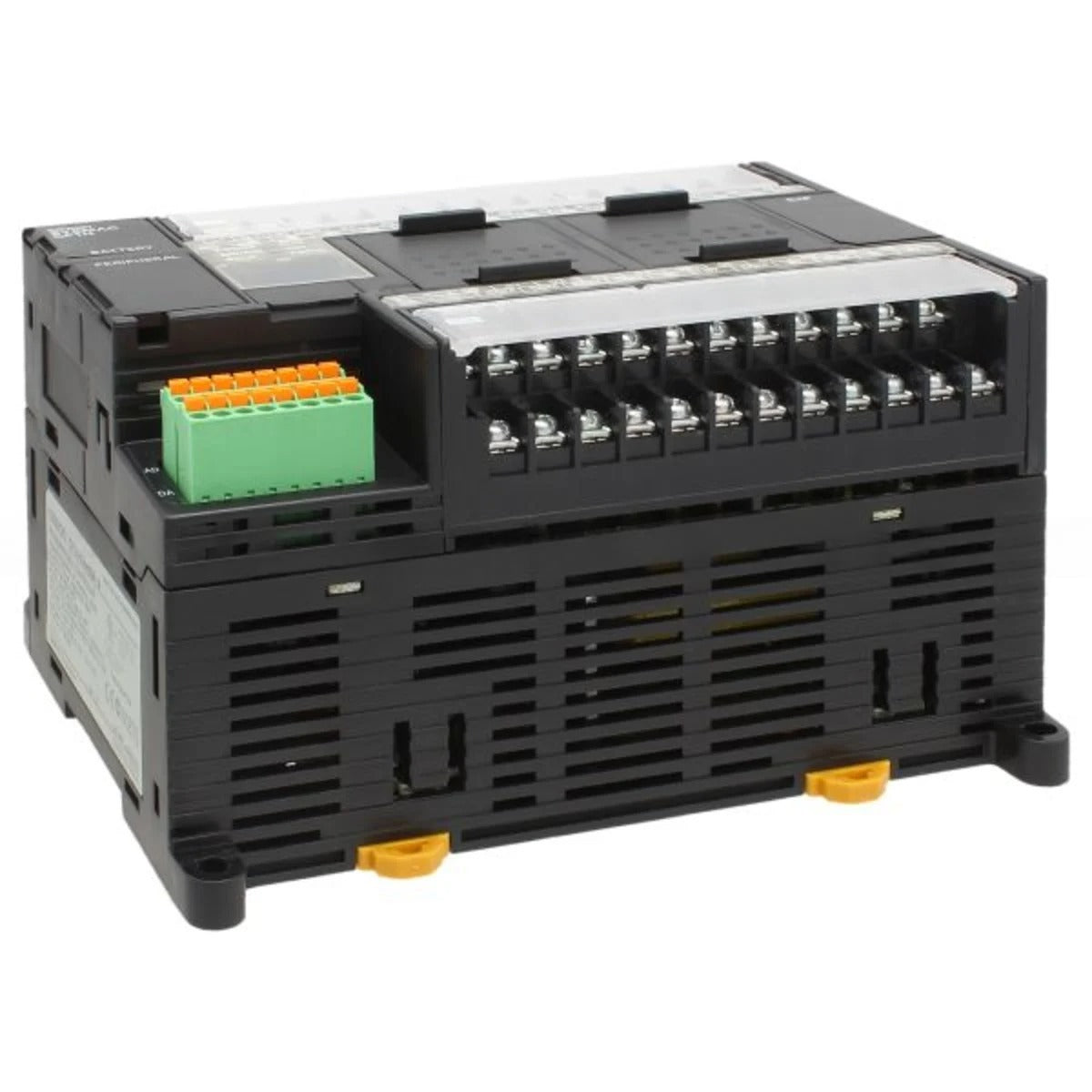

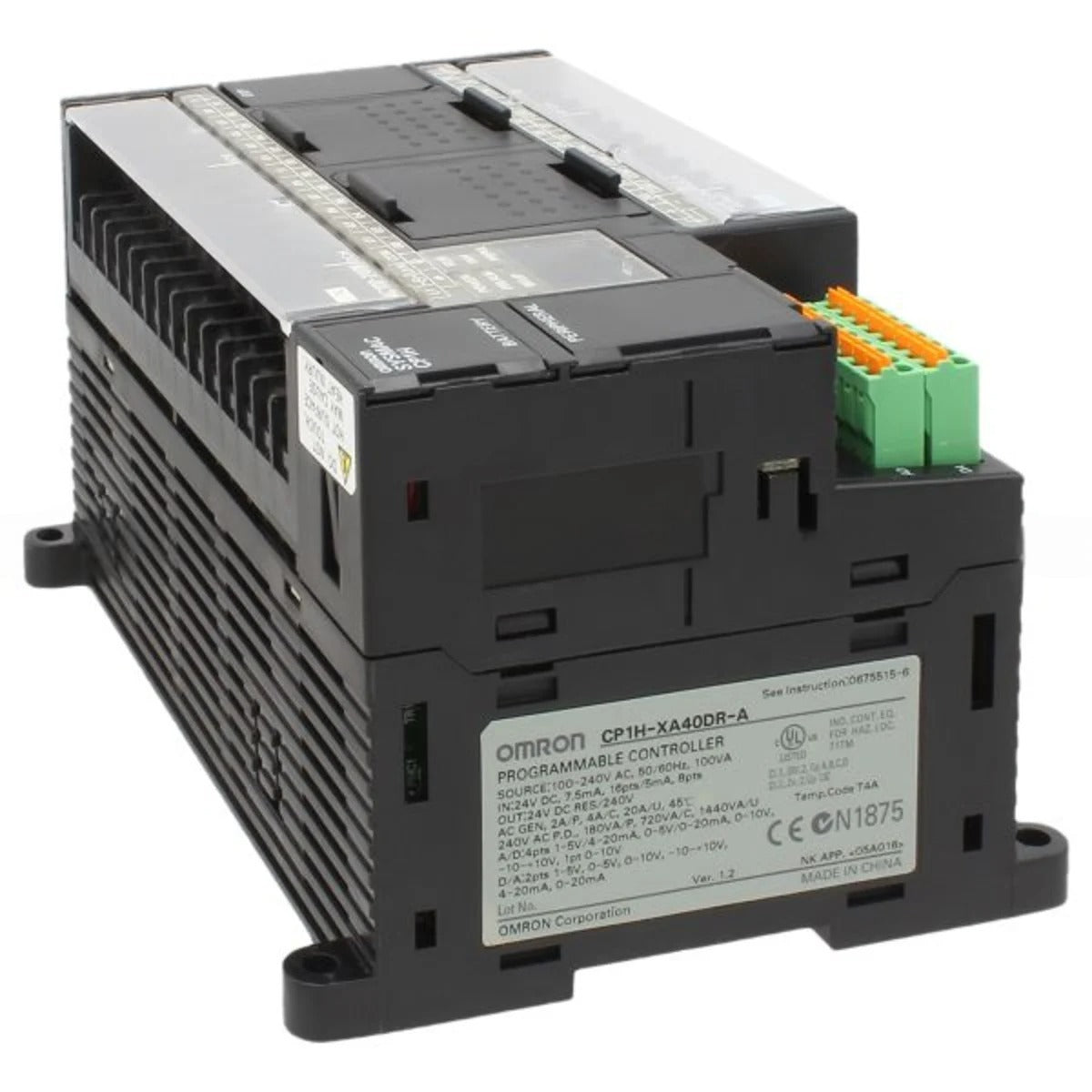

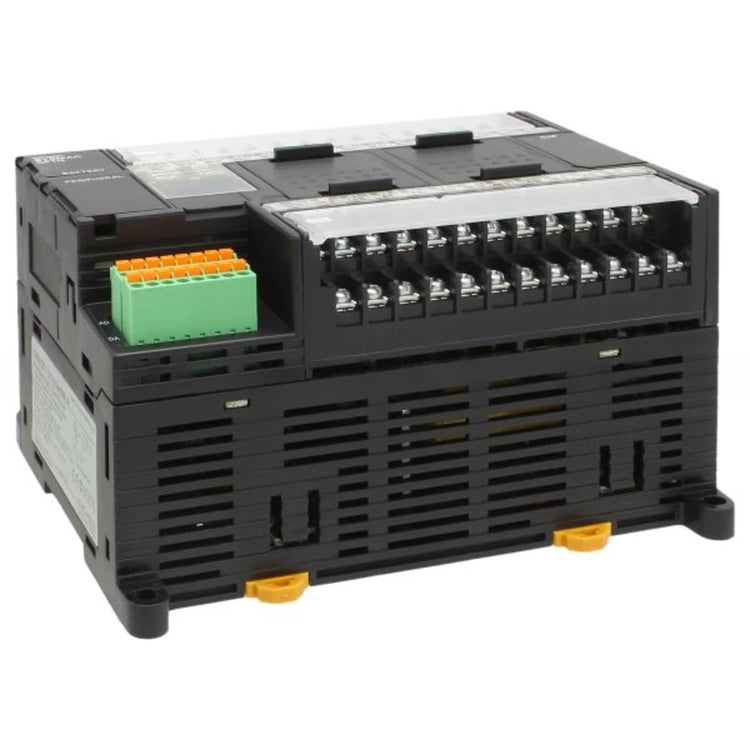

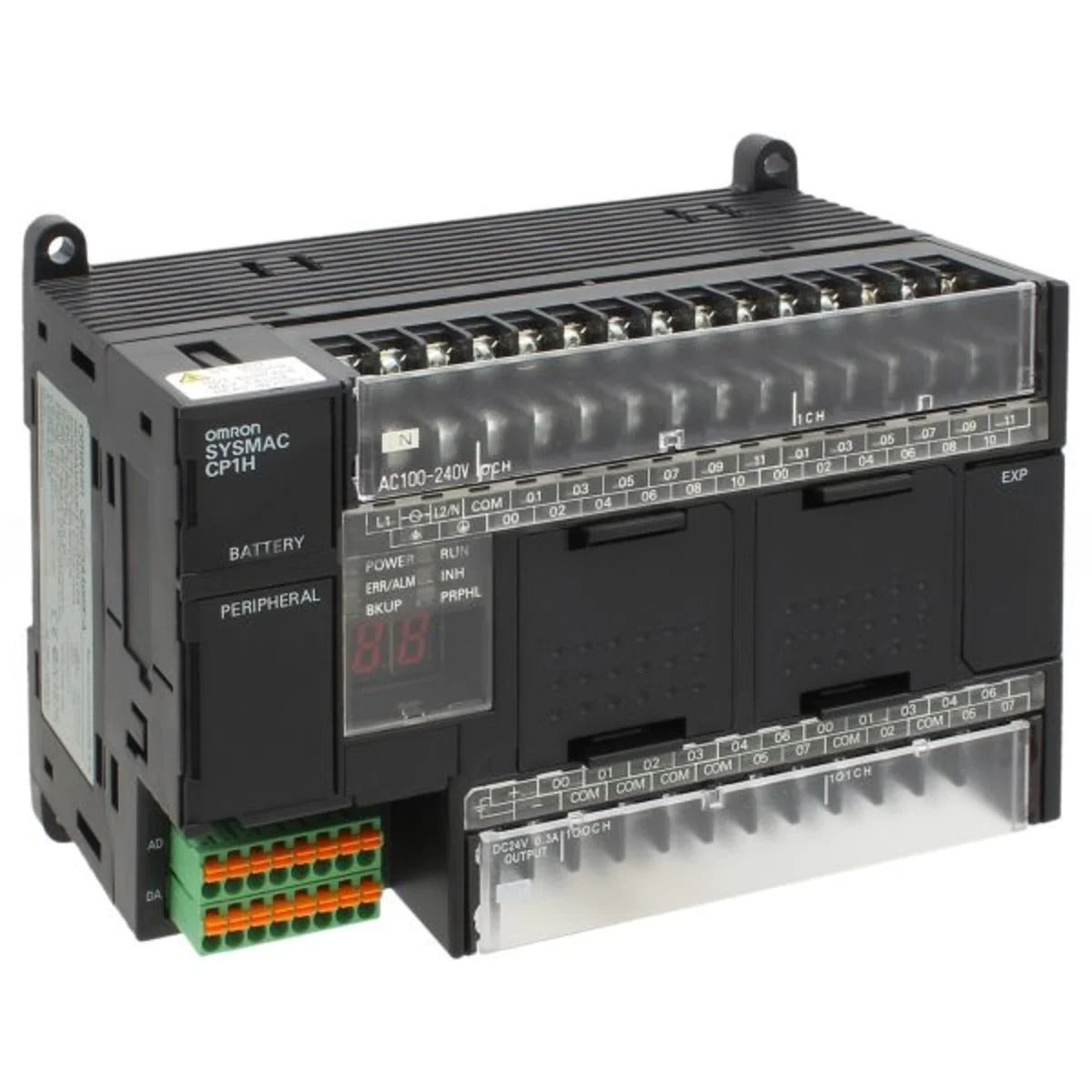

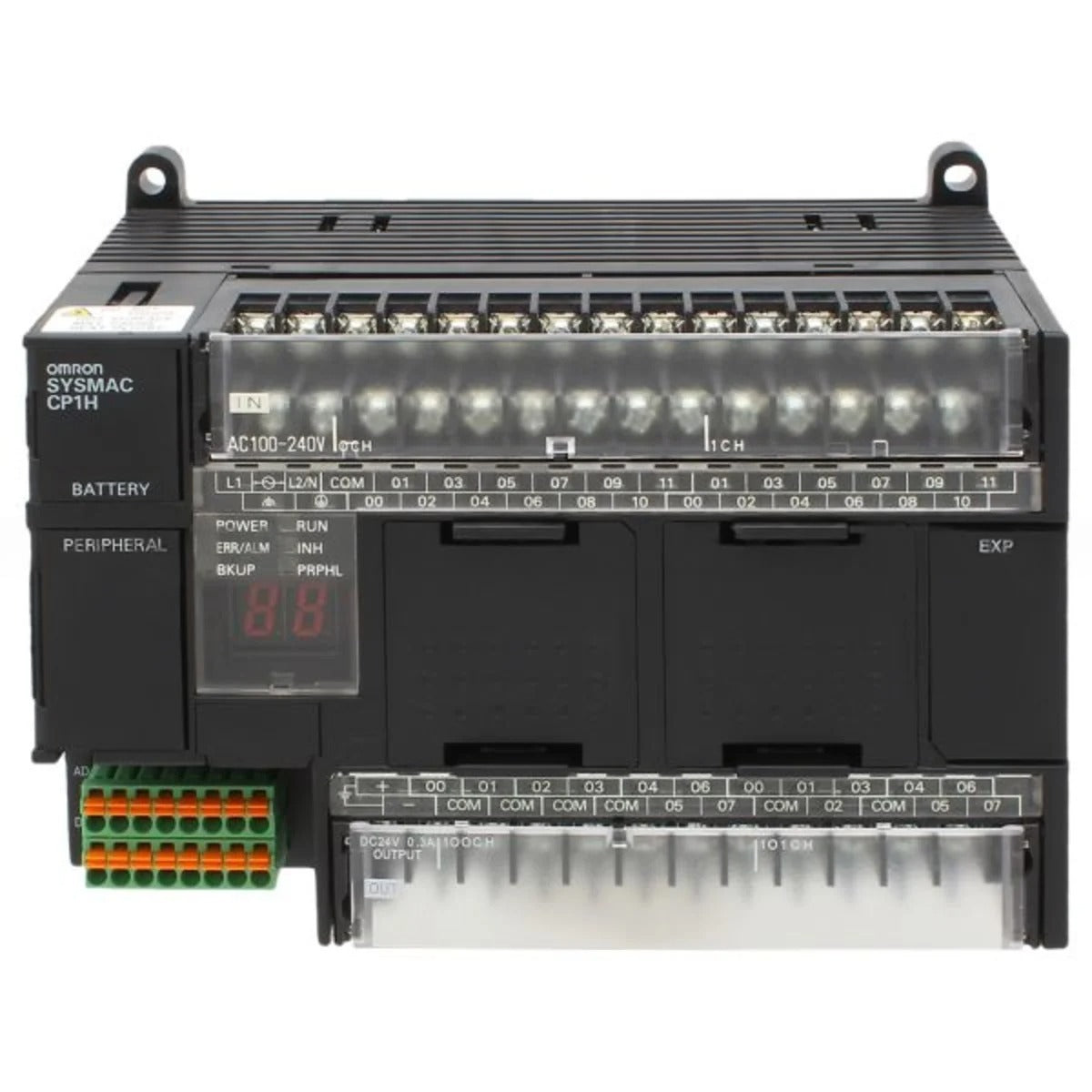

CP1H-XA40DR-A | Omron PLC CPU with Ethernet and 40 I/O Points
- Regular price
- $1,084.00
- Sale price
- $1,084.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CP1H-XA40DR-A
Description
The Omron CP1H-XA40DR-A is a multifunctional PLC CPU from the CP1 series, offering integrated Ethernet communication, analog input capability, and relay outputs. With 24 DC inputs and 16 relay outputs, it is designed for reliable control in a variety of industrial automation tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | CP1H-XA40DR-A |
| Subcategory | PLC CPU Modules |
| Series | CP1 |
| Part Type | CPU |
| Supply Voltage Type | AC |
| Power Supply Voltage | 100–240 VAC |
| Frequency | 50/60 Hz |
| Inputs | 24 |
| Input Type | DC |
| Outputs | 16 |
| Output Type | Relay |
| Max. Number of Analog I/O Channels | 62 |
| Max. Number of Local I/O Points | 320 |
| Max. Number of Expansion Units | 7 |
| Built-in Auxiliary Output | 24 VDC, 300 mA |
| Operating Temperature | 0°C to 55°C |
| Humidity Range | 10% to 90% (non-condensing) |
| Storage Temperature | -20°C to 75°C |
| Dimensions (H x W x D) | 90 × 150 × 85 mm |
| Weight | 750 g |
Information About CP1H-XA40DR-A
The CP1H-XA40DR-A is part of Omron’s CP1 series, built to combine flexibility, connectivity, and processing power in a compact PLC format. It operates on a 100–240 VAC power supply at 50/60 Hz, featuring 24 digital DC inputs and 16 relay outputs for controlling a wide range of devices. The unit includes analog input capability, supports up to 62 analog I/O channels, and can expand to a maximum of 320 local I/O points using up to 7 expansion units. Integrated Ethernet communication allows direct networking with other PLCs, HMIs, and SCADA systems, while a built-in auxiliary 24 VDC output (300 mA) supports peripheral devices. The CP1H-XA40DR-A is designed for demanding industrial environments, with an operating temperature range of 0°C to 55°C and a rugged housing suitable for DIN rail or chassis mounting.
Key Features:
-
40 Integrated I/O Points: Combines 24 DC inputs and 16 relay outputs for versatile control applications.
-
Built-in Ethernet Communication: Enables seamless integration with networked automation systems and remote monitoring.
-
Analog Input Capability: Supports up to 62 analog I/O channels for mixed-signal processing.
-
Relay Output Design: Suitable for switching a variety of loads without additional interface relays.
-
High Expandability: Allows up to 320 local I/O points with a maximum of 7 expansion units.
-
Integrated 24 VDC Auxiliary Output: Provides 300 mA for powering sensors and small devices.
-
AC Power Supply Operation: Accepts 100–240 VAC at 50/60 Hz for global compatibility.
-
Compact, Durable Housing: Measures 90 × 150 × 85 mm and weighs 750 g, suitable for DIN rail or chassis mounting.
-
Wide Environmental Tolerance: Operates from 0°C to 55°C with 10–90% non-condensing humidity for industrial reliability.
The CP1H-XA40DR-A delivers the reliability, expandability, and communication capabilities needed for diverse automation systems requiring both digital and analog control.
