CP1H-XA40DT1-D | Omron PLC with Digital, Analog, and High-Speed Motion Control
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CP1H-XA40DT1-D
Description

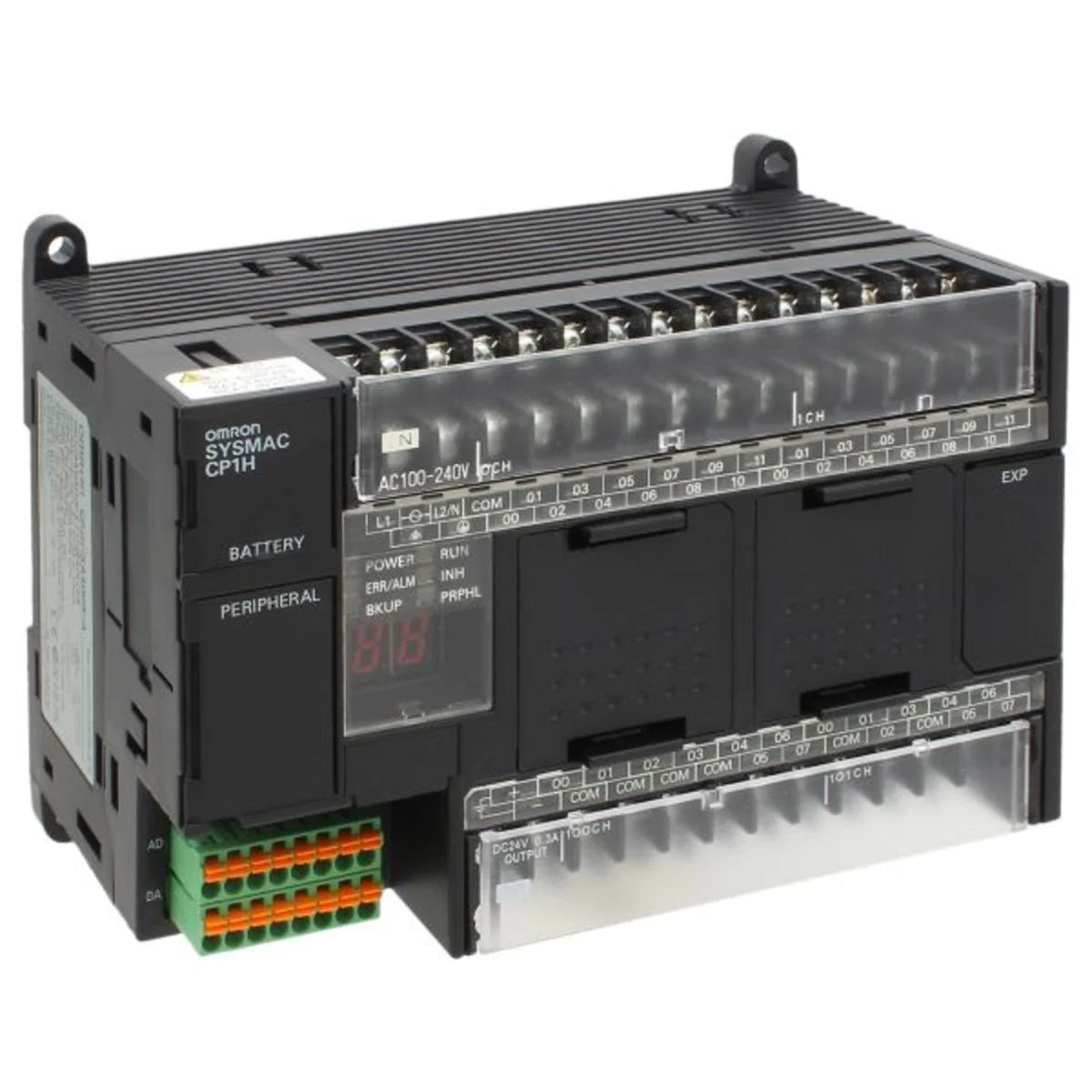

The Omron CP1H-XA40DT1-D is a versatile PLC from the CP1 series, combining digital, analog, and motion control capabilities in a compact chassis. With 24 inputs, 16 outputs, and integrated high-speed pulse and encoder channels, it offers powerful control for complex automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | CP1H-XA40DT1-D |
| Subcategory | PLC CPU Modules |
| Series | CP1 |
| Supply Voltage | 24 VDC |
| Program Capacity | 20 K steps |
| Data Memory Capacity | 32K words |
| Number of Digital Inputs | 20 |
| Number of Analog/Digital Inputs | 4 |
| Input Type | PNP/NPN |
| Number of Digital Outputs | 10 |
| Number of Pulse Outputs | 4 |
| Number of Analog Outputs | 2 |
| Output Type | PNP |
| Logic Execution Time | 0.10 µs |
| Number of Encoder Input Channels | 4 |
| Max Encoder Input Frequency | 100 kHz |
| Max Number of PTP Axes | 4 |
| Max Pulse Output Frequency | 100 kHz |
| Communication Ports | USB |
| Communication Options | CAN, CompoNet, DeviceNet, EtherCAT, EtherNet/IP, MODBUS, PROFIBUS, PROFINET, Serial RS-232C/RS-422/RS-485 |
| Expandable Modules | Up to 7 |
| Mounting Type | Chassis or DIN rail |
| Operating Temperature | 0°C to 55°C |
| Dimensions (H x W x D) | 90 × 150 × 85 mm |
| Weight | 600 g |
Information About CP1H-XA40DT1-D
The CP1H-XA40DT1-D is part of Omron’s CP1 series, designed for multifunctional automation control in compact form factors. This model includes 20 digital inputs, 4 analog/digital inputs, 10 solid-state PNP outputs, 4 high-speed pulse outputs, and 2 analog outputs, providing a broad range of control options in one unit. It offers a program capacity of 20 K steps, 32K words of data memory, and a logic execution speed of 0.10 µs for fast processing. With built-in USB communication and support for multiple optional communication cards, it can be expanded for protocols such as EtherCAT, DeviceNet, EtherNet/IP, and PROFIBUS. The unit also supports up to 4 encoder inputs at 100 kHz and up to 4 PTP axes for motion control, making it suitable for precise positioning applications.
Key Features:
-
Integrated I/O Flexibility: Combines 24 inputs (20 digital, 4 analog/digital) and 16 outputs (10 solid state, 4 pulse, 2 analog) in one PLC for versatile control.
-
High-Speed Motion Control: Supports up to 4 encoder inputs and 4 PTP axes with 100 kHz maximum frequency for precise positioning tasks.
-
Large Memory Capacity: Offers 20 K steps program memory and 32K words data memory to handle complex automation sequences.
-
Fast Execution Speed: Logic execution time of just 0.10 µs ensures rapid processing of control instructions.
-
Expandable Communication Options: Built-in USB port and compatibility with multiple optional communication modules, including EtherCAT, DeviceNet, and PROFINET.
-
Analog I/O Capability: Includes 4 analog inputs and 2 analog outputs for direct connection to sensors and actuators.
-
Compact and Durable Construction: Measures 90 × 150 × 85 mm with a weight of 600 g, designed for DIN rail or chassis mounting.
-
Wide Operating Temperature Range: Functions reliably between 0°C and 55°C for diverse industrial environments.
-
PNP Input/Output Type: Ensures compatibility with a wide range of industrial devices.
The CP1H-XA40DT1-D delivers the reliability, versatility, and processing speed required for complex automation systems integrating digital, analog, and motion control functions.
