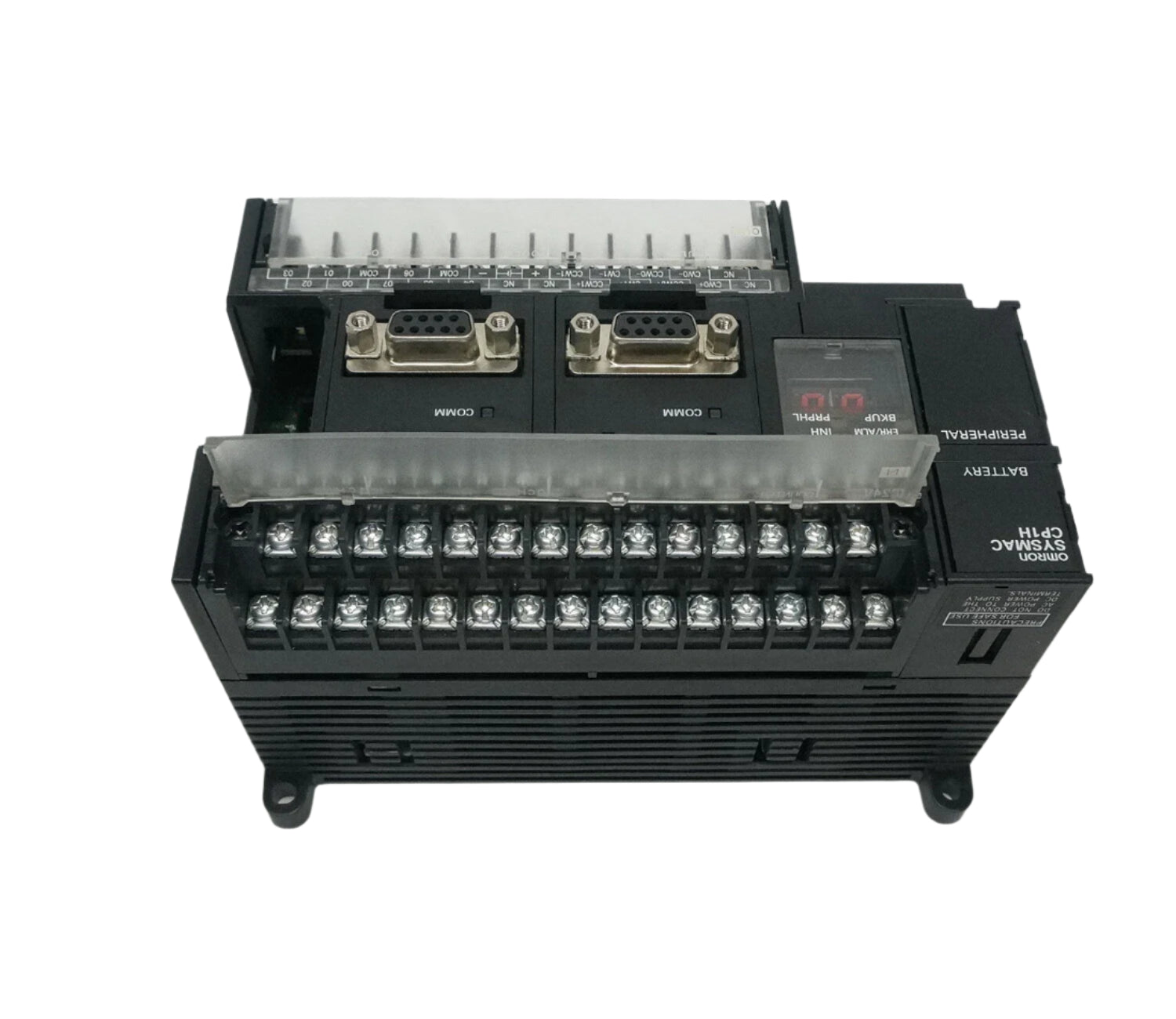

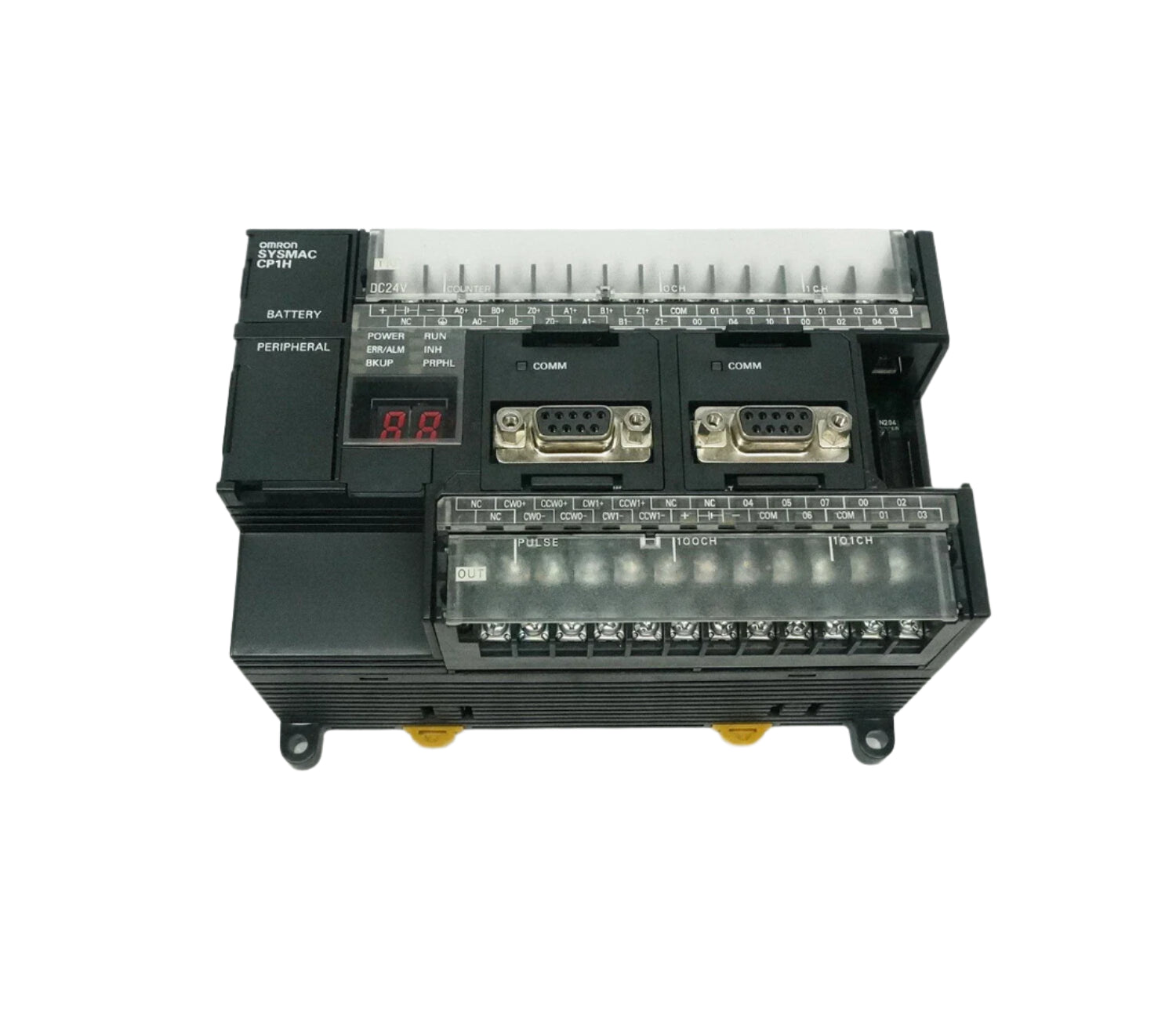

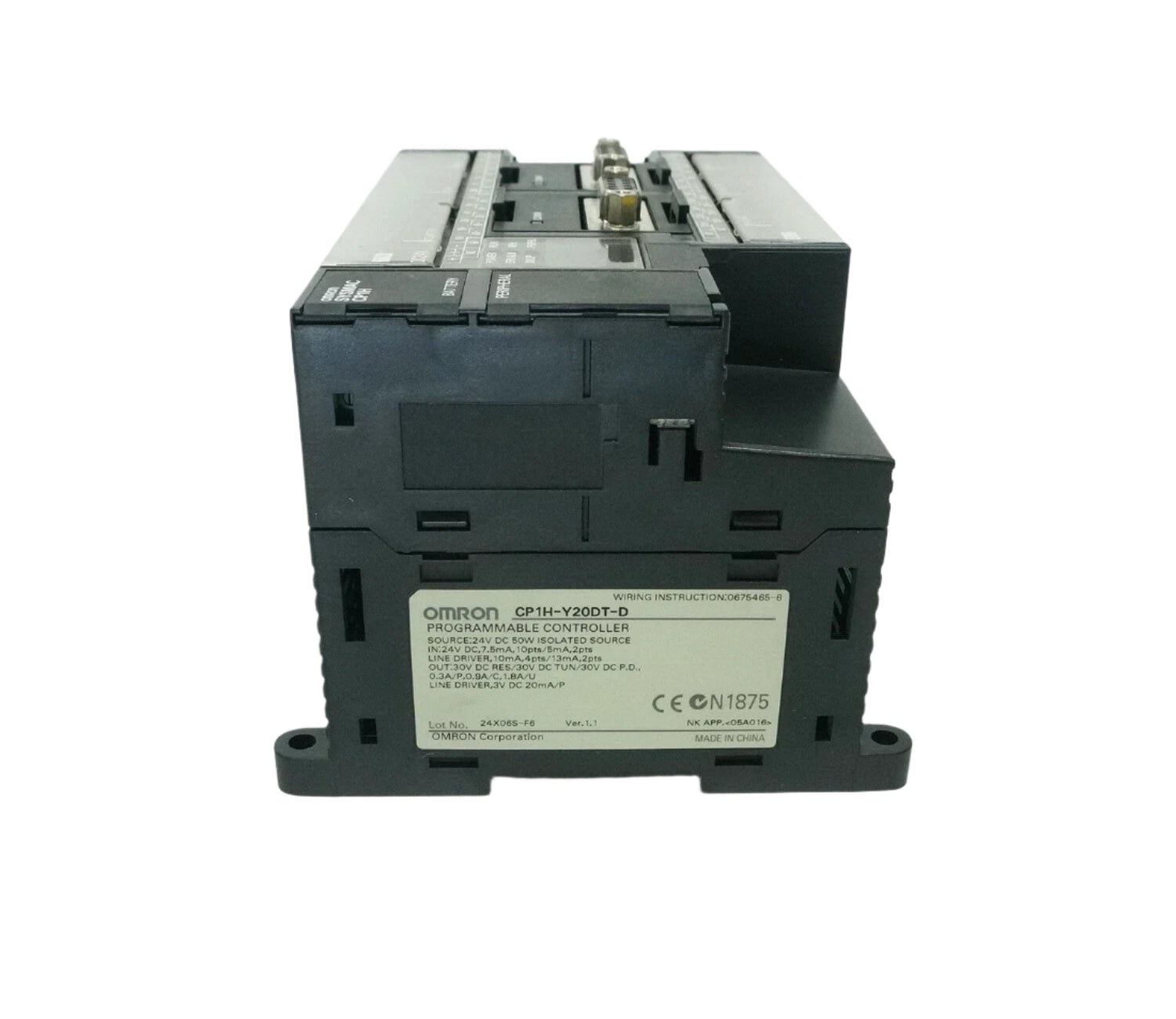

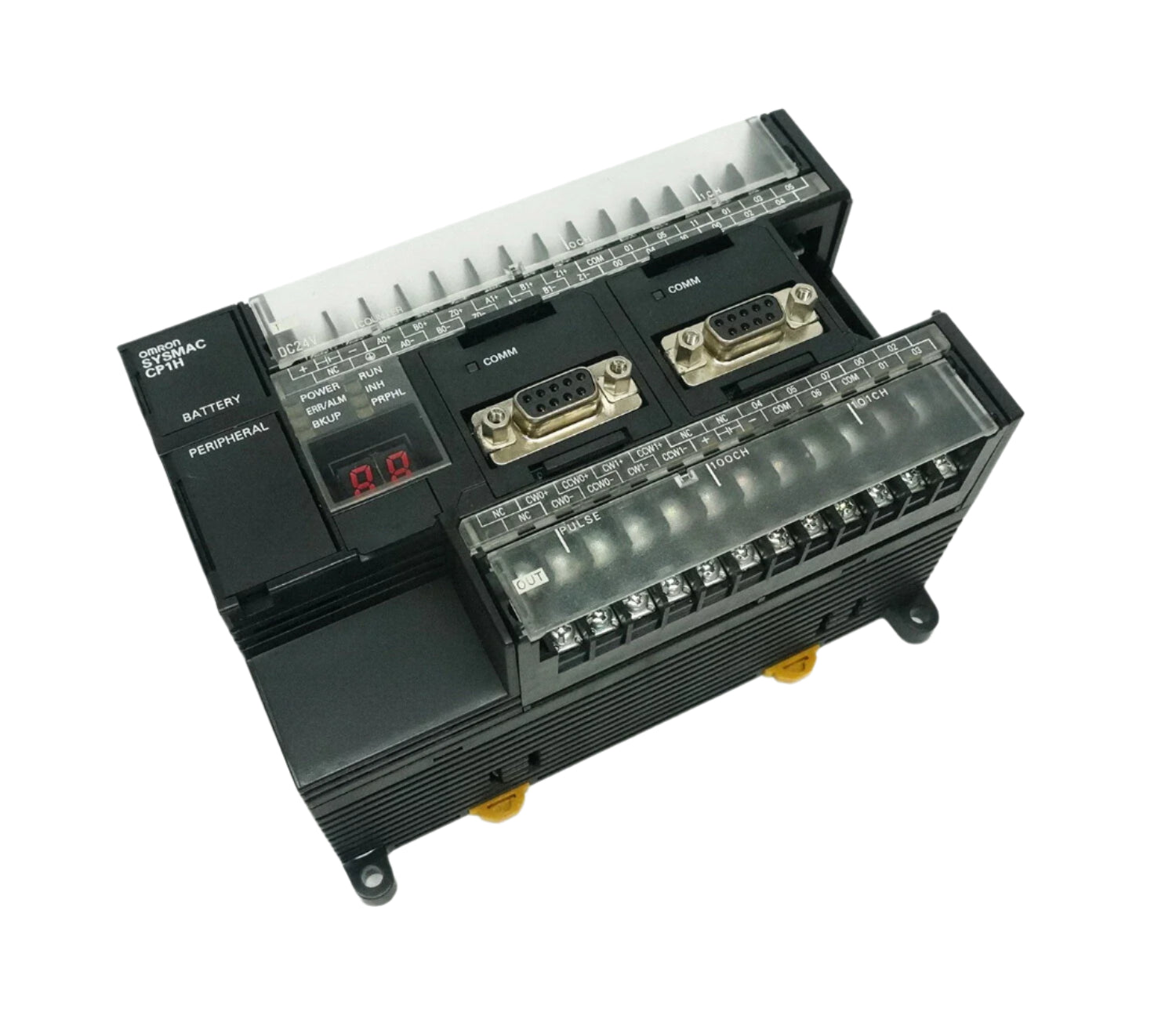

CP1H-Y20DT-D | Omron 20 K Step CPU Module with 20 I/O and High-Speed Motion Control
- Regular price
- $1,355.00
- Sale price
- $1,355.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CP1H-Y20DT-D
Description
The Omron CP1H-Y20DT-D is a compact CPU module from the CP1 series designed for versatile automation control. It features 20 K steps of program memory, 20 standard I/O points, and advanced motion functions including high-speed counters and pulse outputs.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | CP1H-Y20DT-D |
| Subcategory | PLC CPU Modules |
| Series | CP1 |
| Product Type | CPU module |
| Program Memory Capacity | 20 K steps |
| Normal I/O | 20 |
| Normal Inputs | 12 |
| Normal Outputs | 8 |
| Output Type | NPN transistor |
| High-Speed Counters | 1 MHz, 2 axes (single-phase) |
| Pulse Outputs | 100 kHz, 2 axes |
| Power Supply | 24 VDC |
| Power Consumption | 50 W |
| Maximum I/O Points | 300 |
| Weight | 1.00 lbs |
Information About CP1H-Y20DT-D
The CP1H-Y20DT-D is part of Omron’s CP1 series of programmable controllers, developed for flexible and efficient automation across various industries. Operating on a 24 VDC power supply, it provides 12 digital inputs and 8 NPN transistor outputs, with a maximum system capacity of 300 I/O points when expanded. The module supports two 1 MHz high-speed counters for single-phase input and two 100 kHz pulse outputs, enabling precise positioning and motion control tasks. With a program memory capacity of 20 K steps, it allows for the creation of complex control logic while maintaining reliable operation in industrial environments.
Key Features:
-
20 K Step Program Memory: Supports the creation of advanced and detailed automation sequences.
-
Integrated 20 I/O Points: Includes 12 digital inputs and 8 NPN transistor outputs for standard control functions.
-
High-Speed Counter Support: Features two single-phase counters operating at up to 1 MHz for accurate position tracking.
-
Dual Pulse Output Channels: Provides two outputs at 100 kHz each for precise motion control applications.
-
Expandable I/O Capacity: Can be expanded up to 300 I/O points to meet growing system demands.
-
24 VDC Power Supply: Ensures compatibility with standard industrial control power systems.
-
Compact and Lightweight Design: Simplifies installation in space-limited control panels.
-
Reliable Industrial Performance: Designed to maintain stable operation in demanding environments.
-
Transistor Output Type: Utilizes NPN outputs for compatibility with a wide range of devices.
The CP1H-Y20DT-D delivers the reliability and performance required for small to medium-scale automation systems with advanced motion capabilities.
