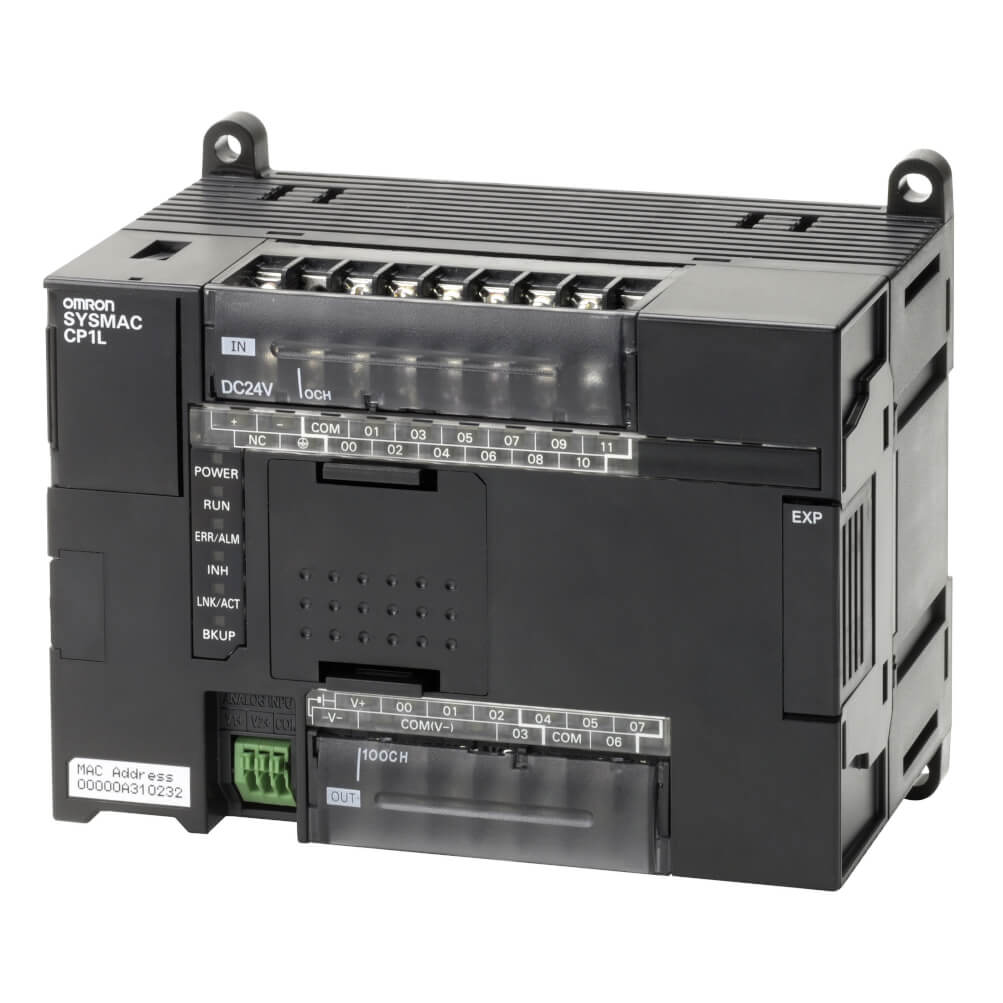

CP1L-EL20DR-D | Omron Compact PLC CPU Unit with 12 DC Inputs, 8 Relay Outputs, Ethernet Port
- Regular price
- $457.00
- Sale price
- $457.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CP1L-EL20DR-D
Description
The Omron CP1L-EL20DR-D is a compact programmable logic controller designed for machine control and industrial automation applications requiring integrated I/O and Ethernet communication. The CP1L-EL20DR-D provides 12 digital DC inputs, 8 relay outputs, and built-in analog input capability for flexible control system design. It supports fast logic execution and network connectivity for modern PLC-based control architectures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | CP1L-EL20DR-D |
| Subcategory | Programmable Logic Controllers |
| Supply Voltage Type | DC (24 VDC supply) |
| Digital Inputs | 12 × 24 VDC |
| Input Type | PNP/NPN |
| Digital Outputs | 8 |
| Output Type | Relay |
| Output Rating | 2 Amp per output |
| Program Capacity | 15K Steps |
| Data Memory Capacity | 10K Words |
| Logic Execution Time | 0.55 µs |
| Ethernet Ports | 1 × Ethernet TCP/IP |
| Encoder Input Channels | 4 |
| Max Encoder Input Frequency | 100 kHz |
| Max Local I/O Points | 60 |
| Max Expansion Units | 1 |
| Operating Temperature Range | 0 to 55 °C |
| Dimensions (H × W × D) | 90 mm × 130 mm × 85 mm |
| Weight | 400 g |
Information About CP1L-EL20DR-D
The CP1L-EL20DR-D is a CPU unit from the Omron SYSMAC CP1L series, developed for small to mid-scale automation systems with compact installation requirements. The controller features relay-based output switching, PNP/NPN compatible digital inputs, and an integrated Ethernet TCP/IP port for PLC networking and remote communication. It is designed to support expansion through optional communication boards and analog I/O modules, allowing system scalability up to 60 local I/O points. The unit incorporates high-speed logic execution, encoder input support, and memory capacity suitable for structured machine sequencing and factory automation control.
Key Features:
-
Integrated Digital I/O Capacity: Includes 12 × 24VDC digital inputs and 8 relay outputs rated at 2A for direct field device control.
-
Ethernet Communication Port: Built-in TCP/IP Ethernet interface supports networked automation and PLC connectivity.
-
Relay Output Switching: Provides robust relay outputs for controlling actuators and industrial loads.
-
Fast Logic Processing Speed: Executes logic instructions at approximately 0.55 µs for responsive machine control.
-
Program and Data Memory Support: Offers up to 15K steps program capacity with 10K words data memory.
-
Encoder Input Capability: Supports 4 encoder input channels with maximum frequency of 100 kHz for motion-related monitoring.
-
Expandable I/O Architecture: Allows up to 60 local I/O points and one expansion unit for system growth.
-
Analog and Communication Options: Supports optional analog boards and serial RS-232/RS-422/RS-485 communication modules.
The CP1L-EL20DR-D delivers the reliability and precision required for compact PLC machine control and industrial automation networking.
