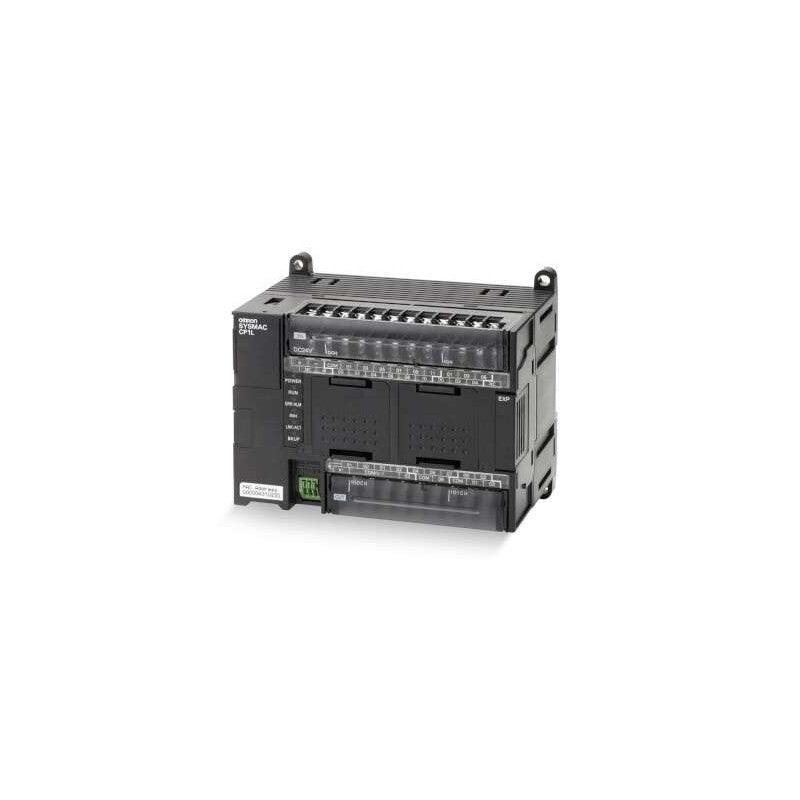

CP1L-EL20DT-D | Omron CP1L Series Compact PLC 24 VDC
- Regular price
- $467.00
- Sale price
- $467.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CP1L-EL20DT-D
Description
The Omron CP1L-EL20DT-D is a compact programmable controller designed for reliable logic control in small-scale industrial automation systems. It operates on a 24 VDC power supply and provides integrated digital I/O with high-speed processing performance. This PLC is suited for applications requiring efficient control, low power consumption, and stable operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC Controllers |
| Part Number | CP1L-EL20DT-D |
| Subcategory | Compact PLCs |
| Series | CP1L Series |
| Product Type | Programmable Controller |
| Supply Voltage | 24 VDC |
| Operating Voltage Range | 20.4–26.4 VDC |
| Power Consumption | 13 W Max |
| Digital Inputs | 12 |
| Digital Outputs | 8 |
| Output Type | Transistor (Sinking) |
| Total I/O Points | 20 |
| Control Method | Stored Program Method |
| I/O Control Method | Cyclic Scan with Immediate Refreshing |
| Program Language | Ladder Diagram |
| Common Processing Time | 0.4 ms |
| Inrush Current | 30 A Max (20 ms) |
| Ambient Operating Temperature | 0°C to 55°C |
| Ambient Humidity | 10% to 90% (Non-Condensing) |
| Operating Environment | No Corrosive Gas |
| Mounting Type | DIN Rail / Panel Mount |
| Standards | CE, UC1, N, L |
| Weight | 1.00 lbs (0.45 kg) |
Information About CP1L-EL20DT-D
The CP1L-EL20DT-D is part of Omron’s CP1L series, a family of compact PLCs engineered for cost-effective and space-saving automation solutions. It features built-in digital inputs and sinking transistor outputs, making it compatible with a wide range of sensors and actuators. The controller uses a stored program method with cyclic scan processing and supports ladder diagram programming. Designed for use in non-corrosive industrial environments, it delivers dependable performance across standard operating temperature and humidity ranges.
Key Features:
- Compact CP1L Series PLC: Designed for space-efficient industrial control applications.
- Integrated Digital I/O: Provides 12 digital inputs and 8 sinking transistor outputs.
- 24 VDC Power Operation: Suitable for low-voltage industrial control systems.
- High-Speed Processing: Achieves a common processing time of 0.4 ms.
- Low Power Consumption: Operates with a maximum power usage of 13 W.
- Ladder Diagram Programming: Supports standard PLC programming methods.
- Industrial Operating Range: Designed for stable operation from 0°C to 55°C.
The CP1L-EL20DT-D delivers the reliability and precision required for compact PLC control in industrial automation environments.
