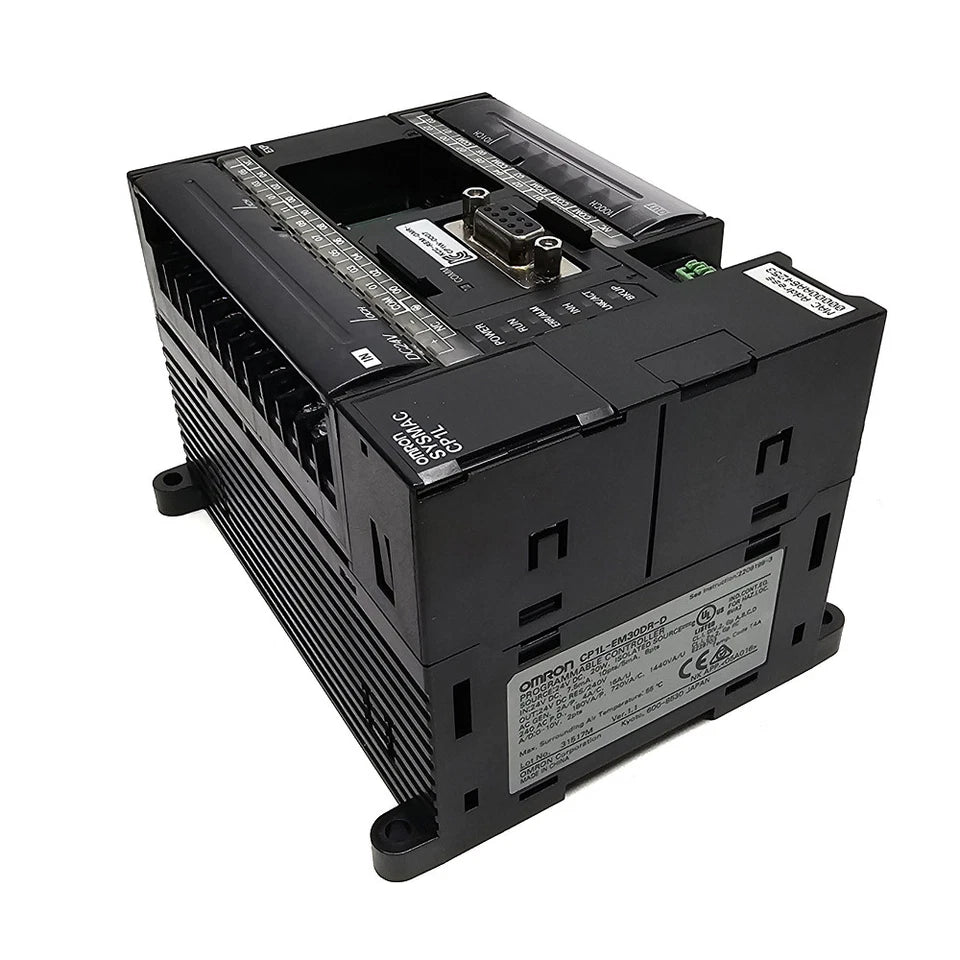

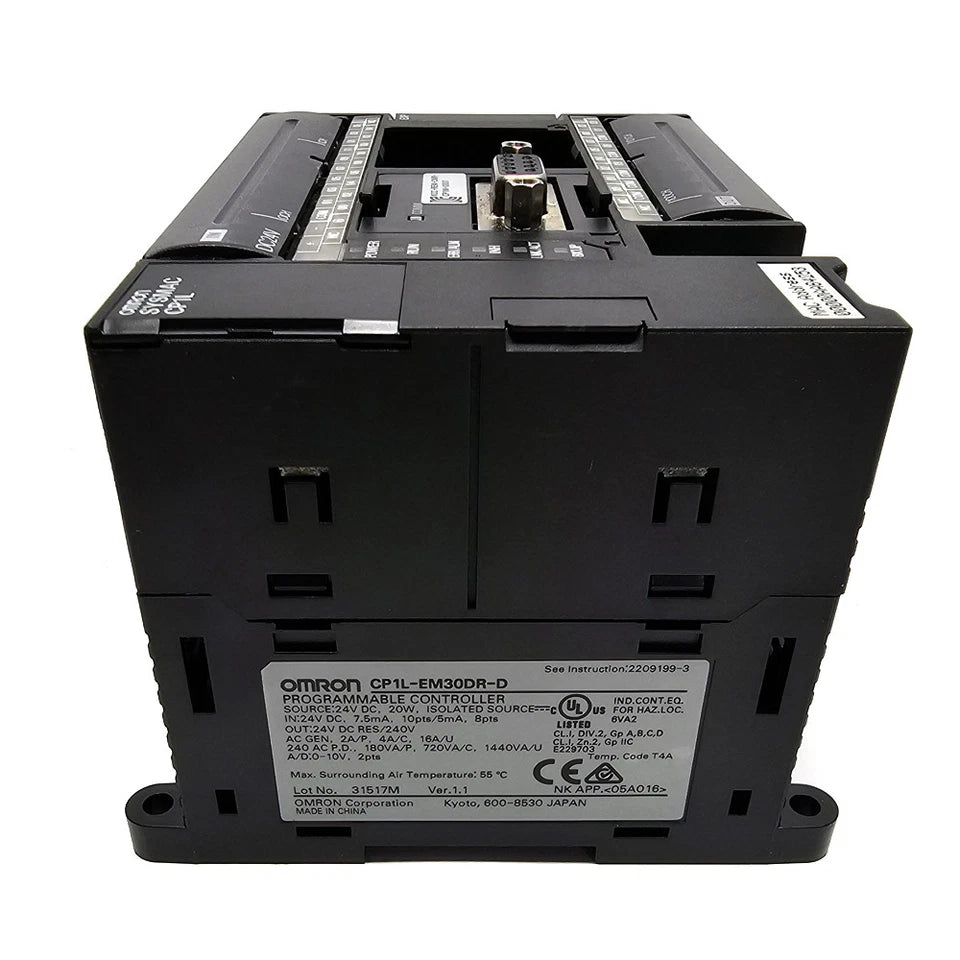

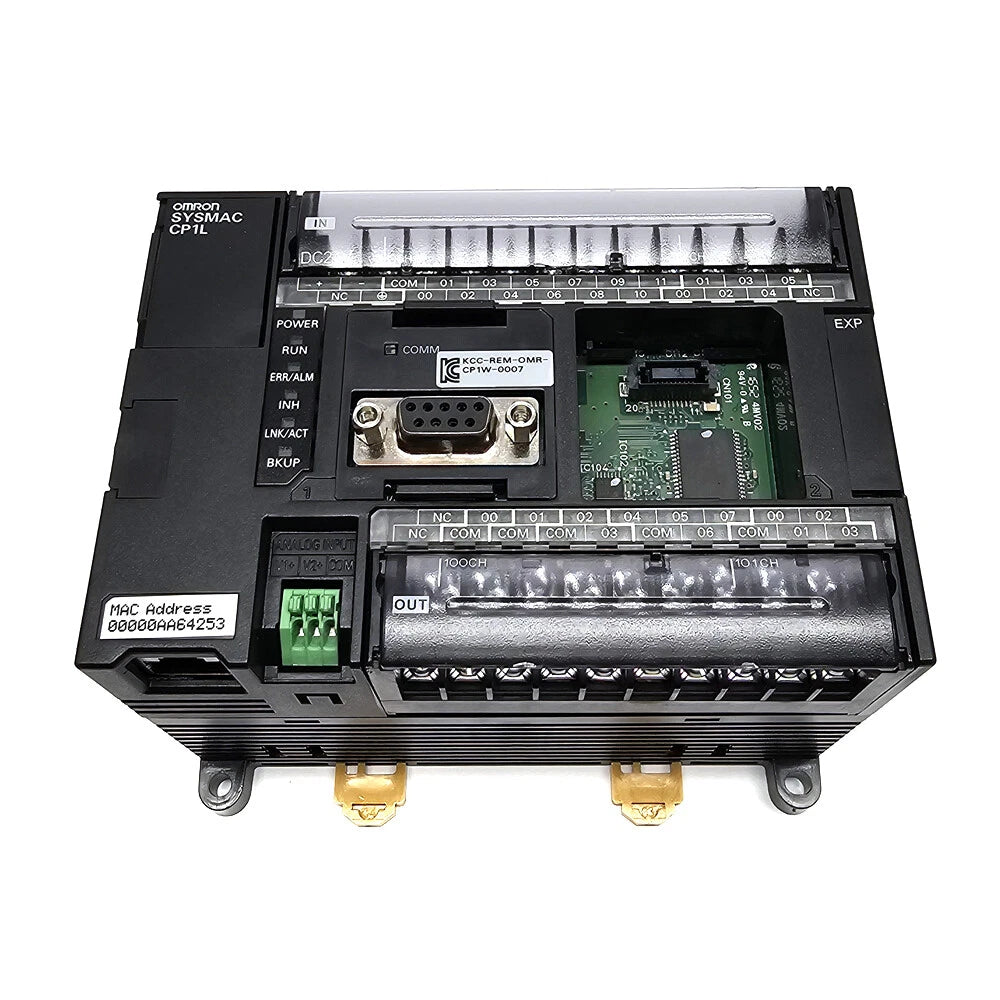

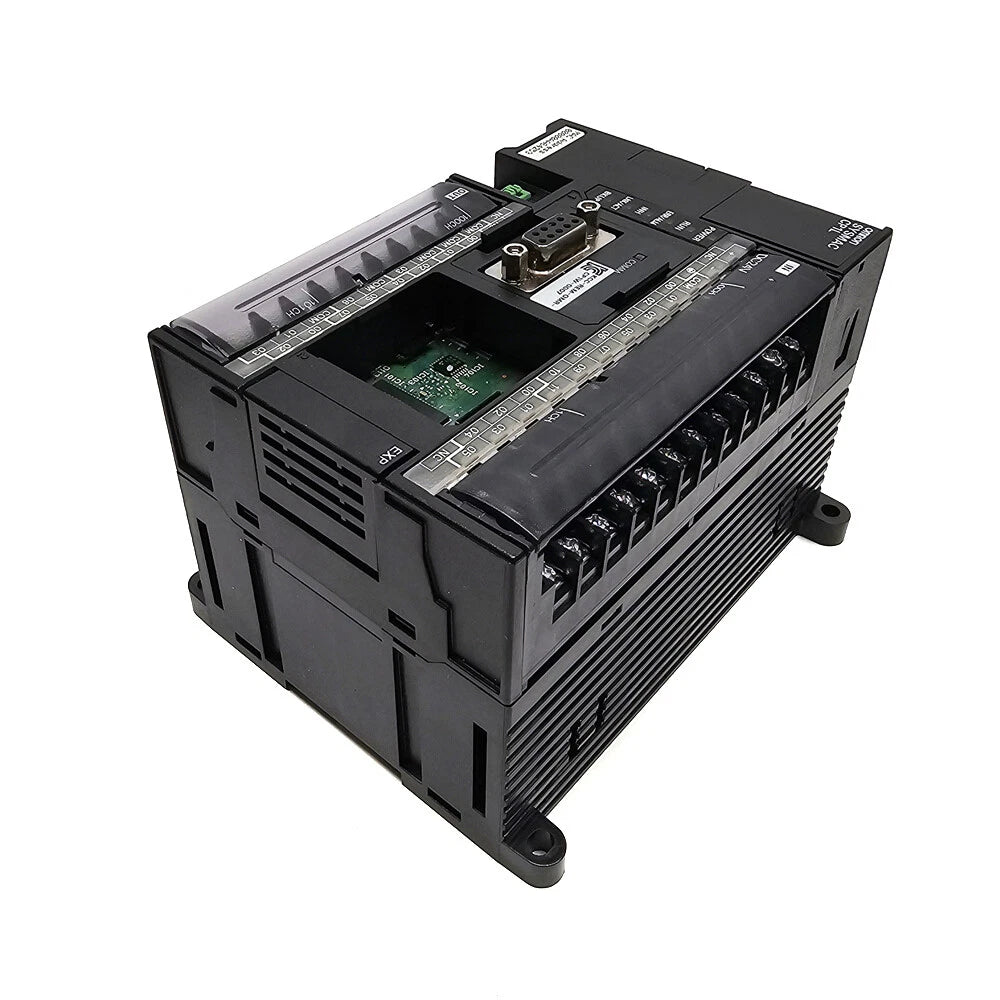

CP1L-EM30DR-D | Omron CP1L Series Compact PLC with Ethernet
- Regular price
- $339.00
- Sale price
- $339.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CP1L-EM30DR-D
Description
The Omron CP1L-EM30DR-D is a compact PLC designed for reliable machine control and flexible automation tasks. It features built-in Ethernet communication, relay outputs, and fast logic execution for responsive control performance. This controller is well suited for small to mid-scale automation systems requiring expansion capability and stable operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC Controllers |
| Part Number | CP1L-EM30DR-D |
| Subcategory | Compact PLCs |
| Series | CP1L |
| Product Type | Programmable Logic Controller |
| Supply Voltage | 24 VDC |
| Digital Inputs | 18 (PNP/NPN) |
| Digital Outputs | 12 (Relay) |
| Program Capacity | 20K Steps |
| Data Memory | 32K Words |
| Logic Execution Time | 0.55 µs |
| Communication Ports | Ethernet TCP/IP |
| Ethernet Ports | 1 |
| Encoder Input Channels | 4 |
| Max. Encoder Frequency | 100 kHz |
| Max. Expansion Units | 3 |
| Max. Local I/O Points | 150 |
| Operating Temperature Range | 0°C to 55°C |
| Mounting Type | DIN Rail / Chassis Mount |
| Software | CX-One |
| Approval Agency | CE |
| Dimensions (H x W x D) | 90 mm x 130 mm x 85 mm |
| Weight | 1.1 lbs (499 g) |
Information About CP1L-EM30DR-D
The CP1L-EM30DR-D is part of Omron’s CP1L series, which is engineered to provide cost-effective yet powerful PLC functionality in a compact form factor. It supports DC power input and includes a combination of digital inputs and relay outputs for versatile I/O handling. The controller integrates Ethernet TCP/IP communication and supports optional serial communication through expansion modules. With expandable I/O capacity and battery-free memory backup, it is designed for dependable long-term use in industrial environments.
Key Features:
- Compact PLC Design: Optimized for space-efficient control panel installations.
- Integrated Ethernet Port: Enables network communication via Ethernet TCP/IP.
- High-Speed Logic Processing: Executes logic with a 0.55 µs instruction time.
- Flexible I/O Configuration: Includes 18 digital inputs and 12 relay outputs.
- Expandable Architecture: Supports up to three expansion modules and increased I/O capacity.
- Encoder Input Support: Provides four high-speed encoder input channels up to 100 kHz.
- Battery-Free Memory Backup: Ensures data retention without maintenance requirements.
The CP1L-EM30DR-D delivers the reliability and precision required for compact PLC control in industrial automation systems.
