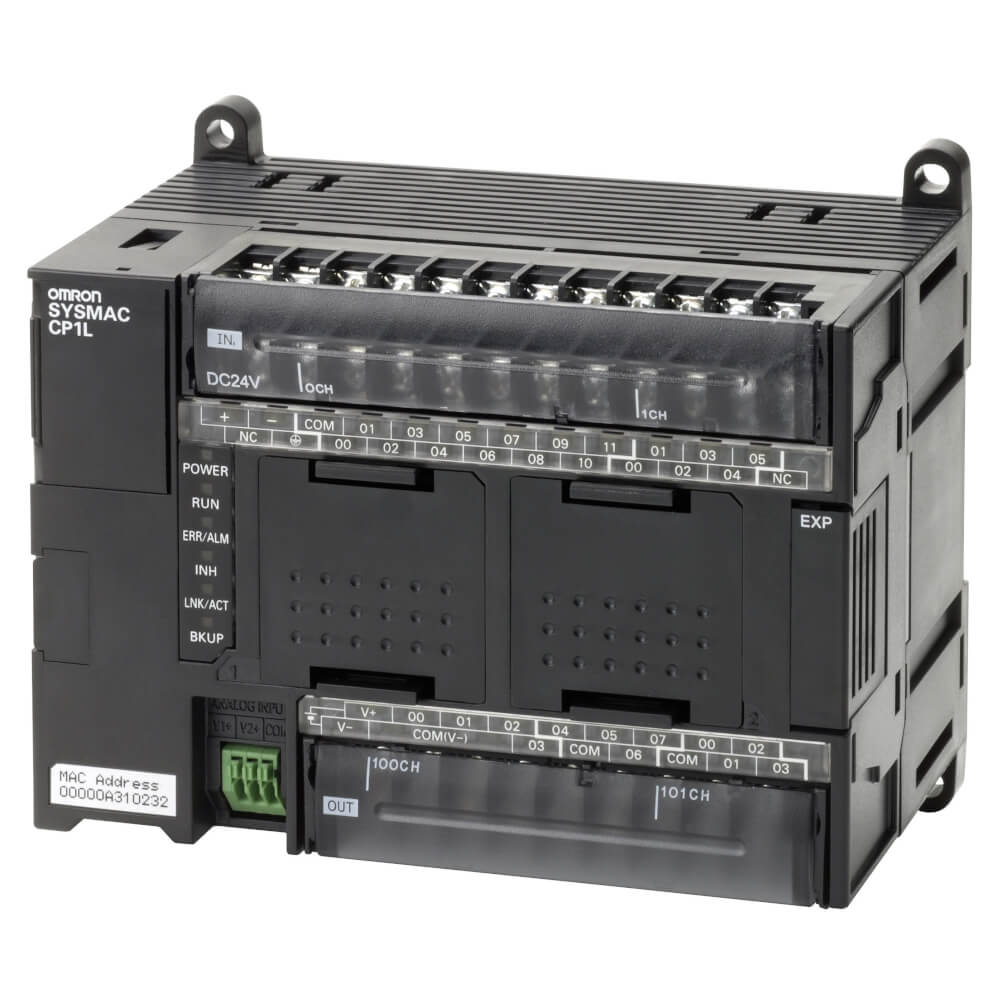

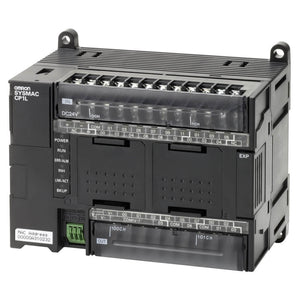

CP1L-EM30DT1-D | Omron Compact PLC with Ethernet and 30 I/O Points
- Regular price
- $337.00
- Sale price
- $337.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CP1L-EM30DT1-D
Description
The Omron CP1L-EM30DT1-D is a compact programmable logic controller designed for machine control and automation tasks requiring Ethernet connectivity. It features built-in digital I/O, high-speed processing, and support for motion control functions in space-efficient installations. This PLC is suitable for compact machines requiring reliable control and network integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Automation Control Modules |
| Part Number | CP1L-EM30DT1-D |
| Subcategory | Programmable Logic Controllers |
| Supply Voltage | 24 VDC |
| Digital Inputs | 18 (PNP/NPN) |
| Digital Outputs | 12 (PNP transistor) |
| Program Capacity | 20 K steps |
| Data Memory | 32 K words |
| Logic Execution Time | 0.55 µs |
| Communication Interface | Ethernet TCP/IP |
| Encoder Inputs | 4 channels |
| Max. Pulse Output Frequency | 100 kHz |
| Expansion Units | Up to 3 |
| Mounting Type | DIN Rail / Chassis Mount |
| Operating Temperature Range | 0°C to 55°C |
| Weight | 455 g |
Information About CP1L-EM30DT1-D
The CP1L-EM30DT1-D is part of Omron’s CP1L series, which combines the size of a micro-PLC with the functionality of modular controllers. It is built with integrated Ethernet TCP/IP communication for monitoring, data exchange, and remote access. The controller supports expansion units and optional boards to increase I/O capacity and communication flexibility. Its architecture is compatible with Omron CP1H, CJ1, and CS1 series, allowing program reuse and standardized instruction sets.
Key Features:
-
All-in-One PLC Design: Combines CPU, power supply, and I/O in a compact housing.
-
Integrated Ethernet Port: Enables TCP/IP communication for monitoring and data exchange.
-
Digital I/O Capacity: Includes 18 digital inputs and 12 PNP transistor outputs.
-
High-Speed Processing: Logic execution time of 0.55 µs ensures fast response.
-
Motion Control Support: Provides encoder inputs and pulse outputs for positioning tasks.
-
Expandable Architecture: Supports up to 3 expansion units and additional I/O modules.
-
Battery-Free Memory Backup: Retains programs and data without battery maintenance.
The CP1L-EM30DT1-D delivers the reliability and precision required for compact PLC-based machine automation systems.
