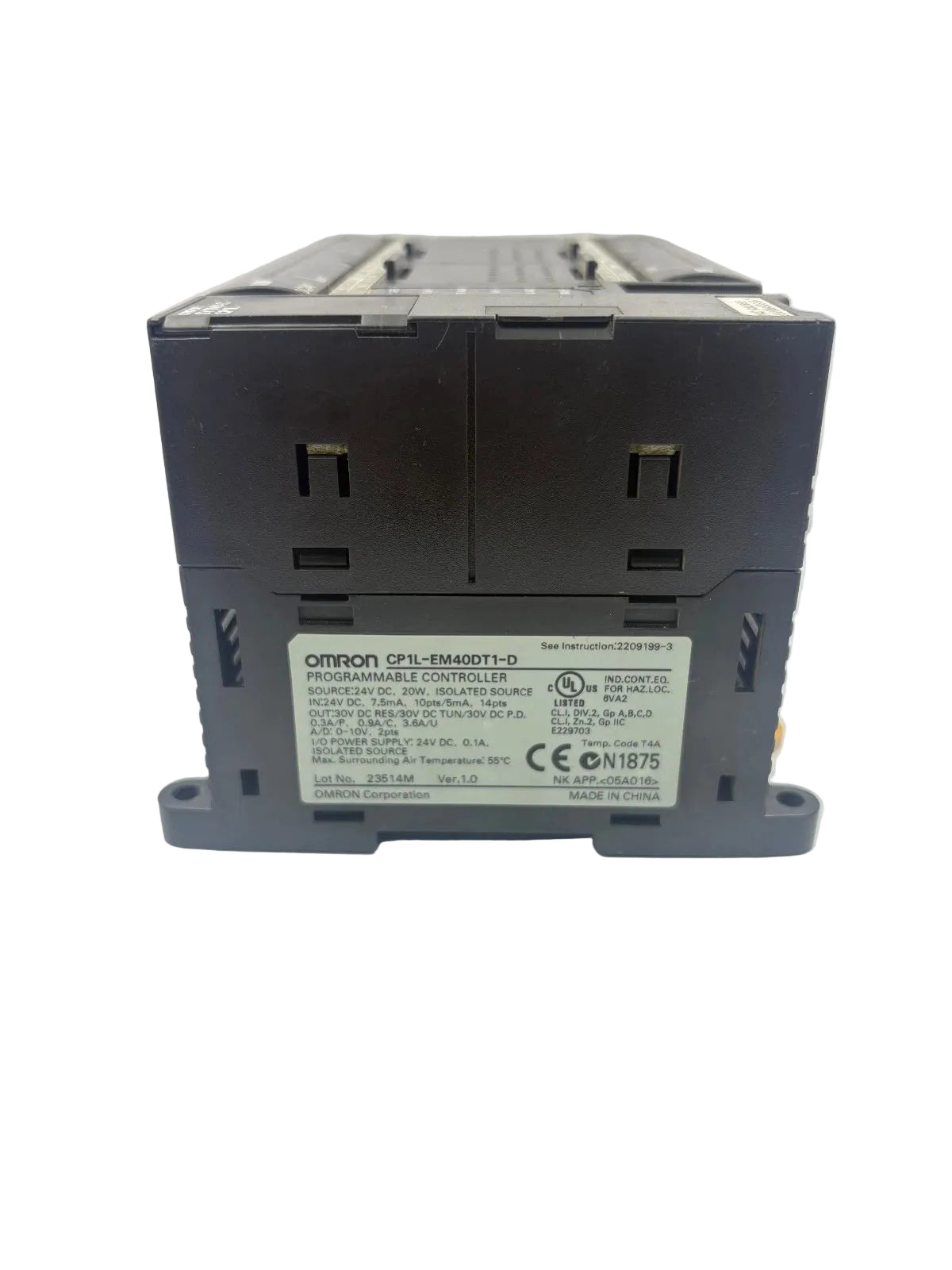

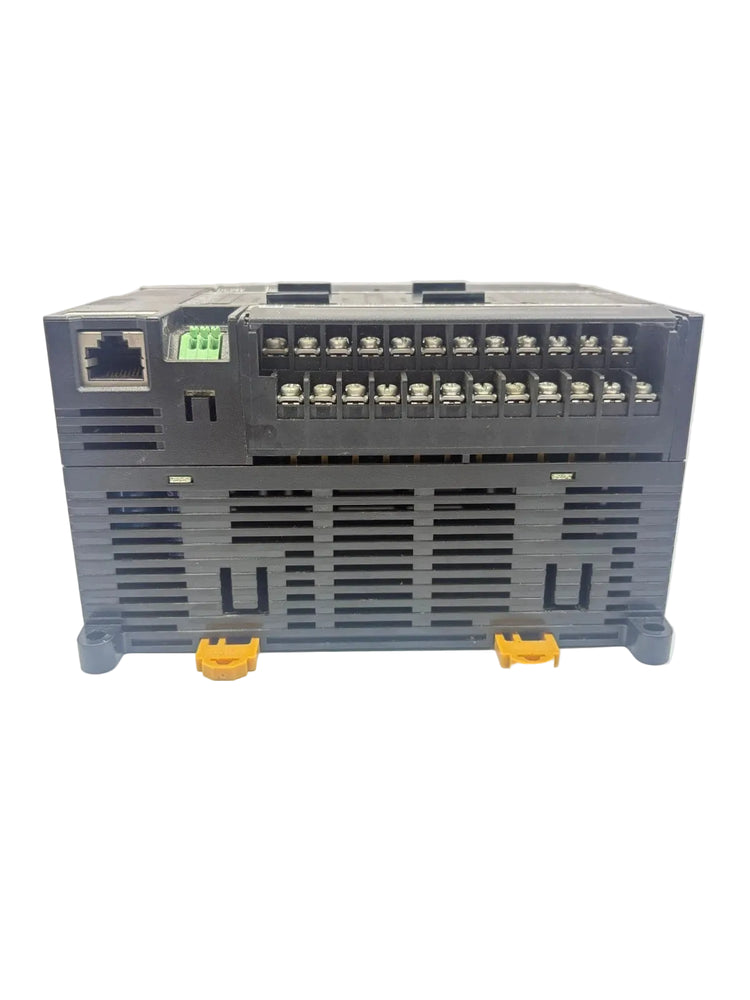

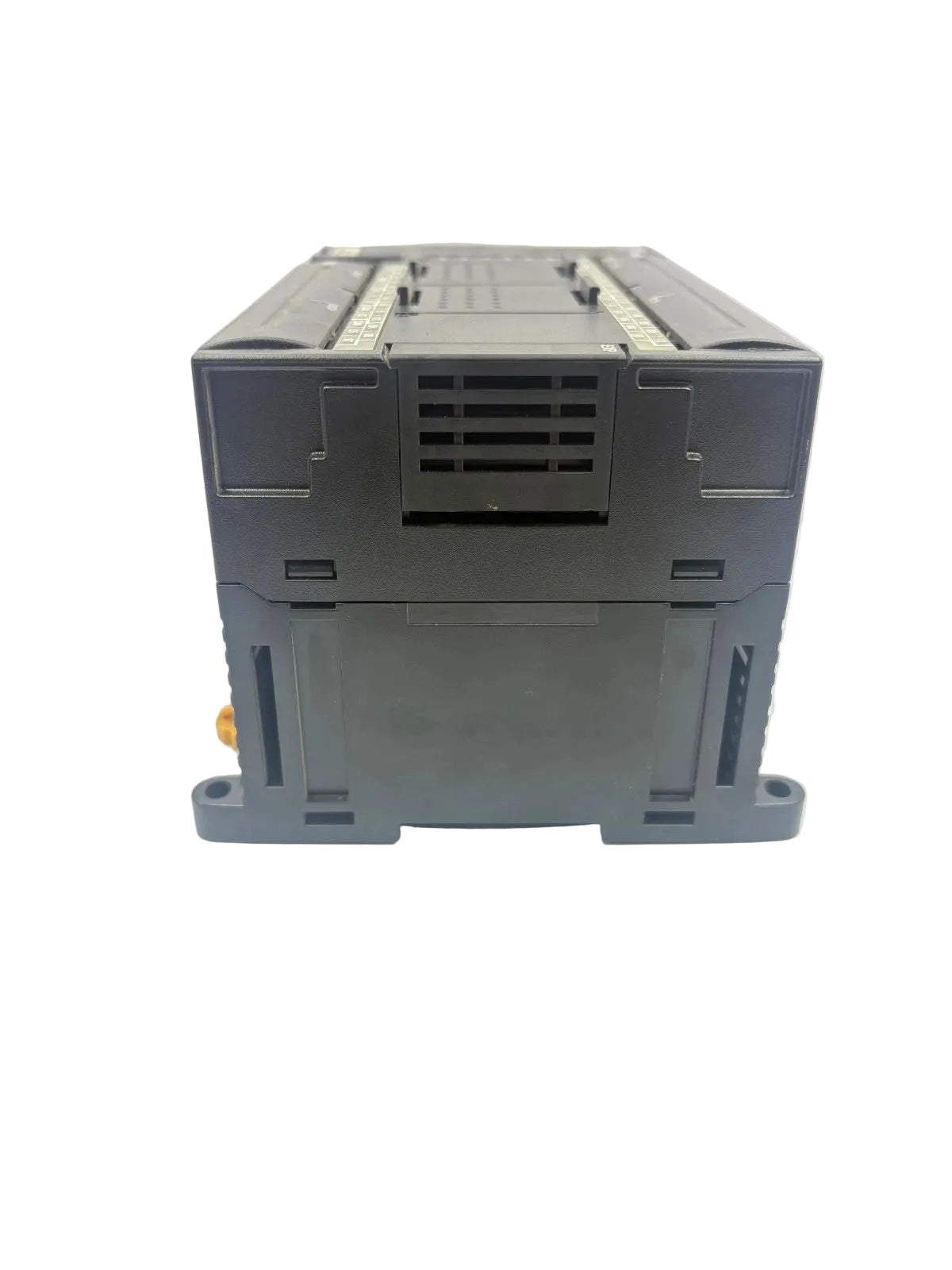

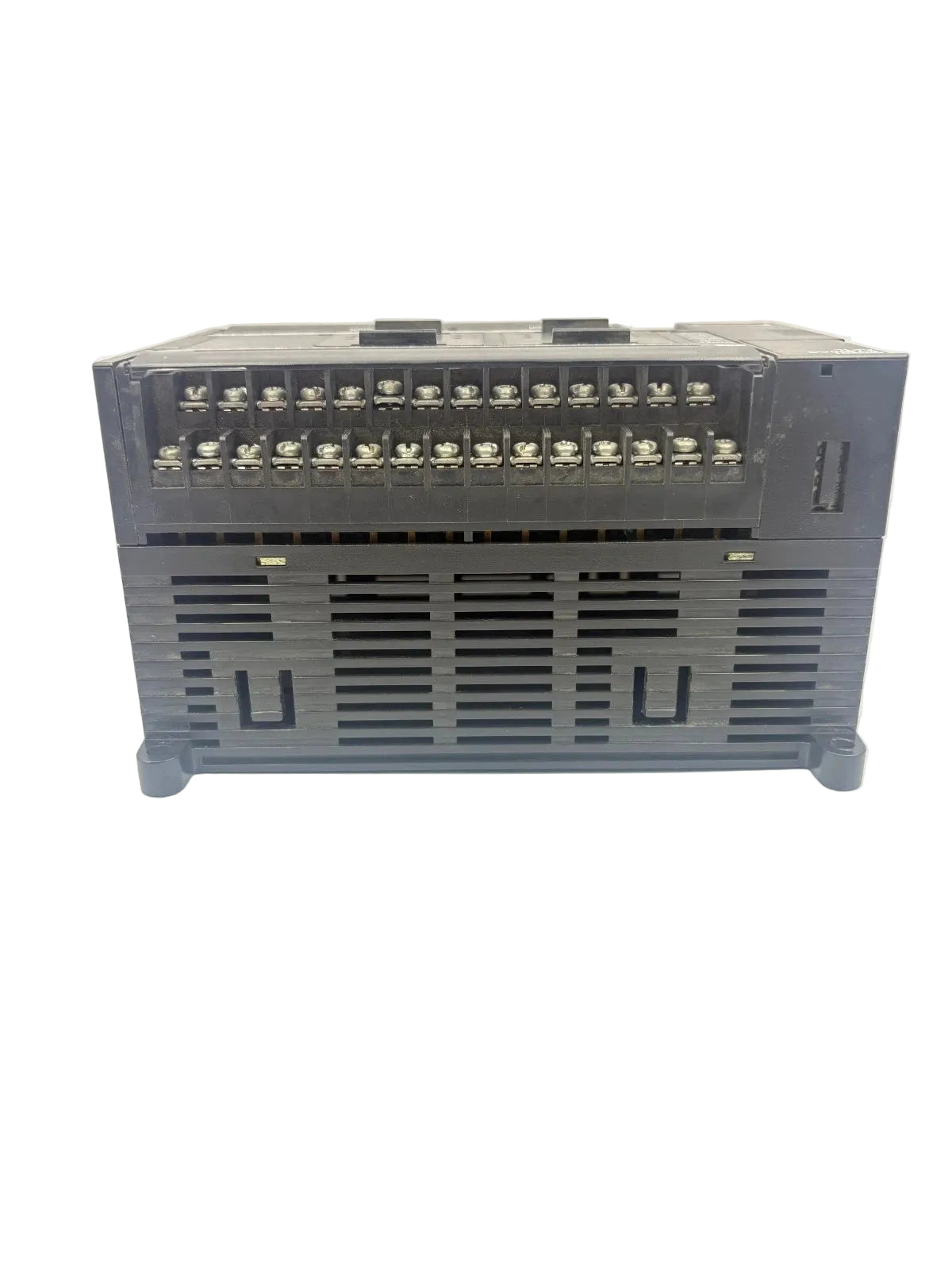

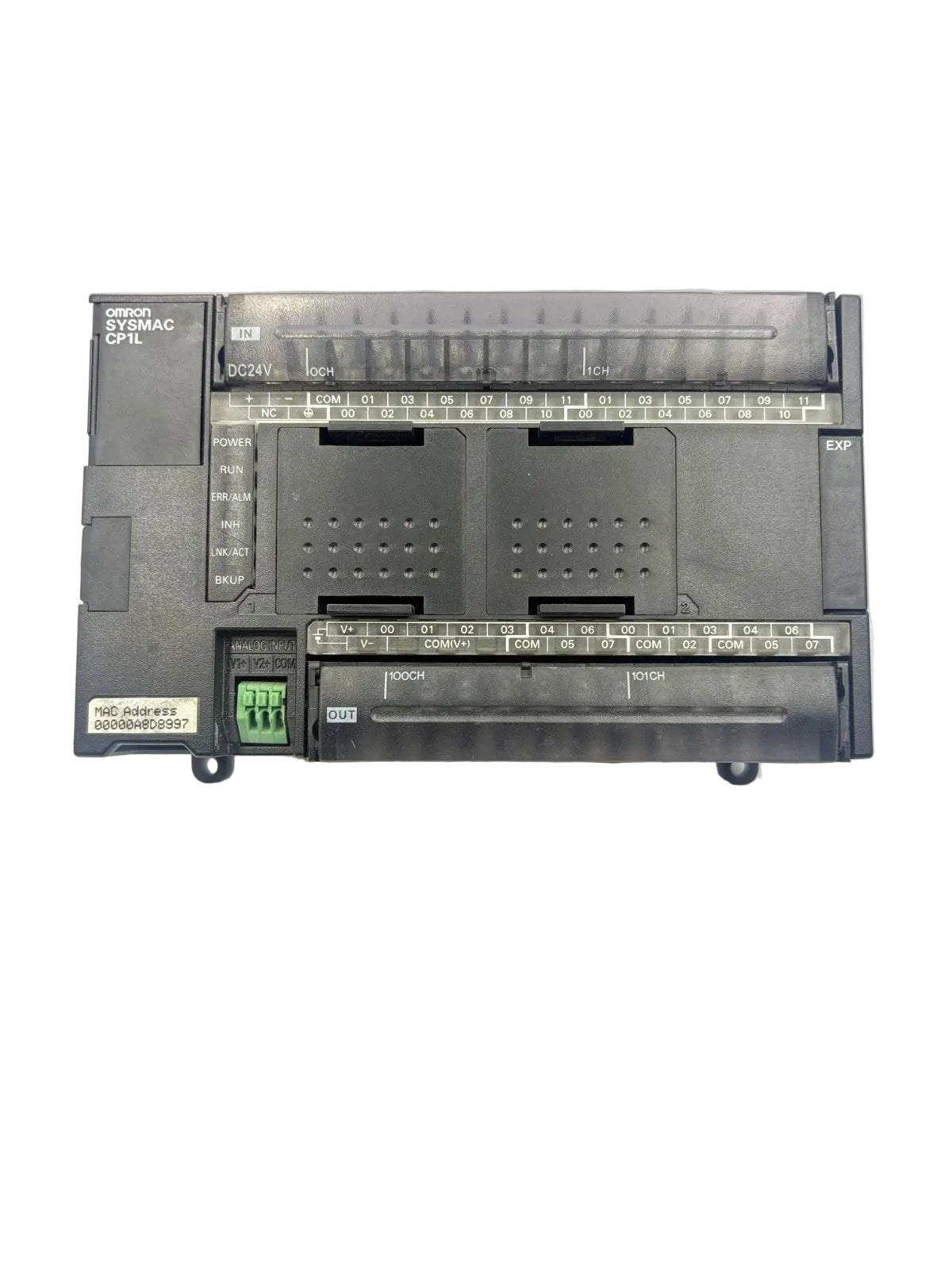

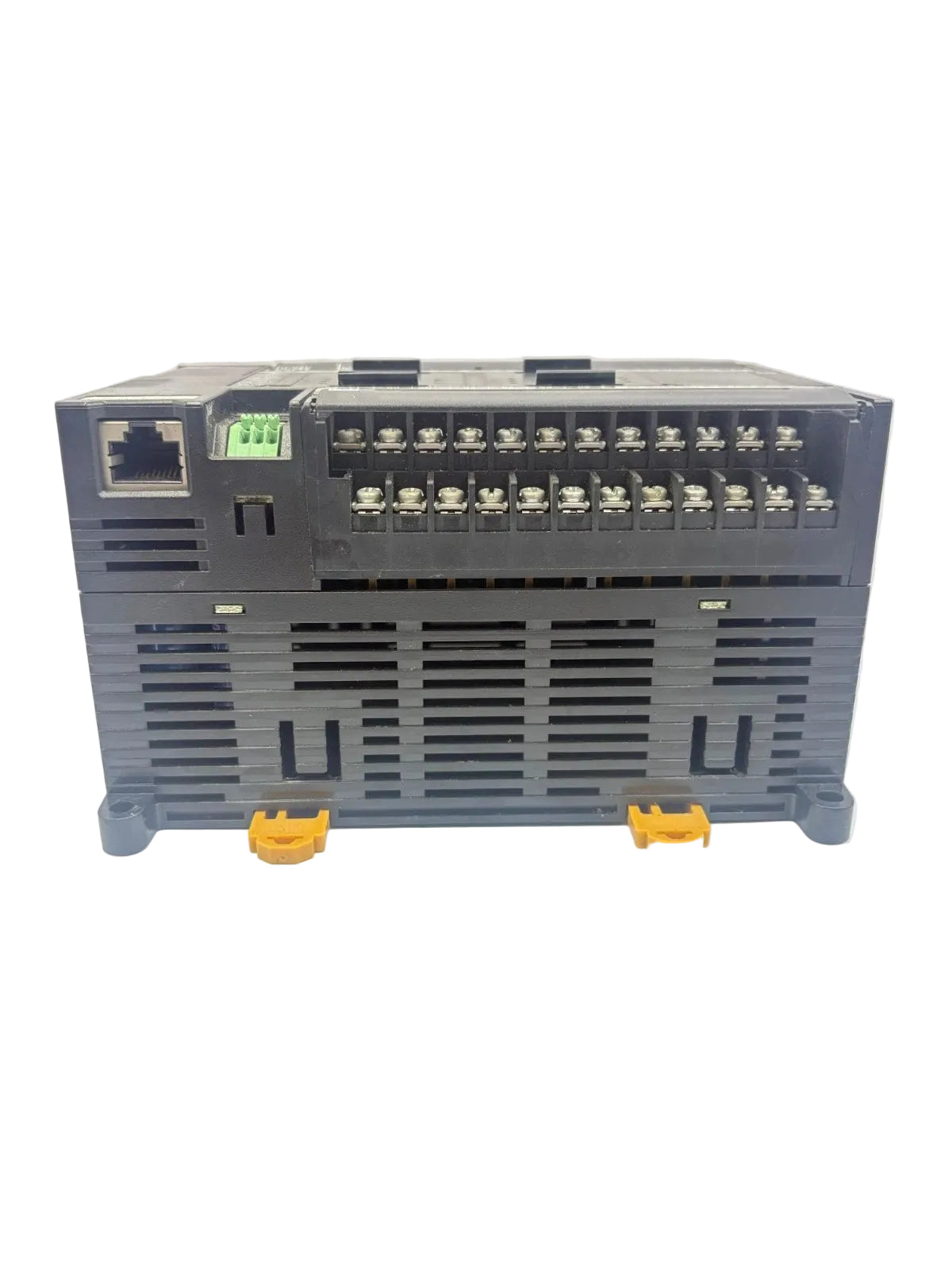

CP1L-EM40DT1-D | Omron CP1 Series PLC CPU 24 Inputs 16 PNP Outputs Ethernet
- Regular price
- $497.00
- Sale price
- $497.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CP1L-EM40DT1-D
Description
The Omron CP1L-EM40DT1-D is a compact PLC CPU unit designed to deliver high-speed control and integrated Ethernet communication in DC-powered automation systems. It combines built-in digital and analog I/O with fast processing performance to support flexible machine control tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | CP1L-EM40DT1-D |
| Subcategory | Programmable Logic Controllers |
| PLC Series | CP1 Series |
| Supply Voltage Type | DC |
| Supply Voltage | 24 VDC |
| Digital Inputs | 24 x 24 VDC |
| Input Type | PNP/NPN |
| Digital Outputs | 16 |
| Output Type | PNP Transistor, 0.3 A |
| Analog Inputs | 2 Built-In |
| Program Capacity | 20 K steps |
| Data Memory Capacity | 32 K words |
| Logic Execution Time | 0.55 µs |
| Communication Port | Ethernet TCP/IP |
| Ethernet Ports | 1 |
| Encoder Input Channels | 4 |
| Max Encoder Input Frequency | 100 kHz |
| Max PTP Axes | 2 |
| Max Pulse Output Frequency | 100 kHz |
| Max Local I/O Points | 160 |
| Max Expansion Units | 3 |
| Operating Temperature Range | 0 to 55 °C |
| Dimensions H x W x D | 90 x 150 x 85 mm |
| Weight | 515 g |
Information About CP1L-EM40DT1-D
The CP1L-EM40DT1-D is part of Omron’s CP1 Series, developed to provide compact yet powerful PLC solutions with integrated networking capabilities. This CPU unit includes built-in Ethernet, enabling direct connection to industrial networks for data exchange, diagnostics, and system integration. It supports a wide range of expansion and communication options, allowing adaptation to evolving automation requirements. Designed for industrial environments, the unit delivers fast execution speed, reliable transistor outputs, and stable operation across an extended temperature range.
Key Features:
- Integrated Ethernet Connectivity: Built-in Ethernet TCP/IP port supports seamless network communication and remote monitoring.
- High-Speed Processing: Logic execution time of 0.55 µs ensures responsive and accurate control.
- Built-In Digital and Analog I/O: Includes 24 DC inputs, 16 PNP transistor outputs, and two analog inputs in a compact CPU.
- Expandable System Architecture: Supports up to three expansion units and a maximum of 160 local I/O points.
- Advanced Motion Support: Provides four encoder input channels and pulse outputs up to 100 kHz for motion-related tasks.
- Flexible Input Wiring: Compatible with both PNP and NPN digital input configurations.
- Industrial-Grade Design: Engineered for continuous operation in environments up to 55 °C.
The CP1L-EM40DT1-D delivers the reliability and precision required for Ethernet-enabled PLC control in compact industrial automation systems.
