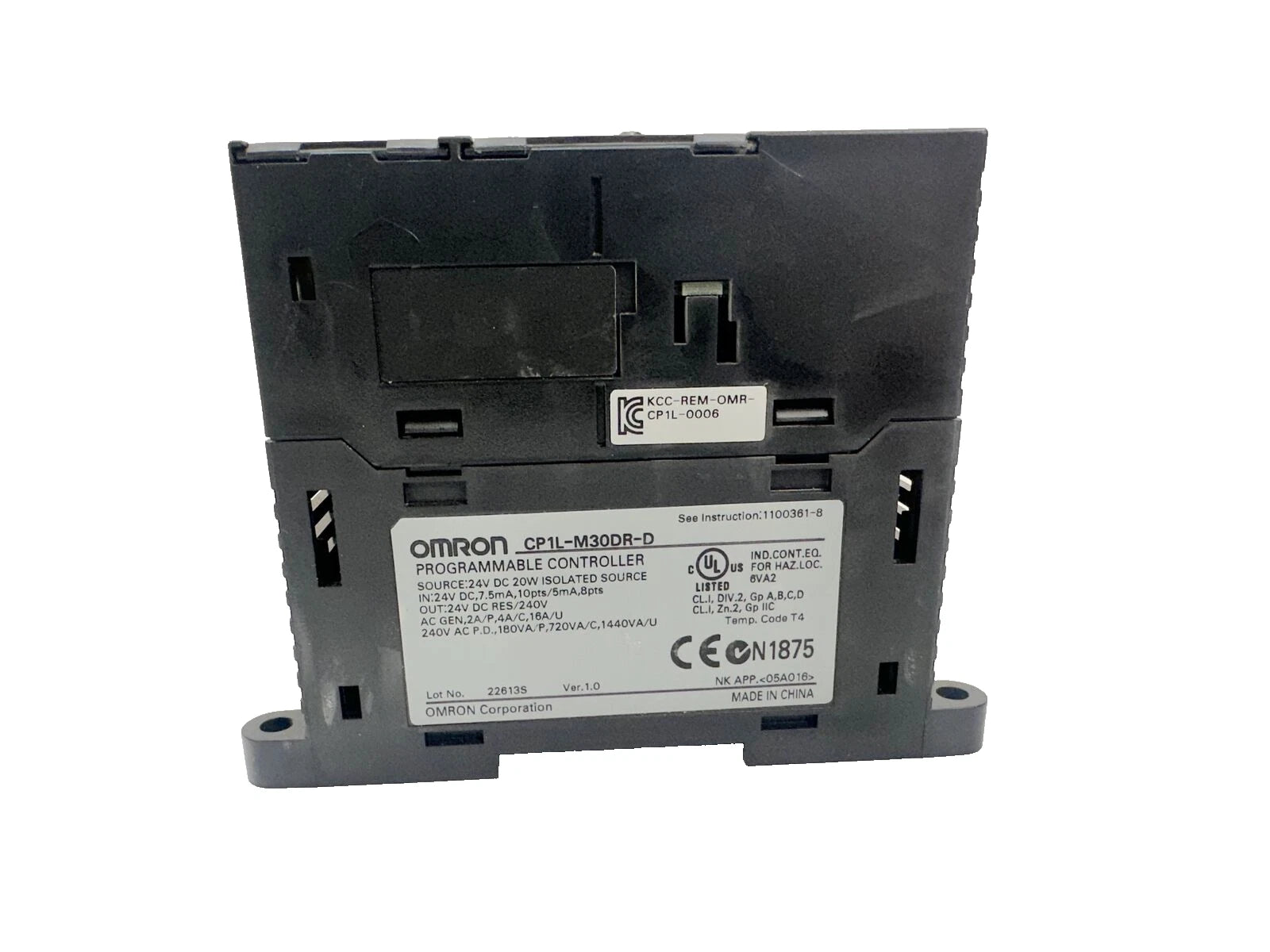

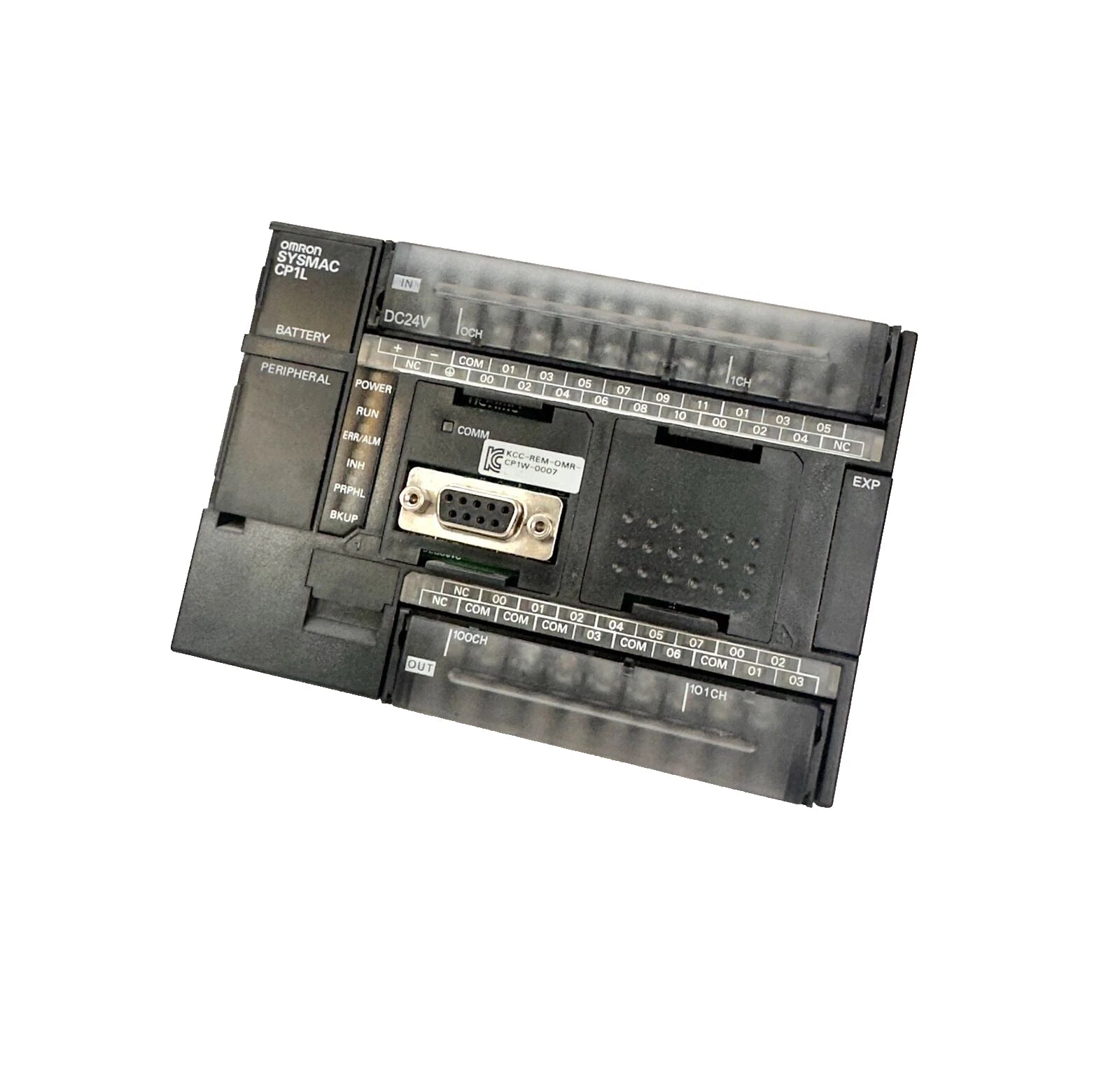

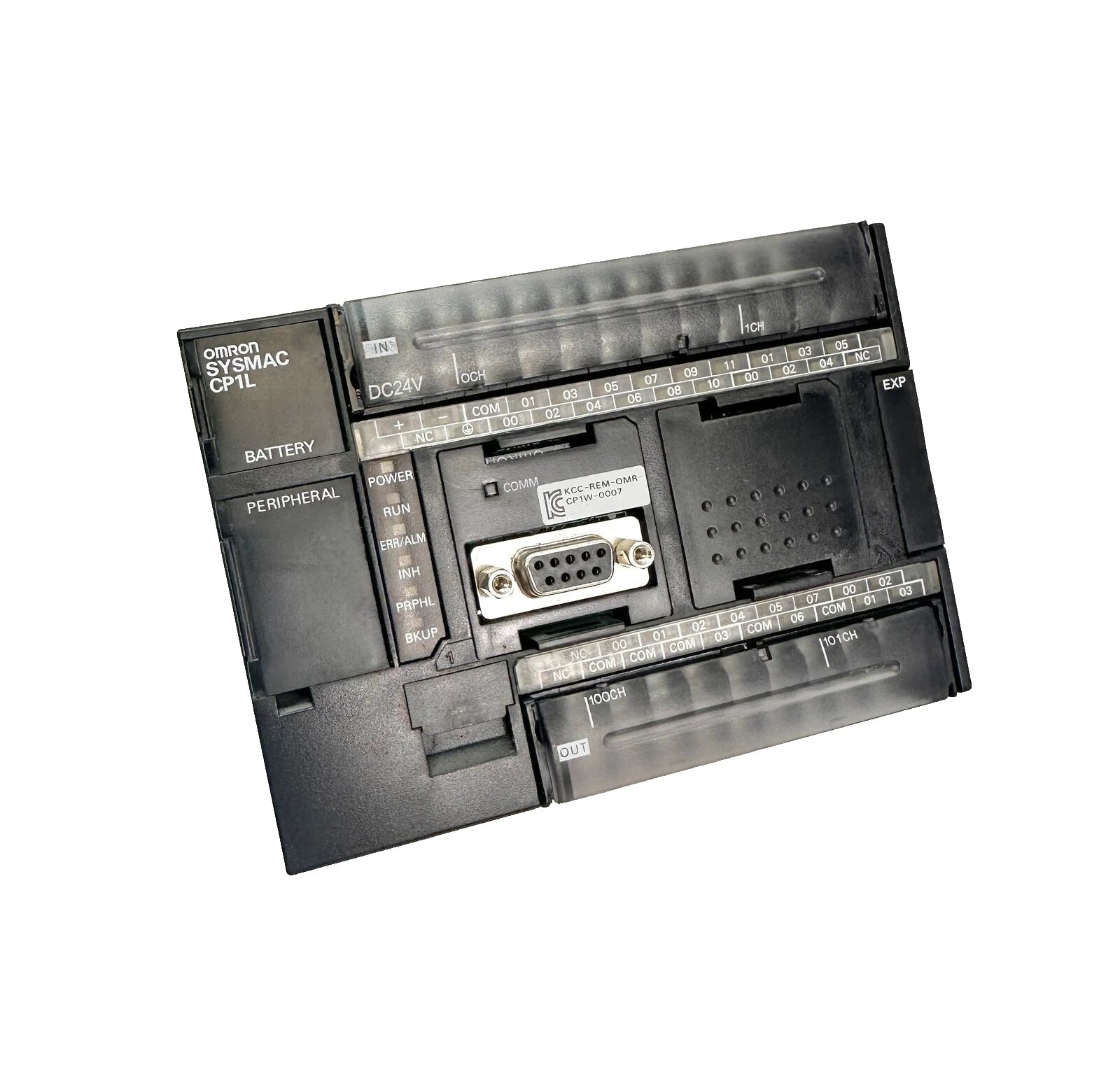

CP1L-M30DR-D | Omron Compact PLC CPU Unit With 18 Inputs 12 Relay Outputs USB
- Regular price
- $207.00
- Sale price
- $207.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CP1L-M30DR-D
Description
The Omron CP1L-M30DR-D is a compact PLC CPU unit designed for reliable control of small to mid-sized automation systems using DC power. It integrates digital I/O, fast processing performance, and USB connectivity to support efficient machine control and programming.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | CP1L-M30DR-D |
| Subcategory | Programmable Logic Controllers |
| Supply Voltage Type | DC |
| Supply Voltage | 24 VDC |
| Digital Inputs | 18 x 24 VDC |
| Input Type | PNP/NPN |
| Digital Outputs | 12 |
| Output Type | Relay, 2 A |
| Program Capacity | 10 K steps |
| Data Memory Capacity | 32 K words |
| Logic Execution Time | 0.55 µs |
| Communication Port | USB |
| Ethernet Ports | 0 |
| Encoder Input Channels | 4 |
| Max Encoder Input Frequency | 100 kHz |
| Max Local I/O Points | 150 |
| Max Expansion Units | 3 |
| Operating Temperature Range | 0 to 55 °C |
| Dimensions H x W x D | 90 x 130 x 85 mm |
| Weight | 525 g |
Information About CP1L-M30DR-D
The CP1L-M30DR-D is part of Omron’s CP1L series, developed to deliver compact yet capable PLC solutions for space-constrained control panels. This CPU unit combines built-in digital I/O with expandable architecture, allowing connection of additional I/O and communication units as system requirements grow. It supports multiple serial communication options through expansion, providing flexibility for integration with HMIs, sensors, and other automation devices. Designed for industrial environments, the unit offers fast logic execution, reliable relay outputs, and stable operation across a wide temperature range.
Key Features:
- Integrated Digital I/O: Provides 18 DC inputs and 12 relay outputs within a single compact CPU unit.
- High-Speed Processing: Logic execution time of 0.55 µs supports responsive and precise control tasks.
- Expandable Architecture: Supports up to three expansion units and a maximum of 150 local I/O points.
- Encoder Support: Includes four built-in high-speed encoder input channels up to 100 kHz.
- USB Connectivity: Built-in USB port enables direct programming and diagnostics without additional hardware.
- Flexible Input Types: Supports both PNP and NPN input wiring configurations.
- Industrial Reliability: Engineered for continuous operation in environments up to 55 °C.
The CP1L-M30DR-D delivers the reliability and precision required for compact PLC-based automation and machine control systems.
